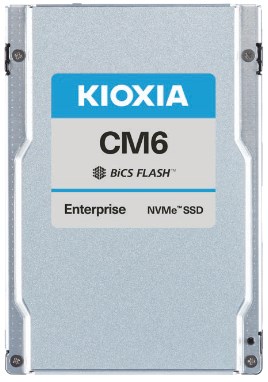

Kioxia CM6-R 2.5" 1.92 TB PCI Express 4.0 BiCS FLASH TLC NVMe
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Related Products
Reviews
Description
Product Features:
- PCIe 4.0, NVMe 1.4 specification compliant
- Form factor: 2.5-inch, 15 mm Z-height
- Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ 96-layer 3D TLC memory
- SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes
- Dual-port design for high availability applications
- 6th generation, two-die failure recovery and double parity protection
- High performance with lower power consumption
- Power loss protection (PLP) and end-to-end data protection
- Suited for 24x7 enterprise workload
- Six power mode settings
- 1.92 TB 2.5" PCI Express 4.0
- Read speed: 6900 MB/s 1300000 IOPS
- Write speed: 2800 MB/s 100000 IOPS
- BiCS FLASH TLC NVMe 1.4
- Hardware encryption FIPS 140-2
- Component for: Server/workstation
Kioxia CM6-R 2.5" 1.92 TB PCI Express 4.0 BiCS FLASH TLC NVMe
KIOXIA Cm6-r 1.92tb Pcie 4.0 Nvme 2.5-inch Read Intensive Fips Sed Enterprise Solid State Drive.
Kioxia CM6-R. SSD capacity: 1.92 TB, SSD form factor: 2.5", Read speed: 6900 MB/s, Write speed: 2800 MB/s, Data transfer rate: 64 Gbit/s, Component for: Server/workstation
Specification
Features
NVMe version
1.4
Security algorithms
FIPS 140-2
SSD form factor
2.5"
SSD capacity
1.92 TB
Interface
PCI Express 4.0
Memory type
BiCS FLASH TLC
NVMe
Component for
Server/workstation
Hardware encryption
Data transfer rate
64 Gbit/s
Read speed
6900 MB/s
Write speed
2800 MB/s
Random read (4KB)
1300000 IOPS
Random write (4KB)
100000 IOPS
End-to-End Data Protection
Mean time between failures (MTBF)
2500000 h
Power
Operating voltage
12 V
Power consumption (max)
16 W
Power consumption (average)
5 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Operating vibration
2.17 G
Operating shock
1000 G
Weight & dimensions
Width
69.8 mm
Depth
100.5 mm
Height
15 mm
Weight
130 g
