Synology FS6420 FlashStation 24-Bay High-performance All-Flash Rackmount NAS
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Reviews
Description

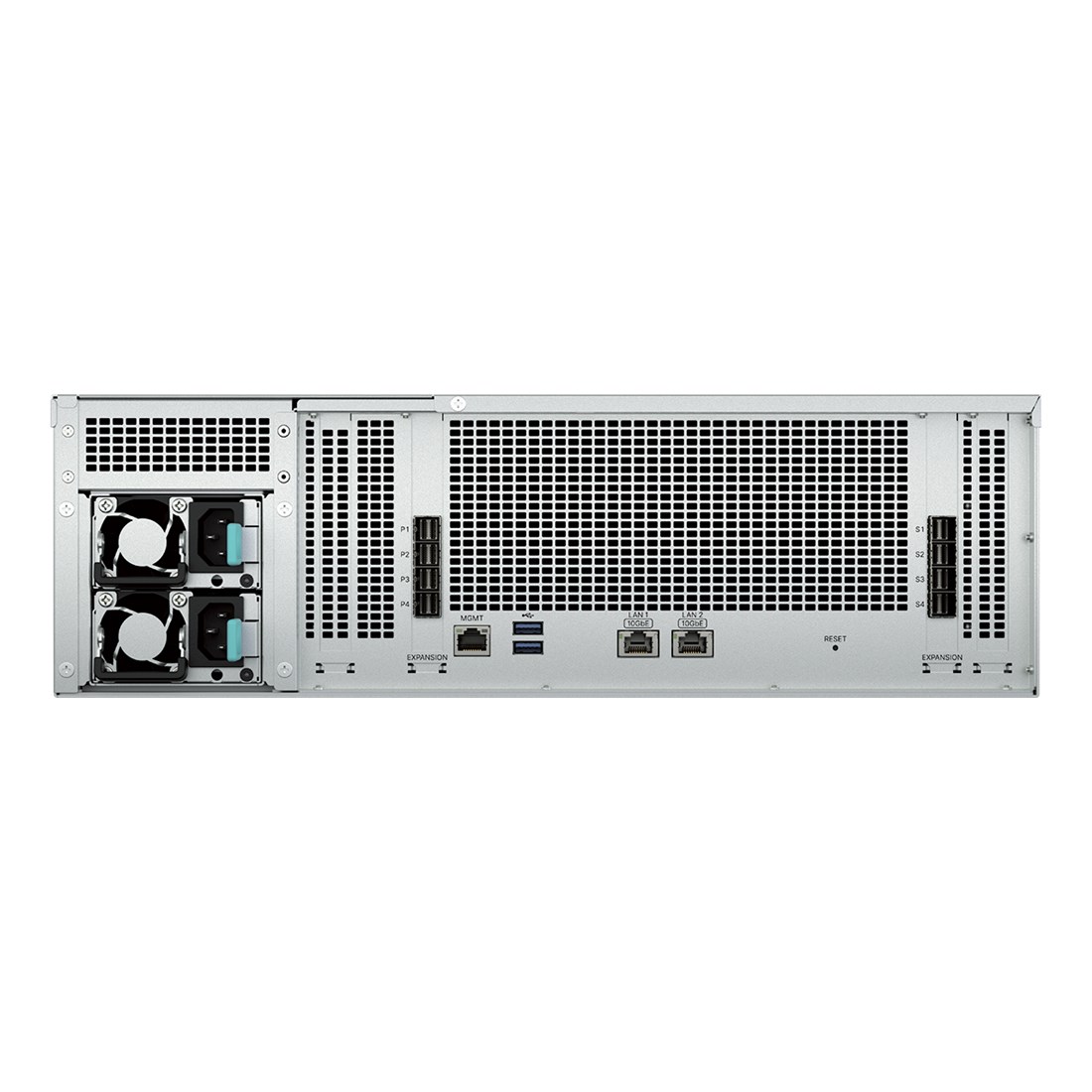

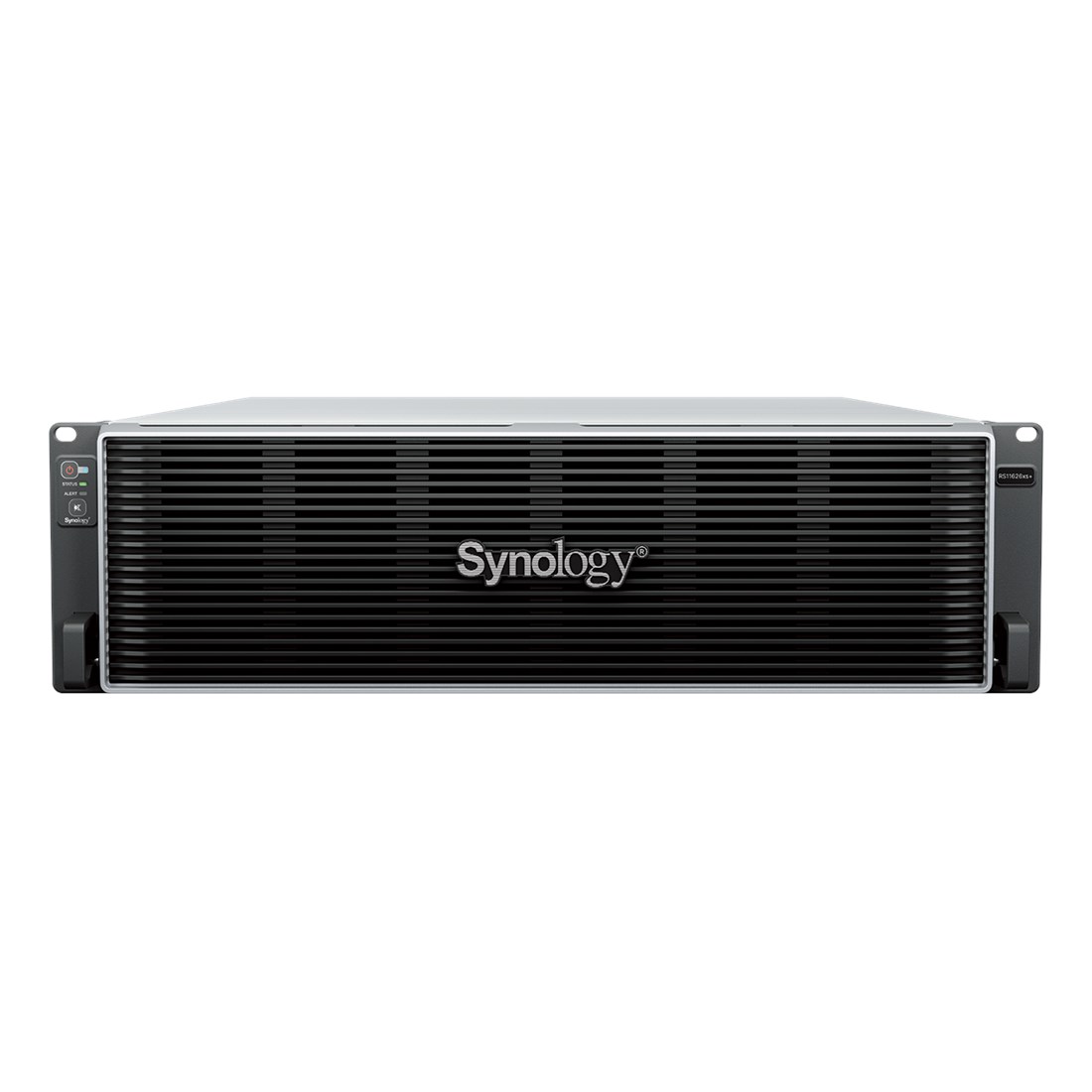

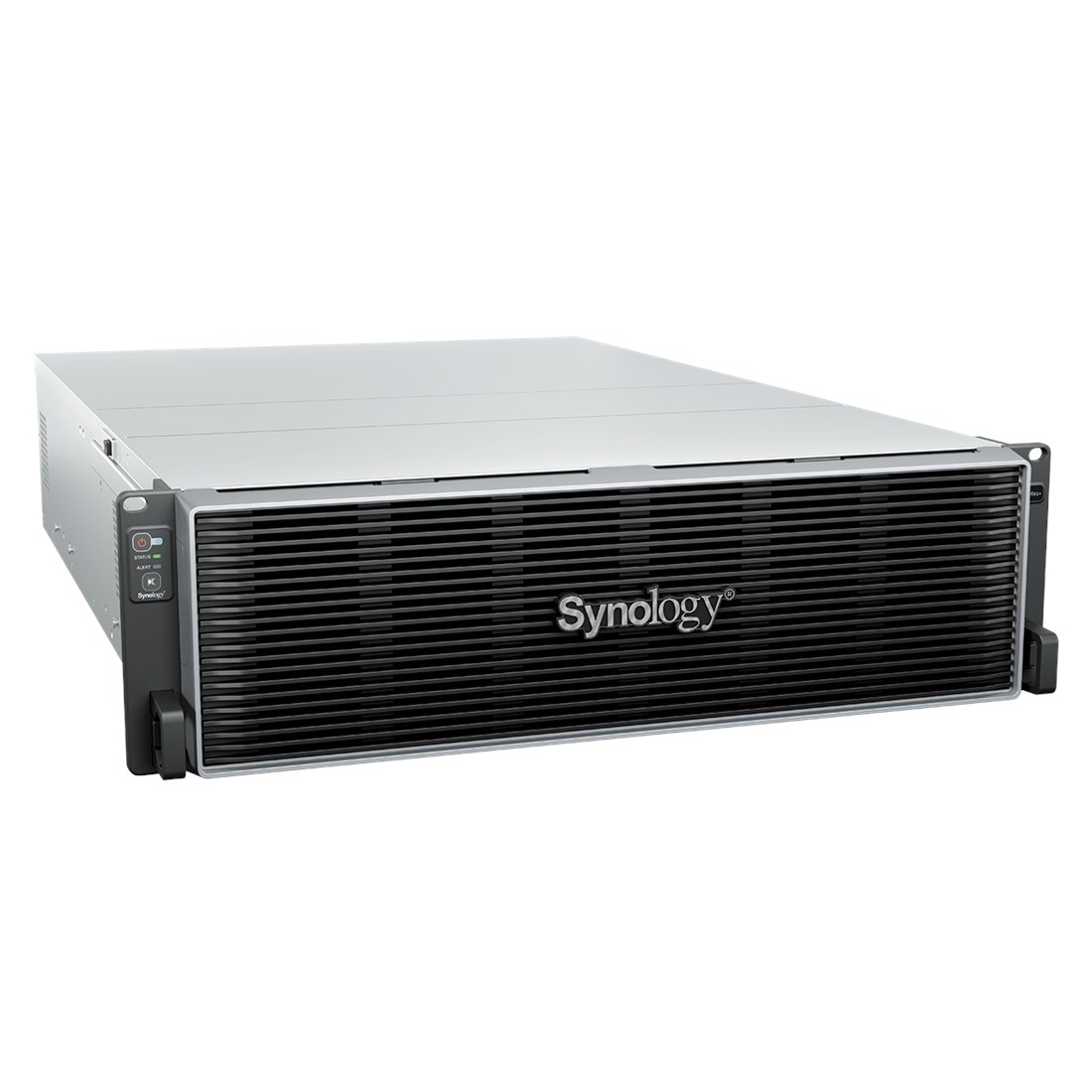

Synology FS6420 FlashStation 24-Bay High-performance All-Flash Rackmount NAS
SYNOLOGY FS6420 The SYNOLOGY Flashstation FS6420 Is A 2u 24-bay All-flash Storage System Designed For I/o-intensive, Latency-sensitive Workloads. It Offers Comprehensive Availability Safeguards, Making It Ideal For Applications Requiring Critical Uptime. Powered By SYNOLOGY Dsm, The FS6420 Provides Reliable, Easy-to-setup Backup, File Sharing, Synchronization, And Virtualization Solutions.
Specification
cpu
Cpu Model
Amd Epyc 7303
Cpu Quantity
1
Cpu Cores
16
Cpu Threads
32
Cpu Architecture
64-bit
Cpu Frequency
2.4 (base) / 3.4 (turbo) Ghz
Hardware Encryption Engine
memory
System Memory
64 Gb Ddr4 Ecc Rdimm
Memory Module Pre-installed
64 Gb (64 Gb X 1)
Total Memory Slots
16
Maximum Memory Capacity
1024 Gb (64 Gb X 16)
storage
Drive Bays
24 X 2.5 Sata Ssd
Hot Swappable Drive
external Ports
Rj-45 10gbe Lan Port
2
Out-of-band Management Lan Port
1
Usb 3.2 Gen 1 Port
2
pcie
Pcie Expansion
2 X Gen4 X16 Slot (x16 Link)
appearance
Form Factor (ru)
2u
Size (height X Width X Depth)
88 Mm X 482 Mm X 724 Mm
Weight
15.5 Kg
Rack Installation Support
4-post 19 Rack (SYNOLOGY Rail Kit - Rks-02)
Notes
The Rail Kit Is Sold Separately
others
System Fan
80 Mm X 80 Mm X 4 Pcs
Fan Speed Mode
Easy Replacement System Fan
Power Recovery
Noise Level
53.0 Db(a)
Scheduled Power On / Off
Wake On Lan / Wan
Power Supply Unit / Adapter
550 Watts
Redundant Power Supply
Ac Input Power Voltage
100v To 240v Ac
Power Frequency
50/60 Hz, Single Phase
Power Consumption
164.74 Watts (access)
British Thermal Unit
561.76 Btu/hr (access)
temperature
Operating Temperature
0°c To 35°c (32°f To 95°f)
Storage Temperature
-20°c To 60°c (-5°f To 140°f)
Operating Humidity
8% To 80% Rh
Storage Humidity
5% To 95% Rh
certification
environment
Rohs Compliant
