HPE P83283-005 DL320 Gen11 3508U 2.1GHz 8c 1P 1x16GB-R 8SFF 2x480GB SSD 2x500W PS NA Server
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Reviews
Description

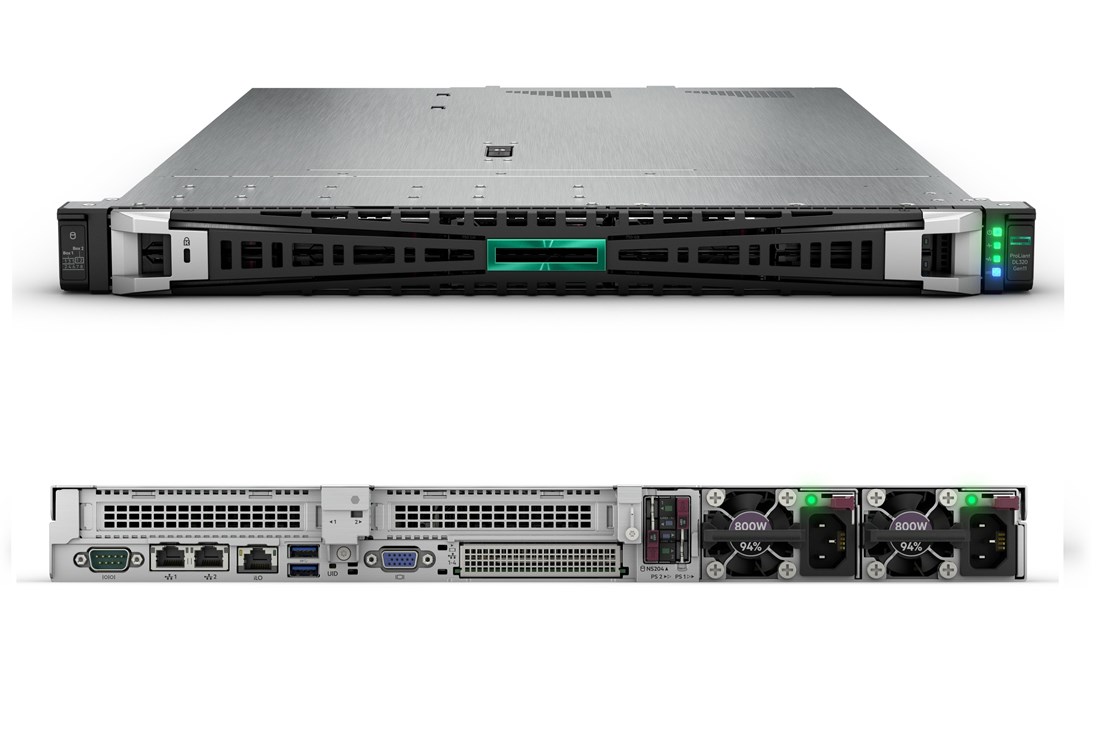

HPE P83283-005 DL320 Gen11 3508U 2.1GHz 8c 1P 1x16GB-R 8SFF 2x480GB SSD 2x500W PS NA Server
HPE P83283-005 Proliant Dl320 Gen11 Smart Choice Model - 5th Gen 1x Intel Xeon 8-core Bronze 3508u / 2.1 Ghz, 16(1x16)gb Ddr5 Sdram, Broadcom Bcm5720 Ethernet 1gb 2-port Base-t Adapter, Intel Vroc Sata For HPE Proliant Gen11, 8sff, 2x HPE 480gb Sata 6g Read Intensive Sff Bc Multi Vendor Ssd, 2x HPE 500w Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit, 1-way 1u Rack Server.
Specification
General Information
Manufaturer
Hewlett Packard Enterprise
Manufaturer Website Address
WWW.HPE.COM
Manufaturer Part Number
P83283-005
Product Form Factor
Rack-mountable - 1u
Height ( Rack Units)
1u
Server Scalability
1-way
Hot-swap Bays Qty
8
Product Name
HPE Proliant Dl320 Gen11 3508u 2.1ghz 8c 1p 1x16gb-r 8sff 2x480gb Ssd 2x500w Ps Na Server ( Smart Choice Model)
Processor / Chipset
Cpu
Intel Xeon Bronze 3508u
Processor Base Frequency
2.1 Ghz
Max Turbo Speed
2.2 Ghz
Number Of Cores
8-core
Cpu Qty
1
Max Cpu Qty
1
Cpu Upgradability
Upgradable
Tdp
125w
Memory Types
Ddr5 4400 Mt/s (1 Dpc &2dpc)
Max Memory Size (dependent On Memory Type)
4 Tb
Processor Main Features
Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket
Lga4677 Socket-e
Chipset Type
Intel C741
Cache Memory
Installed Size
L3 Cache - 22.5 Mb
Cache Per Processor
22.5 Mb
Ram
Installed Size
16 Gb / 2.04 Tb (max)
Technology
Ddr5 Sdram
Effective Memory Speed
4400 Mhz
Rated Memory Speed
5600 Mhz
Form Factor
Dimm 288-pin
Slots
16 (total) / 15 (empty)
Features
Registered, HPE Ddr5 Smart Memory
Configuration Features
1 X 16 Gb
Hdd / Ssd
Hard Drive / Type
Ssd
Hard Drive / Size
2.5
Hard Drive / Interface Type
Sata 6 Gb/s
Hard Drive / Bays Qty
8
Ssd Capacity
480 Gb
Ssd / Installed Qty
2
Total Storage Capacity
960 Gb
Optical Drive
No Optical Drive
Storage Controller
Type
Sata
Controller Interface Type
Sata 6gb/s
Storage Controller Name
Intel Vroc Sata Software Raid
Raid Level
Raid 0, Raid 1, Raid 5, Raid 10
Graphics Controller
Video Memory
16 Mb
Video Interfaces
Vga
Networking
Ethernet Ports
2 X Gigabit Ethernet
Ethernet Controller
Broadcom Bcm5720
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
Snmp 3, Ipmi 2.0
Remote Management Controller
Integrated Lights-out 6
Features
Wake On Lan (wol), Acpi Support, Pxe Support
Miscellaneous
Included Accessories
5x Standard Fans, HPE Easy Install Rail 1 Kit
Compliant Standards
Aes, Fips 140-2, Triple Des, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Redfish Api, Acpi 6.3, Smbios 3.2
Power
Device Type
Power Supply - Hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
Ac 100-120/200-240 V (50/60 Hz)
Power Provided
500 Watt
80 Plus Certification
80 Plus Platinum
Operating System / Software
Os Provided
No Operating System
Os Certified
Suse Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Centos, Vmware Esxi, Oracle Linux, Canonical Ubuntu, Oracle Vm, Citrix
Software
HPE Ilo Standard With Intelligent Provisioning, HPE Oneview Standard (free Download)
Sustainability Information
Energy Star Certified
Energy Star Version
4.0
Environmental Parameters
Min Operating Temperature
50 °f
Max Operating Temperature
95 °f
Humidity Range Operating
8 - 90% Rh (non-condensing)
Dimensions & Weight
Width
17.11 In
Depth
23.82 In
Height
1.69 In
Weight
26.44 Lbs
