HPE P83282-005 DL20 Gen11 6325P 3.5GHz 4c 1P 1x32GB-U 4SFF 2x960GB SSD 2x500W PS NA Server
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Related Products
Reviews
Description

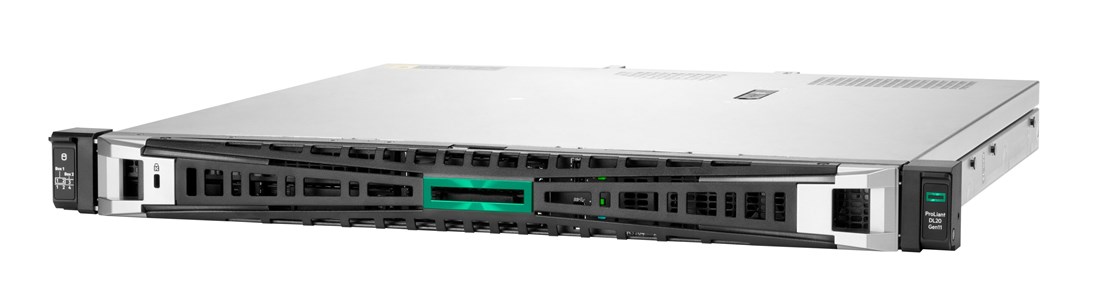

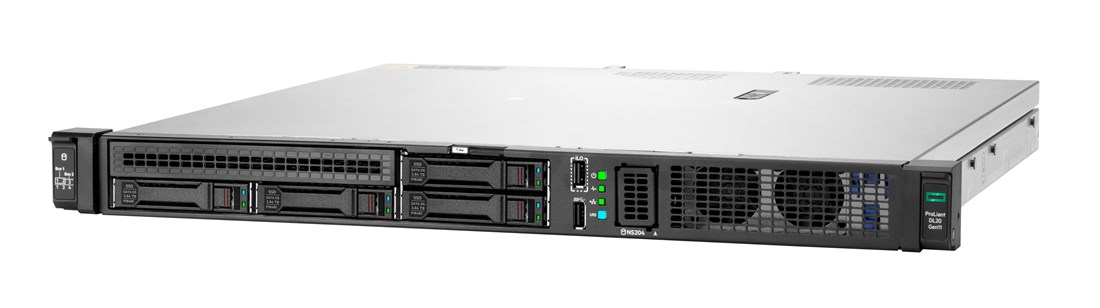

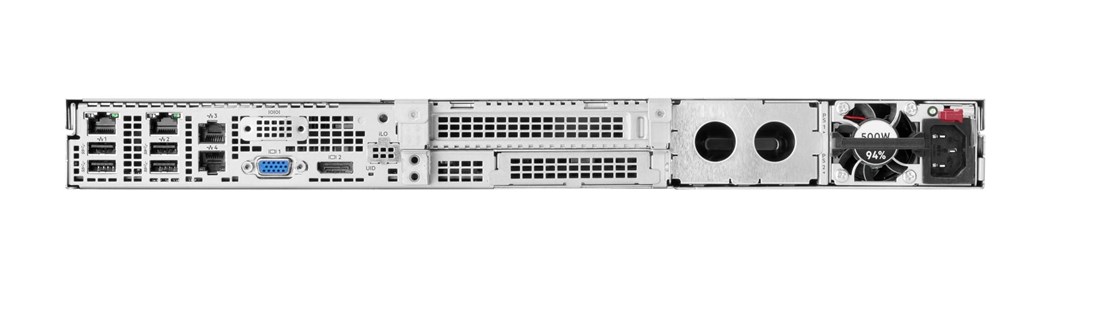

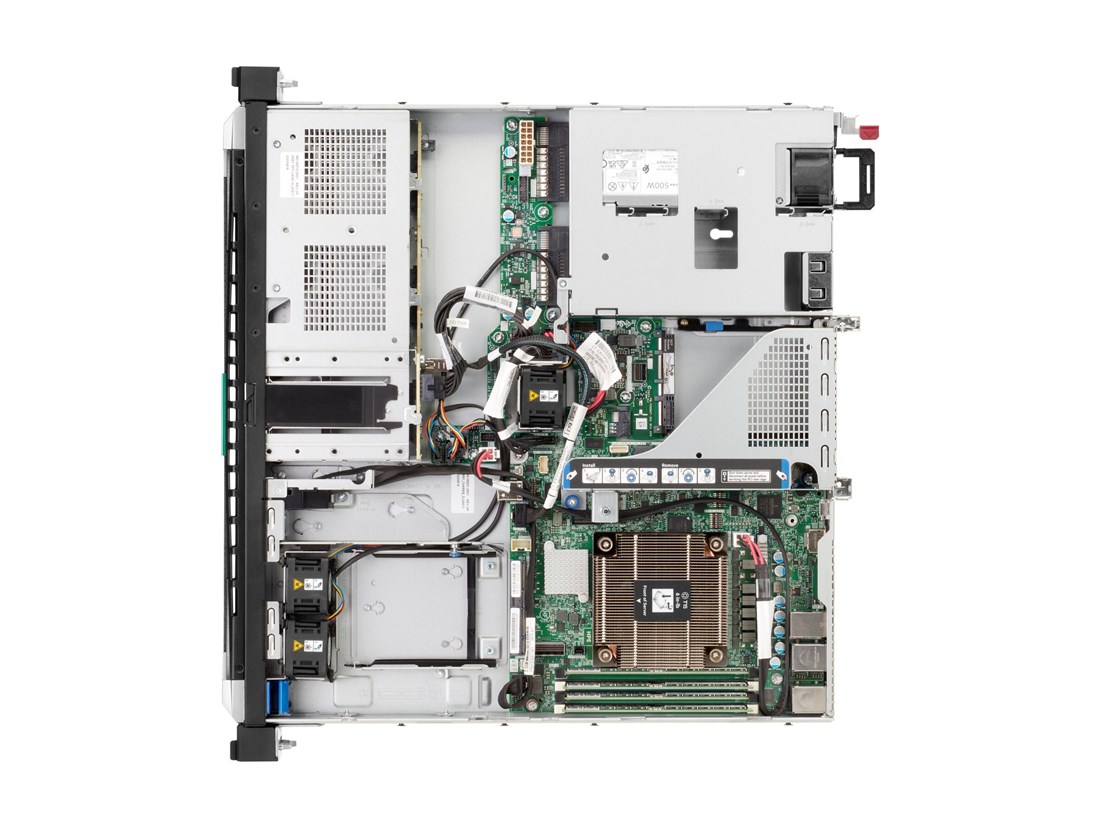

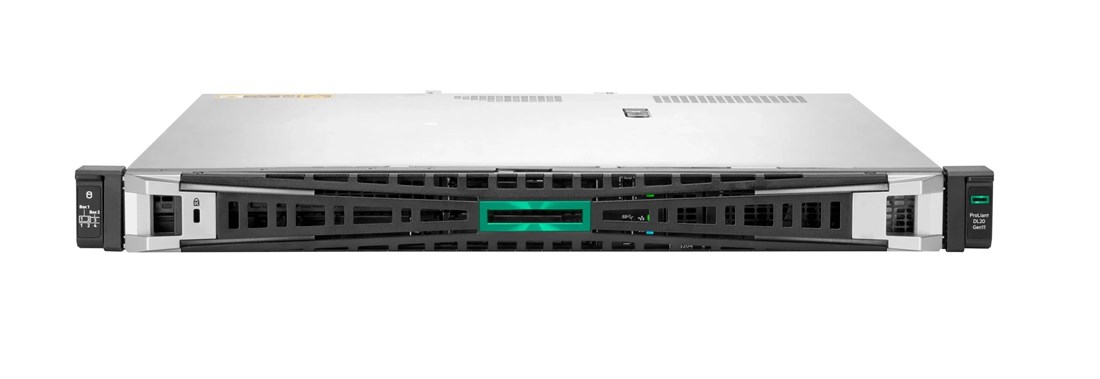

HPE P83282-005 DL20 Gen11 6325P 3.5GHz 4c 1P 1x32GB-U 4SFF 2x960GB SSD 2x500W PS NA Server
HPE P83282-005 Proliant Dl20 Gen11 Smart Choice Model - 1x Intel Xeon Raptor Lake 4-core 6325p / 3.5 Ghz - 32(1x32)gb Ddr5 Sdram Ecc - HPE Emb 1gb 4-port Bcm5719 Network Adapter - Embedded Intel Vroc Sata Controller - 2x HPE 960gb Sata 6g Read Intensive Sff Bc Multi Vendor Ssd - 4sff - 2x HPE 500w Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit - 1-way 1u Rack Server.
Specification
General Information
Manufaturer
Hewlett Packard Enterprise
Manufaturer Website Address
WWW.HPE.COM
Manufaturer Part Number
P83282-005
Type
Server - Rack
Height ( Rack Units)
1u
Server Scalability
1-way
Hot-swap Bays Qty
2
Product Name
HPE Proliant Dl20 Gen11 6325p 3.5ghz 4c 1p 1x32gb-u 4sff 2x960gb Ssd 2x500w Ps Na Server ( Smart Choice Model)
Processor / Chipset
Cpu
Intel Xeon Raptor Lake 6325p
Number Of Cores
4-core
Max Turbo Frequency
5.2 Ghz
Intel Turbo Boost Max Technology 3.0 Frequency
4.8 Ghz
Intel Turbo Boost Technology 2.0 Frequency
5.2 Ghz
Processor Base Frequency
3.5 Ghz
Cpu Qty
1
Max Cpu Qty
1
Bus Speed
16 Gt/s
Tdp
55 W
Max Memory Size (dependent On Memory Type)
128 Gb
Memory Types
Ddr5-4800
Maximum Memory Speed
4800 Mt/s
Cpu Upgradability
Upgradable
Processor Main Features
Intel Turbo Boost Technology 2, Intel Smart Cache
Chipset Type
Intel C262
Cache Memory
Installed Size
L3 Cache - 12 Mb
Cache Per Processor
12 Mb
Ram
Installed Size
32 Gb / 128 Gb (max)
Technology
Ddr5 Udimm - Ecc
Effective Memory Speed
4800 Mhz
Rated Memory Speed
4800 Mhz
Form Factor
Dimm 288-pin
Slots
4 (total) / 3 (empty)
Features
Unbuffered, HPE Standard Memory
Configuration Features
1 X 32 Gb
Hdd / Ssd
Hard Drive / Type
Ssd
Hard Drive / Size
2.5
Hard Drive / Interface Type
Sata 6 Gb/s
Hard Drive / Bays Qty
4
Ssd Capacity
960 Gb
Ssd / Installed Qty
2
Total Storage Capacity
1920 Gb
Optical Drive
No Optical Drive
Storage Controller
Type
1 X Raid
Controller Interface Type
Sata 6gb/s
Channel Qty
6
Raid Level
Raid 0, Raid 1, Raid 5, Raid 10
Graphics Controller
Graphics Processor
Matrox G200
Video Memory
16 Mb
Video Interfaces
Vga, Displayport
Networking
Ethernet Ports
4 X Gigabit Ethernet
Ethernet Controller
Broadcom Bcm5719
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
Snmp 3, Ipmi 2.0
Features
Wake On Lan (wol), Acpi Support, Pxe Support
Miscellaneous
Included Accessories
HPE Easy Install Rail 12 Kit, 3x High Performance Non-hot Plug And Non-redundant Fans
Compliant Standards
Aes, Fips 140-2, Triple Des, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Redfish Api, Acpi 6.3, Smbios 3.2, Active Directory V1.0, Uefi 2.9, Eu Lot 9
Power
Device Type
Power Supply - Hot-plug
Power Redundancy
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
Ac 100-120/200-240 V (50/60 Hz)
Power Provided
500 Watt
80 Plus Certification
80 Plus Platinum
Power Efficiency
94%
Operating System / Software
Os Provided
No Operating System
Os Certified
Microsoft Windows Server 2019, Microsoft Windows Server 2022, Vmware Esxi 8.0 Update 2
Software
HPE Intelligent Provisioning, HPE Ilo Management
Sustainability Information
Energy Star Certified
Energy Star Version
4.0
Environmental Parameters
Min Operating Temperature
50 °f
Max Operating Temperature
95 °f
Humidity Range Operating
8 - 90% Rh (non-condensing)
Sound Emission
22 Dba
Dimensions & Weight
Width
17.11 In
Depth
15.25 In
Height
1.69 In
Weight
19.84 Lbs
