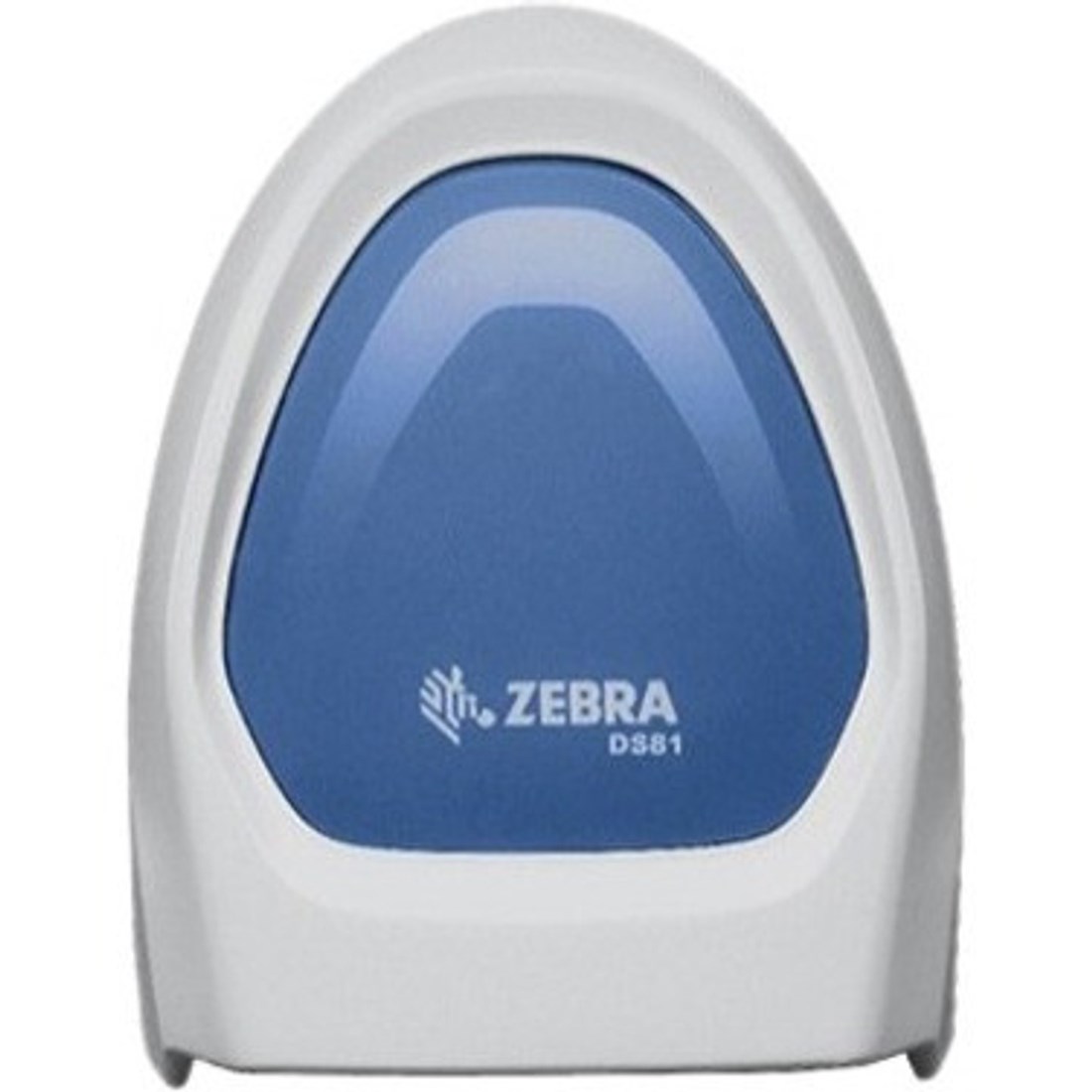

Zebra DS8178-HC Handheld bar code reader 1D/2D LED White
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Reviews
Description
Product Features:
- Handheld bar code reader White
- Scanner type: 1D/2D Sensor type: LED
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Tilt reading angle: 0 - 360°
- Wired & Wireless Standard interfaces: RS-232, USB, Keyboard wedge
- Bluetooth Low Energy (BLE)
- Power source type: Battery Lithium-Ion (Li-Ion) 2500 mAh
Zebra DS8178-HC Handheld bar code reader 1D/2D LED White
ZEBRA DS8178-HCBU210MP5W Handheld Barcode Scanner - Wireless Connectivity - 1d, 2d - Imager - Bluetooth - Healthcare White.
Zebra DS8178-HC. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired & Wireless, Standard interfaces: RS-232, USB, Keyboard wedge, Wireless range: 100 m. Product colour: White, International Protection (IP) code: IP42. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 235 g, Width: 66 mm, Depth: 107 mm
Specification
Scanning
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength
528 nm
Tilt reading angle
0 - 360°
Pitch reading angle
0 - 60°
Yaw reading angle
0 - 60°
Ports & interfaces
Connectivity technology
Wired & Wireless
Standard interfaces
RS-232, USB, Keyboard wedge
Wireless range
100 m
Bluetooth version
4.0
Bluetooth Low Energy (BLE)
PC connection
RS-232/USB
Performance
International Protection (IP) code
IP42
Product colour
White
Power
Power source type
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery type
Built-in battery
Number of batteries supported
1
Battery capacity
2500 mAh
Number of reads per charge
65000
Battery life
83 h
Input voltage
5 V
Weight & dimensions
Width
66 mm
Depth
107 mm
Height
168 mm
Weight
235 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Logistics data
Harmonized System (HS) code
84716070
