Aruba AP-565 (US) 1774 Mbit/s White Power over Ethernet (PoE)
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Reviews
Description
Product Features:
- 2.4 GHz 574 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1774 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
- WPA2, WPA3
- Power over Ethernet (PoE)
- Internal Integrated antenna

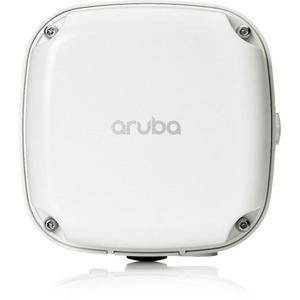

Aruba AP-565 (US) 1774 Mbit/s White Power over Ethernet (PoE)
HPE - Aruba Ap-565 (us) - Wireless Access Point (R4W44A).
Aruba AP-565 (US). Maximum data transfer rate: 1774 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1200 Mbit/s. Security algorithms: WPA2, WPA3. USB connector type: USB Type-C. Power consumption (max): 15.6 W. Placement: Pole, Wall, Product colour: White
Specification
Features
2.4 GHz
5 GHz
Maximum data transfer rate
1774 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Bluetooth
Bluetooth version
5.0
MDI / DMI-X automatic switchover
MIMO
MIMO type
Multi User MIMO
Spread spectrum method
DSSS, OFDM, OFDMA
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Security
Security algorithms
WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB connector type
USB Type-C
Power
Power over Ethernet (PoE)
Power consumption (max)
15.6 W
Design
Placement
Pole, Wall
Product colour
White
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Antenna gain level (max)
5.4 dBi
Weight & dimensions
Width
165 mm
Depth
165 mm
Height
110 mm
Weight
1.03 kg
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating altitude
0 - 3000 m
