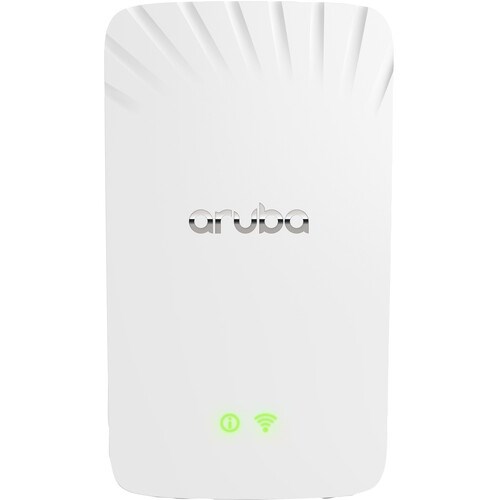

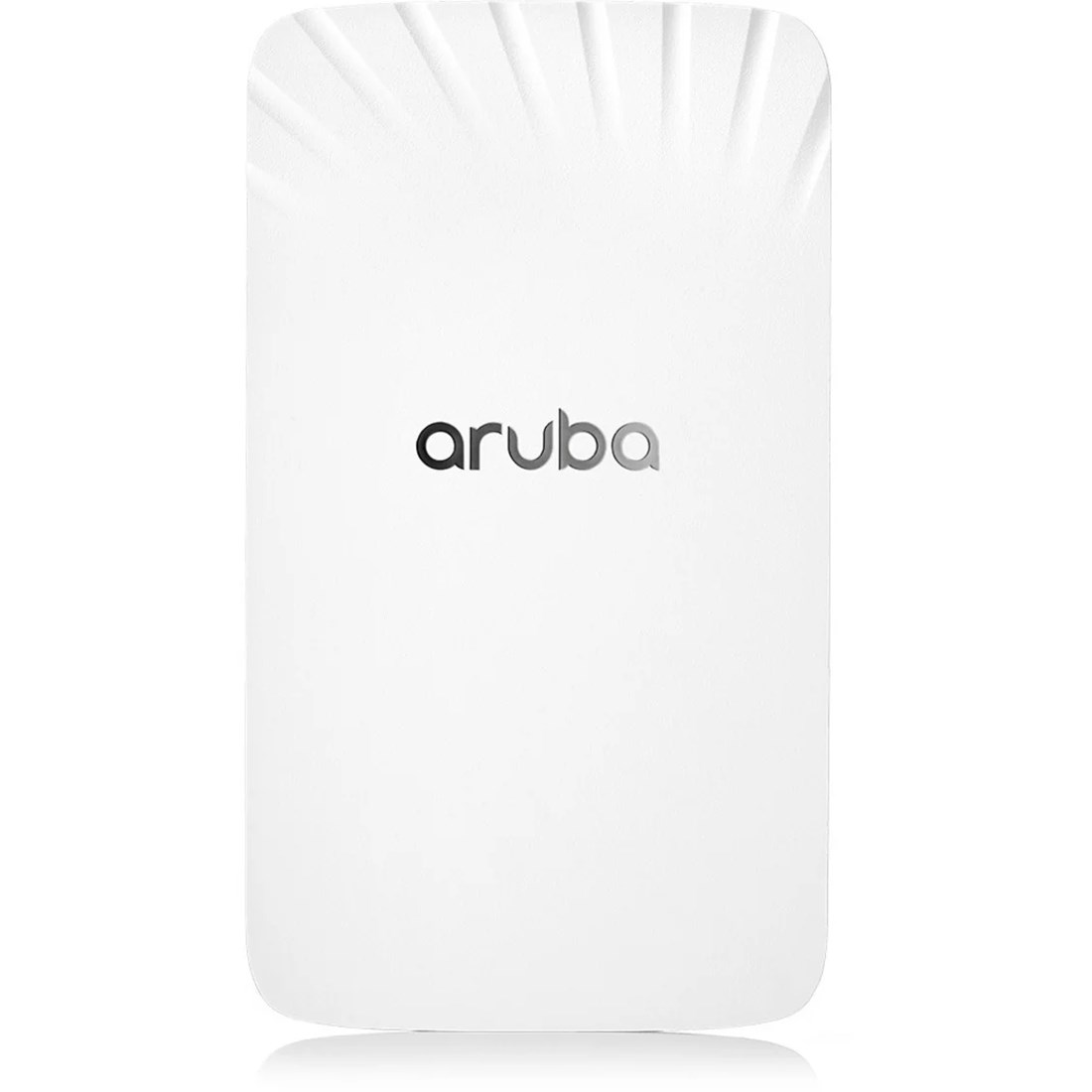

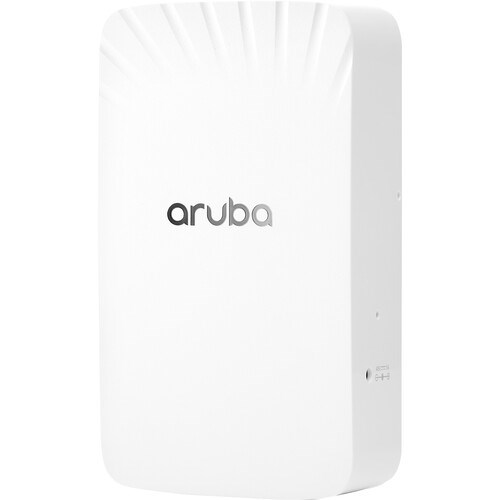

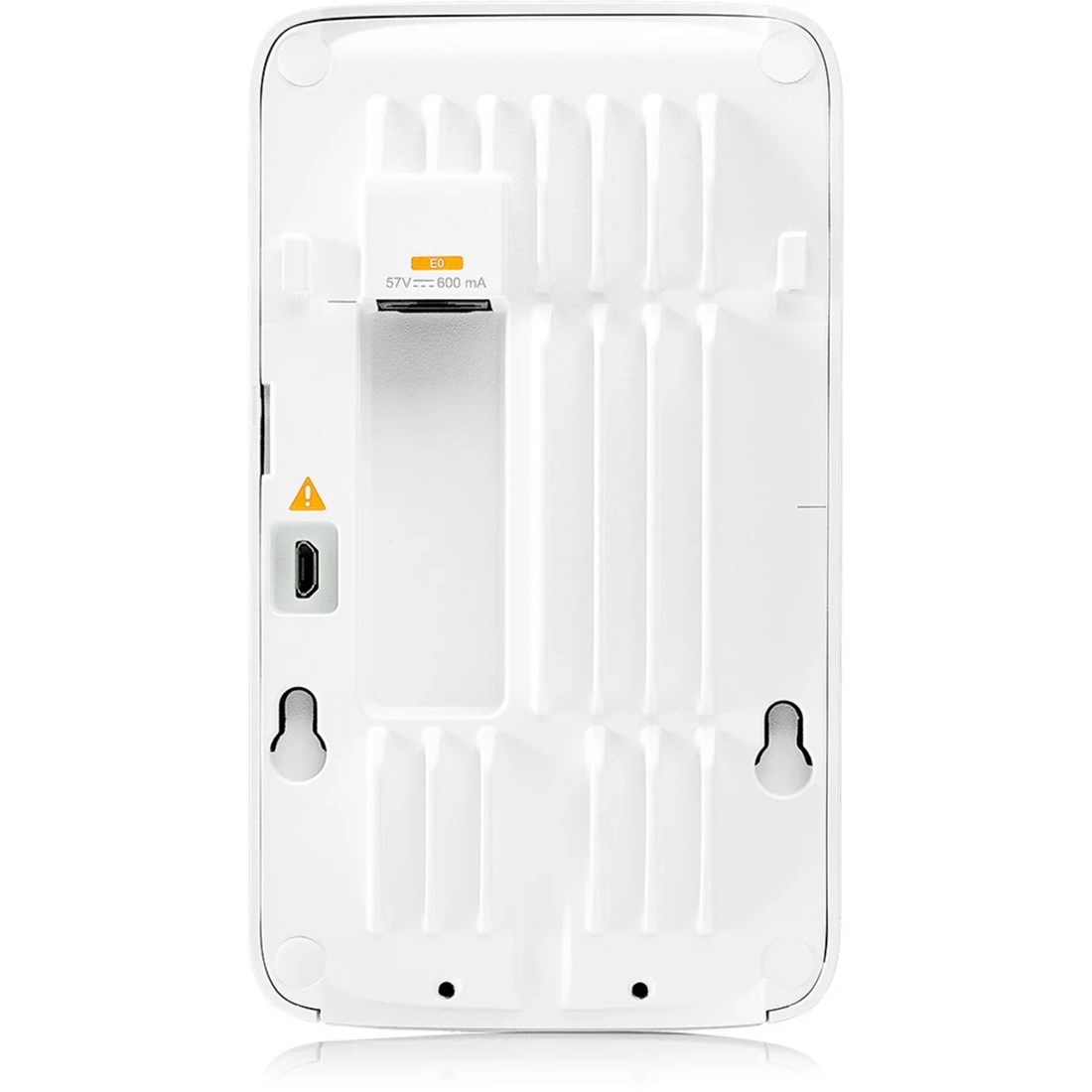

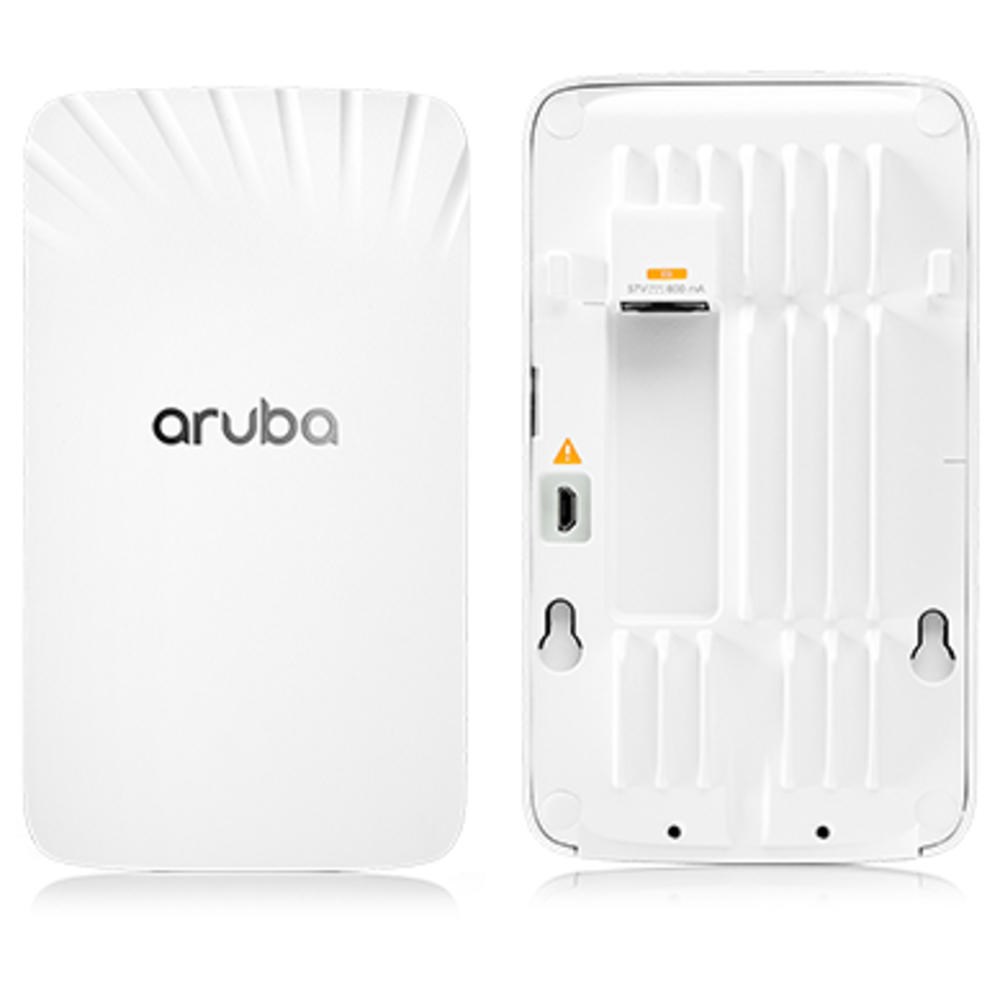

Aruba AP-505H (US) 1487 Mbit/s White Power over Ethernet (PoE)
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Reviews
Description
Product Features:
- 2.4 GHz 287 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1487 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
- WPA, WPA2, WPA3
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
Aruba AP-505H (US) 1487 Mbit/s White Power over Ethernet (PoE)
HPE R3V48A Aruba Ap-505h (us) Dual-radio 802.11ax 2x2 Unified Hospitality Ap With 1+4 Ethernet Pse, Usb. Networking :
Aruba AP-505H (US). Maximum data transfer rate: 1487 Mbit/s, Maximum data transfer rate (2.4 GHz): 287 Mbit/s, Maximum data transfer rate (5 GHz): 1200 Mbit/s. Security algorithms: WPA, WPA2, WPA3. USB connector type: USB Type-A. Power consumption (max): 50 W. Placement: Table, Wall, Product colour: White
Specification
Features
2.4 GHz
5 GHz
Maximum data transfer rate
1487 Mbit/s
Maximum data transfer rate (2.4 GHz)
287 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Bluetooth
Bluetooth version
5.0
Auto MDI/MDI-X
MIMO
MIMO type
Multi User MIMO
Spread spectrum method
DSSS, OFDM, OFDMA
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Security
Security algorithms
WPA, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
5
USB 2.0 ports quantity
1
USB connector type
USB Type-A
Power
Power over Ethernet (PoE)
Power consumption (max)
50 W
Design
Placement
Table, Wall
Product colour
White
Antenna
Antenna type
Internal
Antenna direction type
Semi-directional
Antenna features
Integrated antenna
Antennas quantity
2
Antenna gain level (max)
5.4 dBi
Weight & dimensions
Width
86 mm
Depth
47 mm
Height
150 mm
Weight
360 g
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
