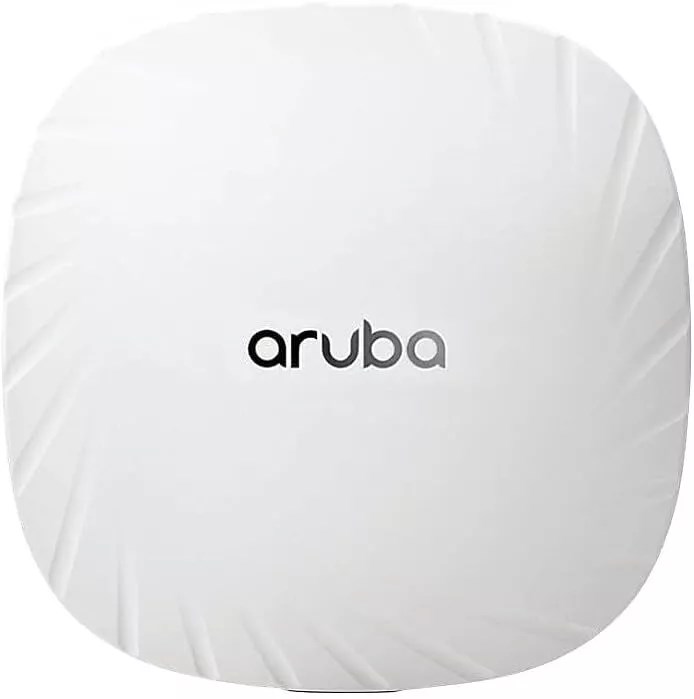

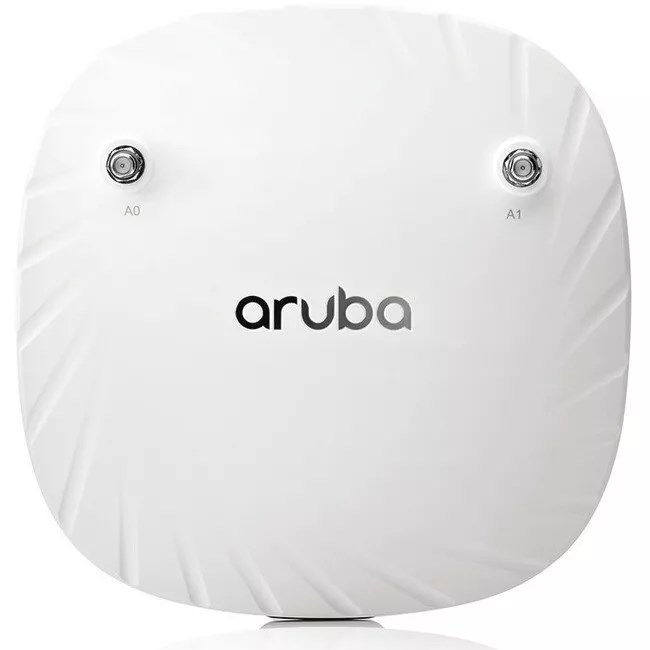

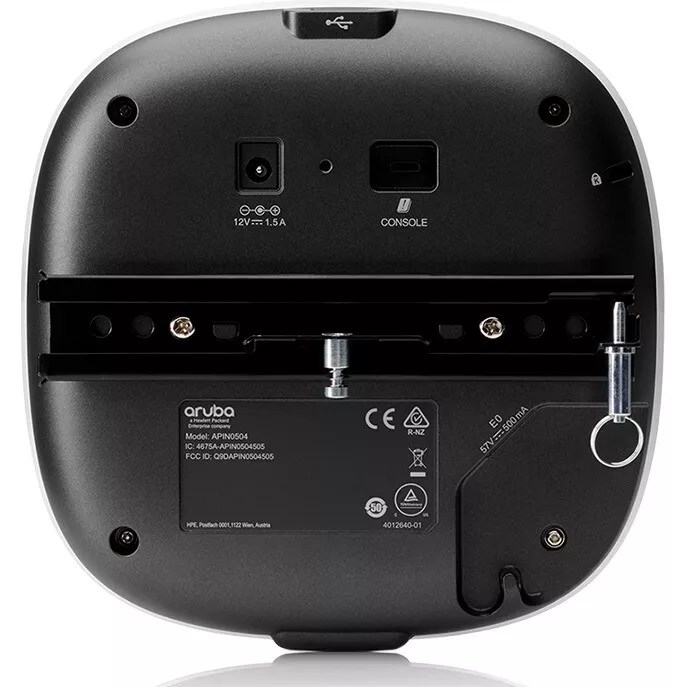

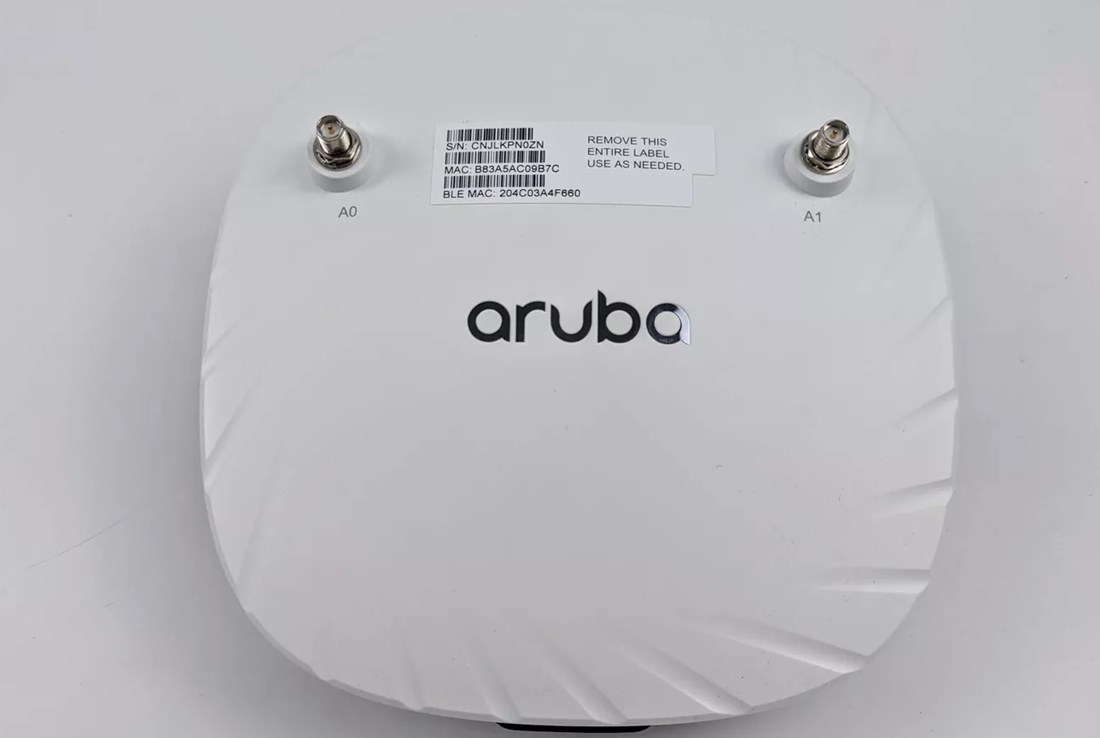

Aruba AP-504 (US) 1774 Mbit/s White Power over Ethernet (PoE)
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Reviews
Description
Product Features:
- 2.4 GHz 574 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1774 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
- WPA3, WPA, WPA2
- Power over Ethernet (PoE)
- External
Aruba AP-504 (US) 1774 Mbit/s White Power over Ethernet (PoE)
HPE R2H23A Aruba Ap-504 Us Unified Campus - Wireless Access Point.
Aruba AP-504 (US). Maximum data transfer rate: 1774 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1200 Mbit/s. Security algorithms: WPA3, WPA, WPA2. USB connector type: USB Type-A. Placement: Ceiling, Wall, Product colour: White, Cable lock slot type: Kensington. Antenna type: External, Antenna connector type: RP-SMA
Specification
Features
2.4 GHz
5 GHz
Maximum data transfer rate
1774 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Auto MDI/MDI-X
MIMO
MIMO type
Multi User MIMO
Spread spectrum method
DSSS, OFDM, OFDMA
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Security
Security algorithms
WPA3, WPA, WPA2
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
USB connector type
USB Type-A
Power
Power over Ethernet (PoE)
Design
Placement
Ceiling, Wall
Product colour
White
Cable lock slot
Cable lock slot type
Kensington
Antenna
Antenna type
External
Antenna connector type
RP-SMA
Number of connectors
2
Weight & dimensions
Width
160 mm
Depth
161 mm
Height
37 mm
Weight
500 g
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 93%
