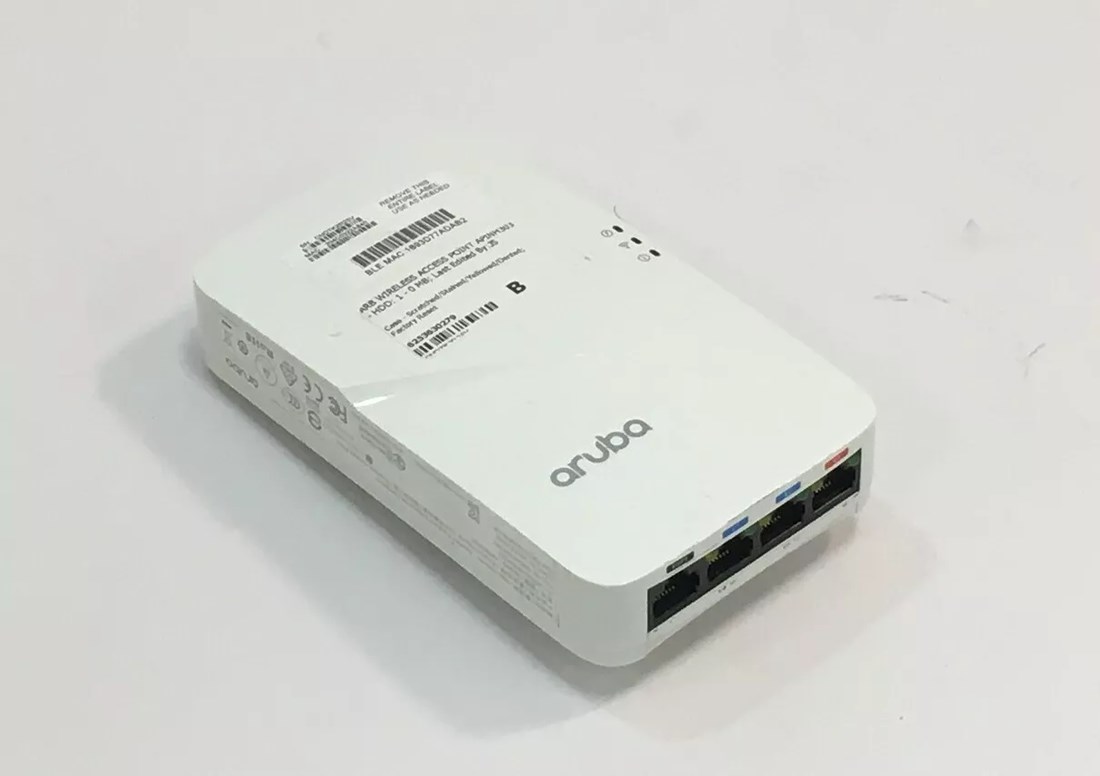

Aruba AP-303HR (US) 867 Mbit/s White Power over Ethernet (PoE)
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Reviews
Description
Product Features:
- 2.4 GHz 300 Mbit/s
- 5 GHz 867 Mbit/s
- Maximum data transfer rate: 867 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
Aruba AP-303HR (US) 867 Mbit/s White Power over Ethernet (PoE)

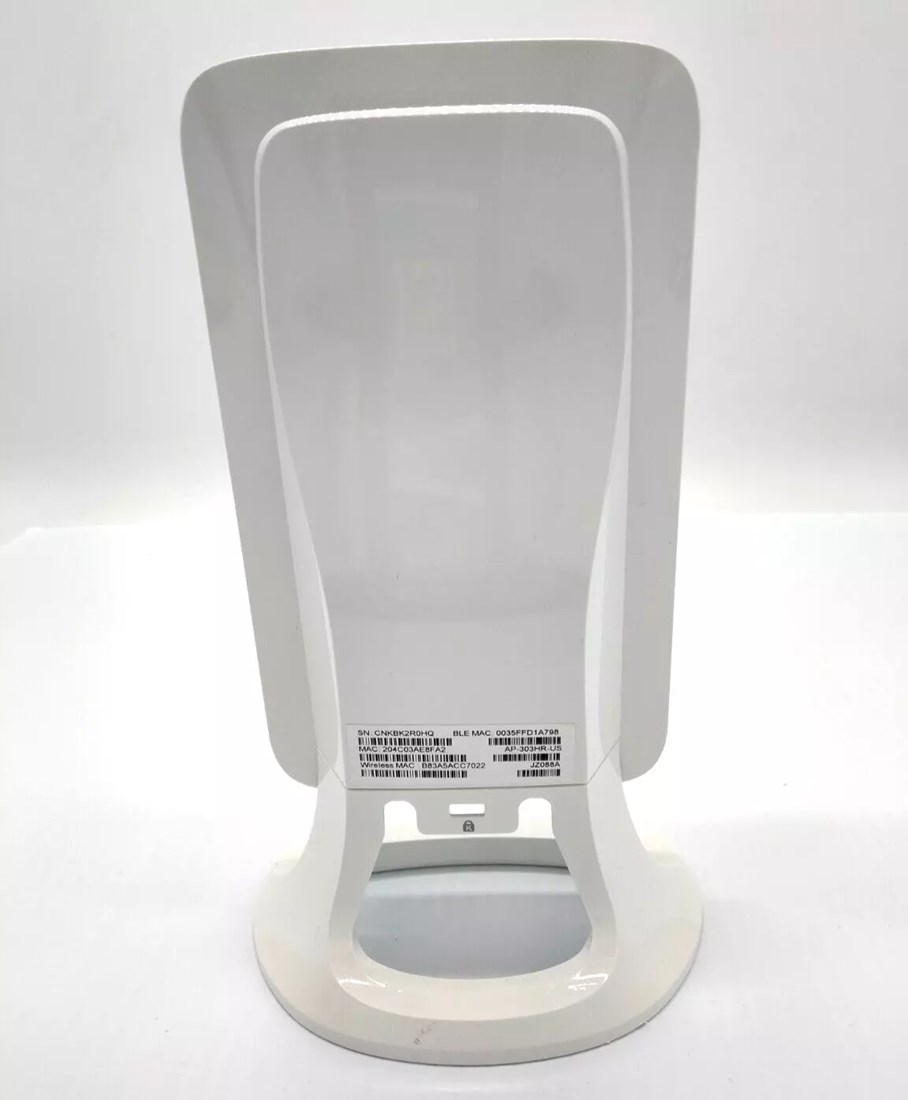

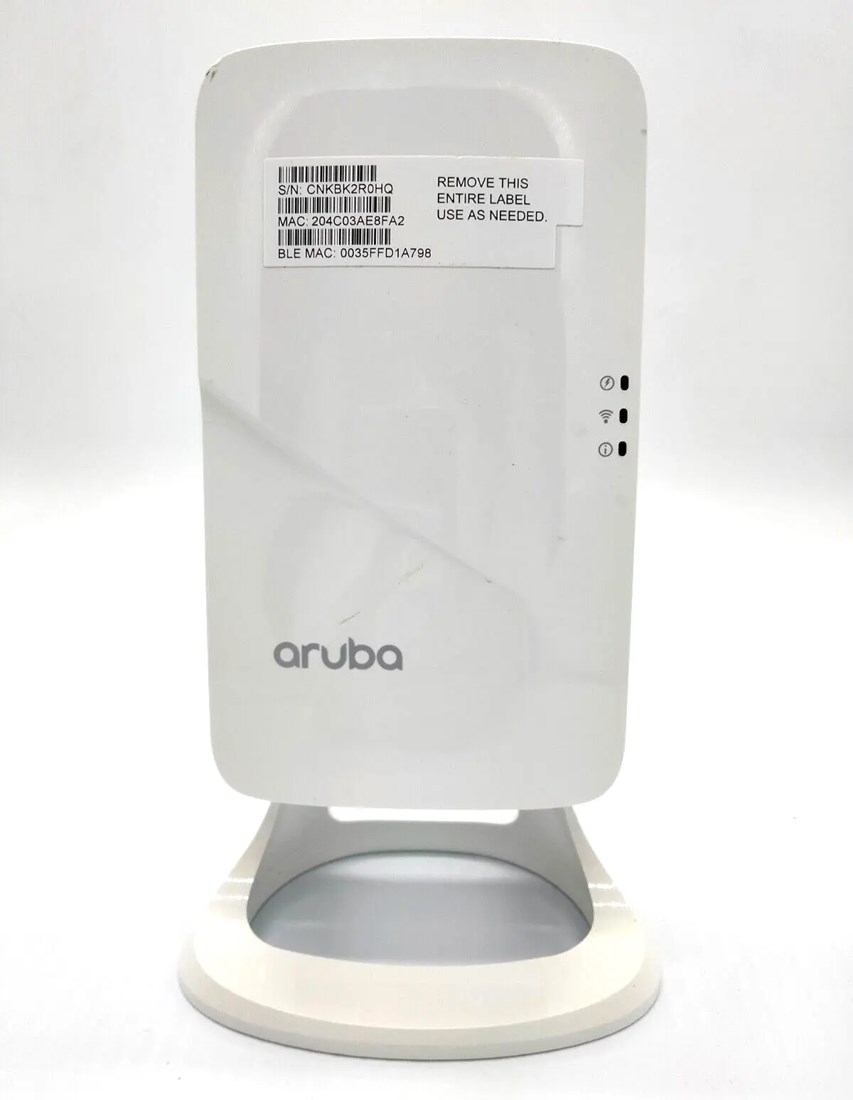

Contains AP-303H (US), desk stand (assembled, attached), power adapter North America AC power cord.
Aruba AP-303HR (US). Maximum data transfer rate: 867 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. USB connector type: USB Type-A. Power consumption (max): 9.7 W. Placement: Wall, Product colour: White. Antenna type: Internal, Antenna direction type: Directional, Antenna features: Integrated antenna
Specification
Features
2.4 GHz
5 GHz
Maximum data transfer rate
867 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Auto MDI/MDI-X
MIMO
Spread spectrum method
DSSS, OFDM
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Quality of Service (QoS) support
Security
Security algorithms
Not supported
Ports & interfaces

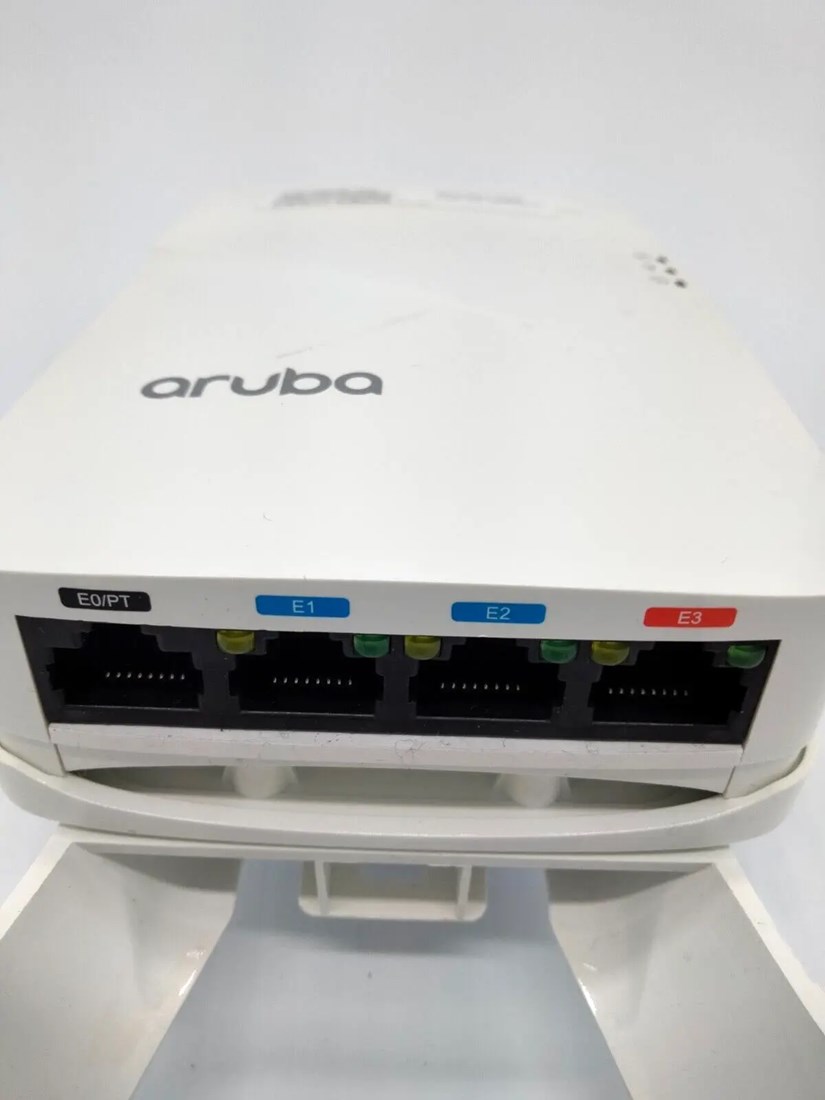

Ethernet LAN (RJ-45) ports
3
USB 2.0 ports quantity
1

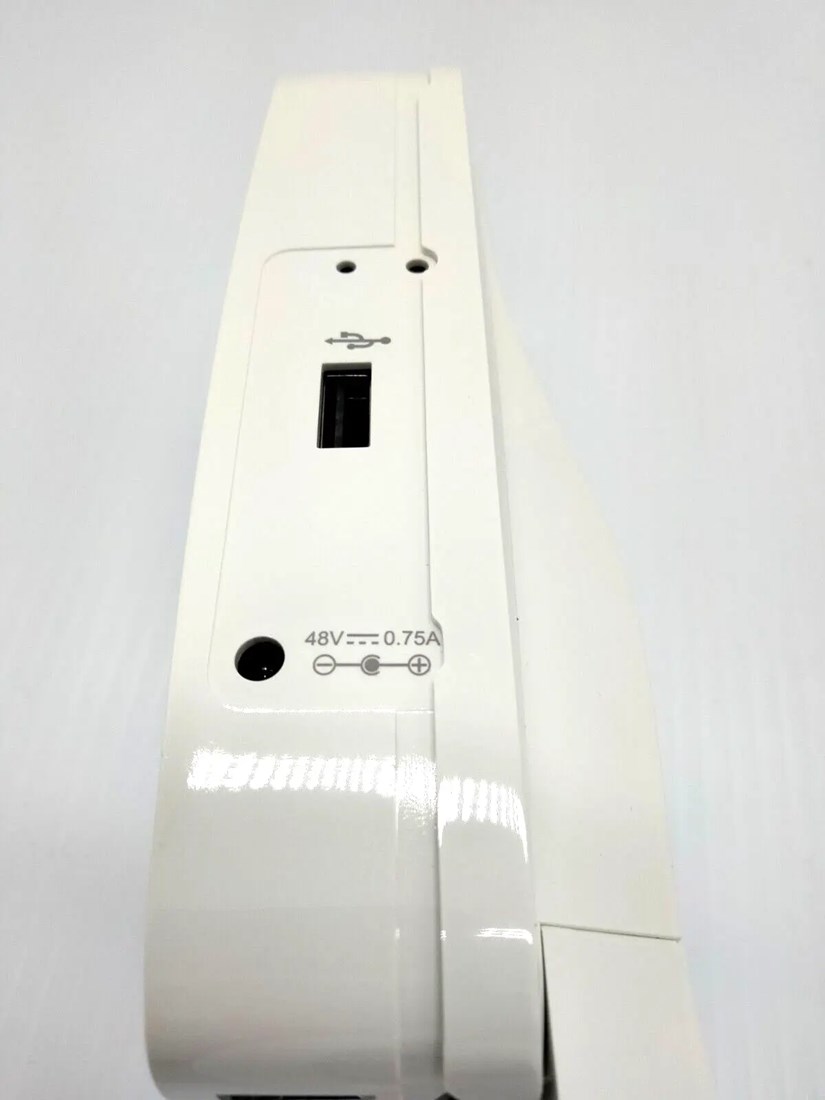

USB connector type
USB Type-A
Power
Power over Ethernet (PoE)
Power consumption (max)
9.7 W
Design
Placement
Wall
Product colour
White
Antenna
Antenna type
Internal
Antenna direction type
Directional
Antenna features
Integrated antenna
Antennas quantity
2
Antenna gain level (max)
6.2 dBi
Weight & dimensions
Width
86 mm
Depth
40 mm
Height
150 mm
Weight
350 g
Packaging data
Package width
293 mm
Package depth
137 mm
Package height
93 mm
Package weight
790 g
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
