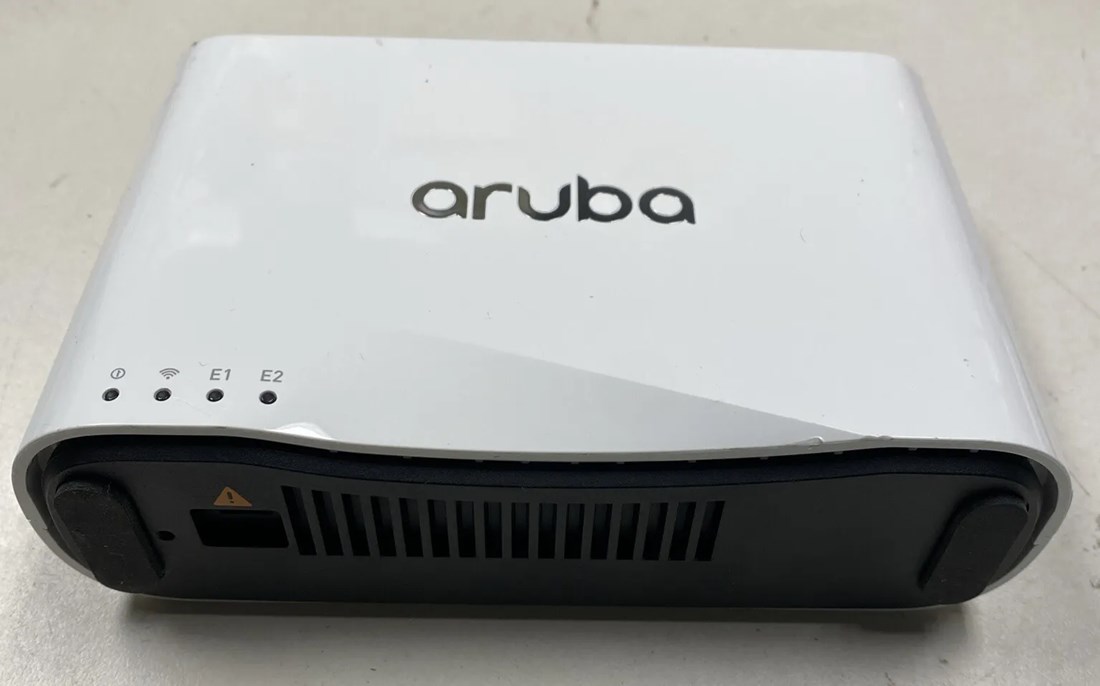

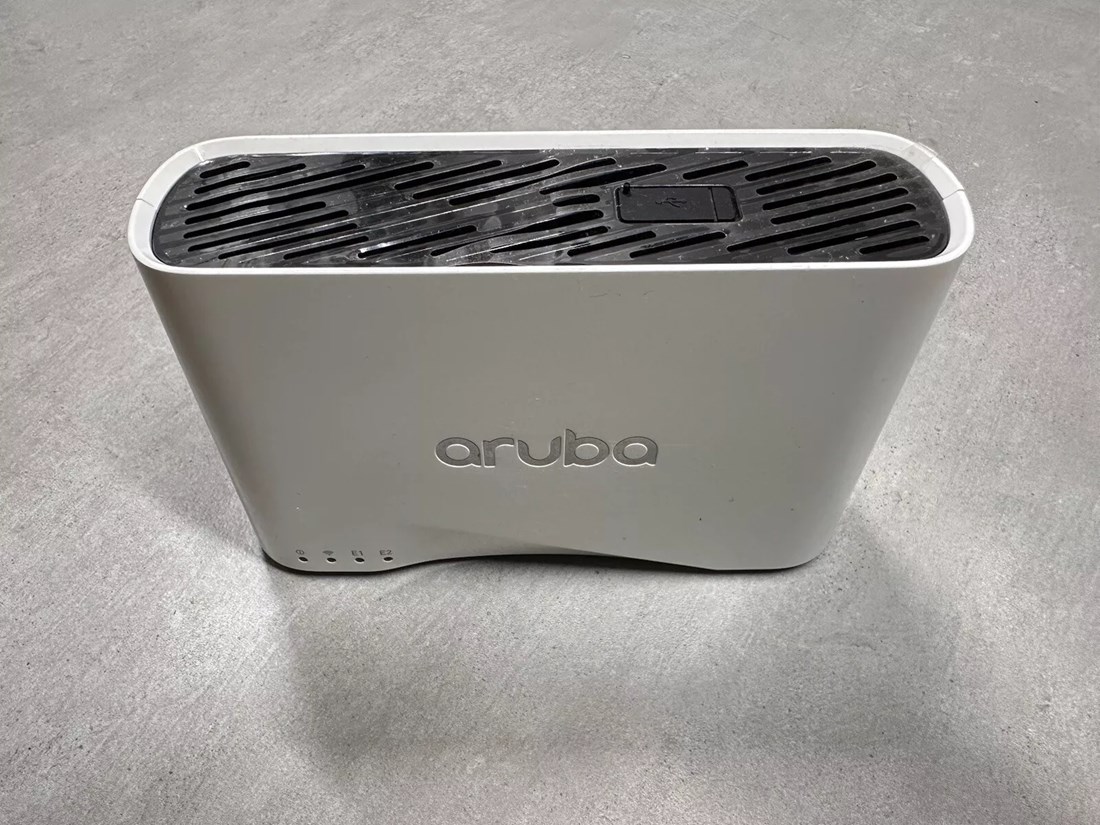

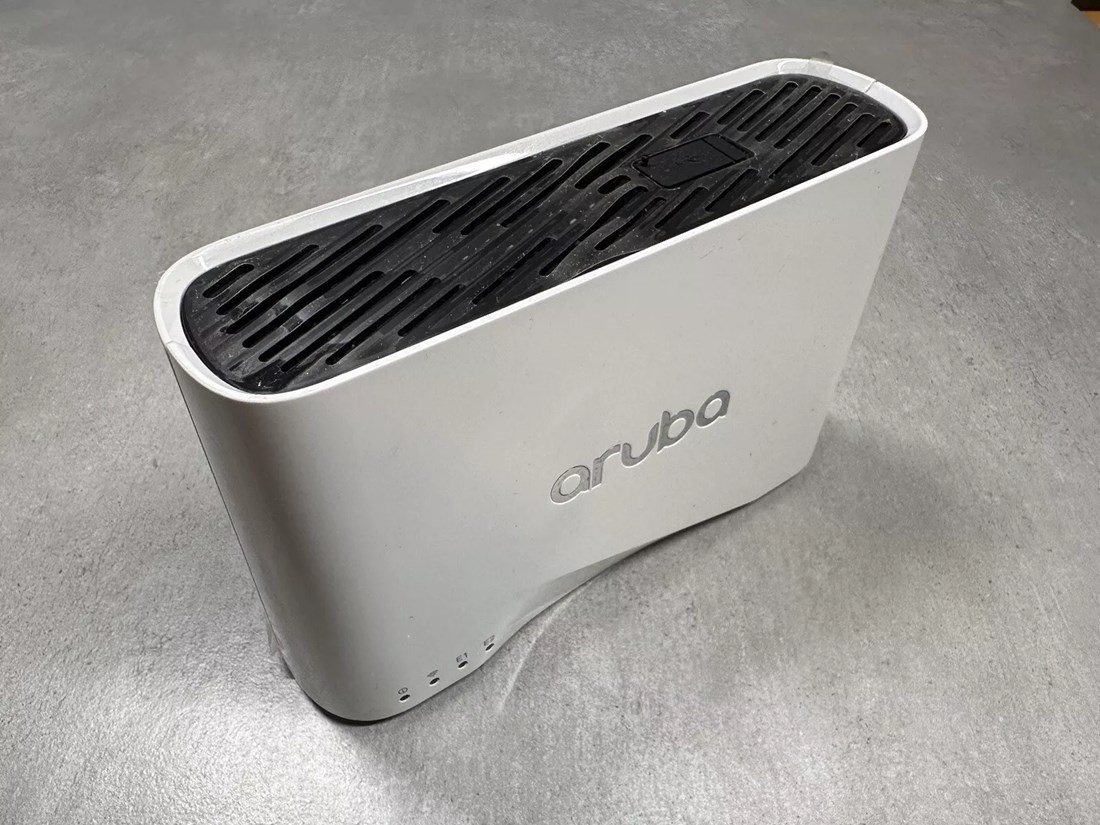

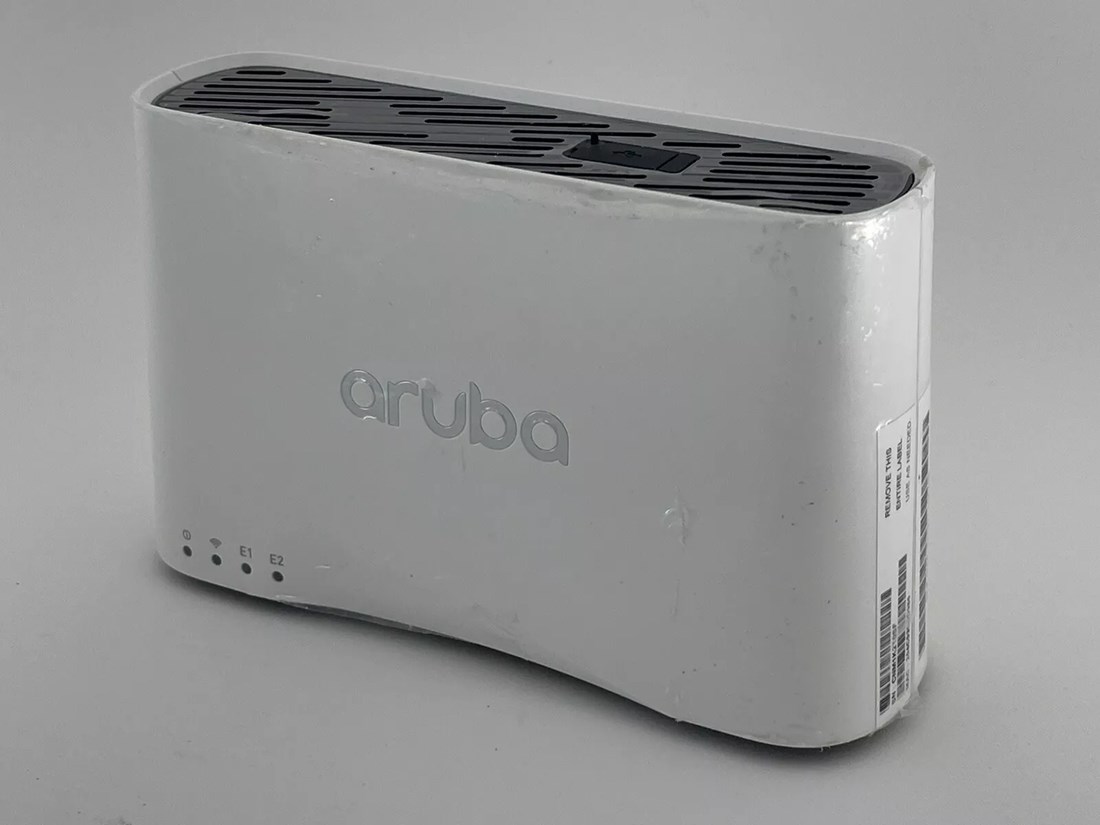

Aruba AP-203RP (US) 867 Mbit/s White Power over Ethernet (PoE)
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Reviews
Description
Product Features:
- 2.4 GHz 400 Mbit/s
- 5 GHz 867 Mbit/s
- Maximum data transfer rate: 867 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
- IPSec
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
Aruba AP-203RP (US) 867 Mbit/s White Power over Ethernet (PoE)
HPE JY722A Aruba Ap-203rp (us) - Wireless Access Point.
Aruba AP-203RP (US). Maximum data transfer rate: 867 Mbit/s, Maximum data transfer rate (2.4 GHz): 400 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. Security algorithms: IPSec. USB connector type: USB Type-A. AC input voltage: 90 - 265 V, AC input frequency: 47-63 Hz, Power consumption (max): 7.5 W. Placement: Table, Wall, Product colour: White, LED indicators: Power, Status
Specification
Features
2.4 GHz
5 GHz
Maximum data transfer rate
867 Mbit/s
Maximum data transfer rate (2.4 GHz)
400 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Auto MDI/MDI-X
MIMO
Spread spectrum method
DSSS, OFDM
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Maximal-Ratio Combining (MRC)
Cyclic Delay Diversity (CDD)
Cyclic Shift Diversity (CSD)
Security
Security algorithms
IPSec
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
USB 2.0 ports quantity
1
USB connector type
USB Type-A
Power
Power over Ethernet (PoE)
AC input voltage
90 - 265 V
AC input frequency
47-63 Hz
Power consumption (max)
7.5 W
Design
Placement
Table, Wall
Product colour
White
LED indicators
Power, Status
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Antennas quantity
2
Antenna gain level (max)
1 dBi
Weight & dimensions
Width
155 mm
Depth
50 mm
Height
95 mm
Weight
340 g
Packaging data
Package width
224 mm
Package depth
159 mm
Package height
78 mm
Package weight
590 g
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
