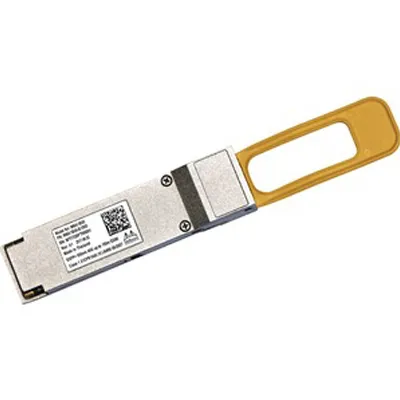

Mellanox Technologies MMA1B00-B150D network transceiver module Fiber optic 40000 Mbit/s QSFP+ 850 nm
Product Name:
Condition:
Brand:Mellanox Technologies
Part Number (MPN):
GTIN (EAN/UPC):
Category:
$209.00
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Reviews
Description
Product Features:
- QSFP+ Fiber optic 40000 Mbit/s
- Wavelength: 850 nm
- Input voltage: 3.6 V
Mellanox Technologies MMA1B00-B150D network transceiver module Fiber optic 40000 Mbit/s QSFP+ 850 nm
MELLANOX MMA1B00-B150D 40gbe Qsfp+ Sr4 Optical Transceiver. Overview: MELLANOX MMA1B00-B150D Is A 4-channel, Pluggable, Qsfp+, Vcsel-based (vertical Cavity Surface Emitting Laser) Optical Transceiver Designed For Up To 150m Reach In 40gb/s Ethernet Networks Operating At 4x10.3125gb/s. This Transceiver Incorporates MELLANOX Integrated Circuit Technology, Which Combines High Performance At Low Power. The Transceiver Operates Over Parallel Multi-mode Fiber (mmf), Using A Nominal Wavelength Of 850nm, And Is Sff-8436 Compliant. The MMA1B00-B150D Transceiver Has A Standard Qsfp+ Connector On The Electrical Side Towards The Host System For Power, Control/monitoring And High-speed Data. The Optical Interface Is Composed Of Four Optical Channels/fibers In Each Direction, Intended For A Parallel Mmf Cable Via A Standard Mpo Connector. The Transceiver Can Operate 10.3125gb/s Without Retiming. The Transceiver Provides Digital Diagnostic Monitoring Of Supply Voltage, Temperature, Transmit/receive Power, And Vcsel Bias. Rigorous Production Testing Ensures The Best Out-of-the-box Installation Experience, Performance, And Durability.
Mellanox Technologies MMA1B00-B150D. SFP transceiver type: Fiber optic, Maximum data transfer rate: 40000 Mbit/s, Interface type: QSFP+. Input voltage: 3.6 V. Width: 18.3 mm, Depth: 118 mm, Height: 8.5 mm
