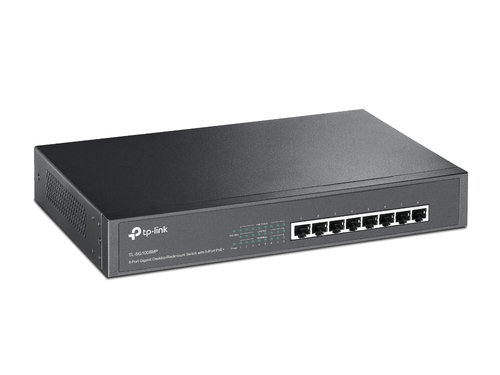

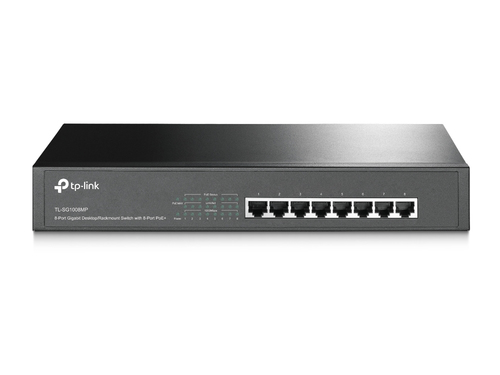

TP-Link TL-SG1008MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Reviews (3)
Description
Product Features:
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
- Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
- Innovative energy-efficient technology reduces power consumption
- Rack mountable with included rack mount bracket
- Total PoE power budget up to 126W
- Plug and play design, no configuration required
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 4000 entries Switching capacity: 16 Gbit/s
- Rack mounting
- Power supply included Power over Ethernet (PoE)
TP-Link TL-SG1008MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-LINK TL-SG1008MP - 8-port Gigabit Poe Switch - Limited Lifetime Protection - 8 Poe+ Ports @153w - Rackmount - Plug & Play.
TP-Link TL-SG1008MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting
Specification
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support
Auto MDI/MDI-X
Auto-negotiation
Data transmission
Switching capacity
16 Gbit/s
MAC address table
4000 entries
Store-and-forward
Packet buffer memory
1.5 MB
Design
Rack mounting
Product colour
Black
Number of fans
1 fan(s)
Certification
FCC, CE, RoHS
Performance
Mean time between failures (MTBF)
1 h
MTBF (PoE)
1 h
Commodity Classification Automated Tracking System (CCATS)
11
Minimum system requirements
1
Technical details
Shipping (inner) case height
1 mm
Shipping (inner) case width
1 mm
Shipping (inner) case length
1 mm
Shipping (inner) case net weight
1 g
Products per shipping (inner) case
1 pc(s)
Master (outer) cases per pallet layer
1 pc(s)
Layers per pallet (air)
1 pc(s)
Layers per pallet (sea)
1 pc(s)
Pallet gross weight (air)
1 g
Master (outer) cases per pallet (air)
11 pc(s)
Products per pallet (air)
1 pc(s)
Pallet gross length
1 mm
Pallet gross width
1 mm
Pallet height (air)
1 mm
Pallet gross weight (sea)
1 g
Master (outer) cases per pallet (sea)
1 pc(s)
Products per pallet (sea)
11 pc(s)
Pallet height (sea)
1 mm
Shipping (inner) case gross weight
1 g
Power
Power supply included
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
140.1 W
Power consumption (max)
144.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
492.6 BTU/h
Weight & dimensions
Width
294 mm
Depth
180 mm
Height
44 mm
Packaging data
Cables included
AC
User guide
Rack mount kit
Logistics data
Harmonized System (HS) code
85176990
