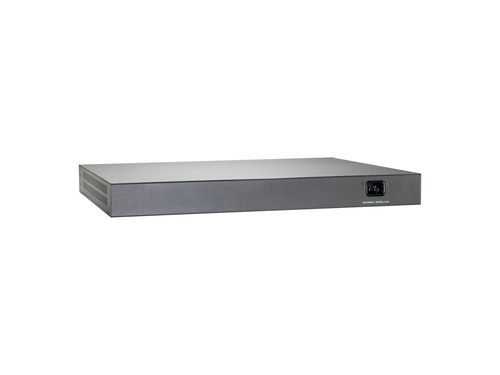

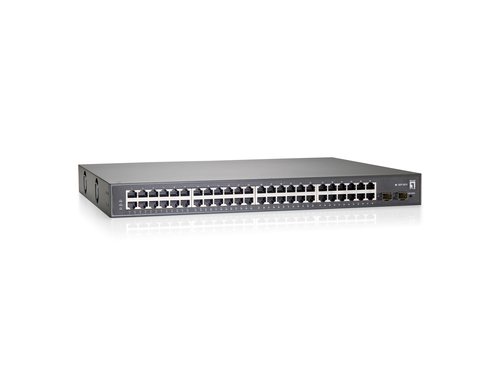

Name: LevelOne 50-Port L2 Managed Gigabit Ethernet PoE Switch, 802.3at PoE+, 375W, 2 Ports SFP, 48 PoE Outputs
SKU: GEP-5070
Price: 1339.80 USD
Availability: InStock

Description

Specification

Reviews

Description

Product Features:

Managed L2 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 48
MAC address table: 32768 entries Switching capacity: 100 Gbit/s
Access Control List (ACL)
Rack mounting
Power over Ethernet (PoE)

LevelOne 50-Port L2 Managed Gigabit Ethernet PoE Switch, 802.3at PoE+, 375W, 2 Ports SFP, 48 PoE Outputs

Cp Technologies - Levelone 48 Ge Poe-plus + 2 Ge Sfp L2 Managed Switch, 375w - 48 Ports - Manageable - 2 X Expansion Slots - 10/100/1000base-t, 1000base-x - 2 X Sfp Slots - 2 Layer Supported - Rack-mountable (GEP-5070).

LevelOne 50-Port L2 Managed Gigabit Ethernet PoE Switch, 802.3at PoE+, 375W, 2 Ports SFP, 48 PoE Outputs. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32768 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting

Specification

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Web-based management

System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

Power connector

DC-in jack

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Port mirroring

Full duplex

Flow control support

Link aggregation

Rate limiting

Spanning tree protocol

VLAN support

Virtual LAN features

Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN

Data transmission

Switching capacity

100 Gbit/s

MAC address table

32768 entries

Store-and-forward

Number of trunks

Jumbo frames

10000

Packet forwarding rate (1 Gbps)

1488100 pps

Packet forwarding rate (100 Mbps)

148810 pps

Packet forwarding rate (10 Mbps)

14881 pps

Packet buffer memory

0.512 MB

Security

DHCP features

DHCP client

Access Control List (ACL)

IGMP snooping

MAC address filtering

Static port security

SSH/SSL support

Auto-edge port

Multicast features

Multicast support

Design

Rack mounting

Product colour

Grey

LED indicators

Activity, Link, PoE, Power

Country of origin

China

Certification

FCC Part 15 Class A, CE, RoHS

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

500 W

Power over Ethernet (PoE)

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

375 W

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

440 mm

Depth

350 mm

Height

44.5 mm

Weight

4.05 kg

Packaging data

Cables included

Quick start guide

Mounting brackets included

Package type

Box

Rack mount kit

Resource CD

Package width

535 mm

Package depth

470 mm

Package height

86 mm

Package weight

6.13 kg

Reviews

Be the first to write a review
