Aruba 8325-48Y8C Managed L3 1U Black
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Related Products
Reviews
Description
Product Features:
- Managed L3
- Quality of Service (QoS) support
- 10G support
- MAC address table: 98304 entries Switching capacity: 6400 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included

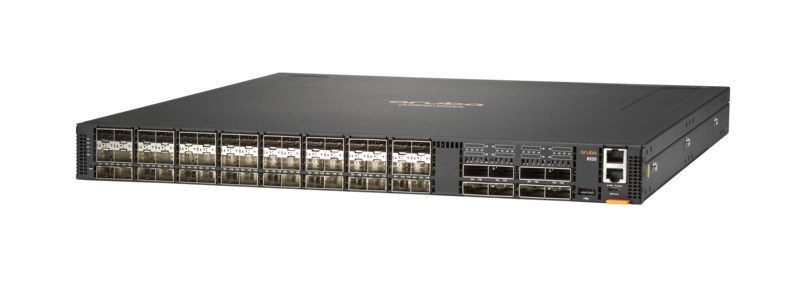

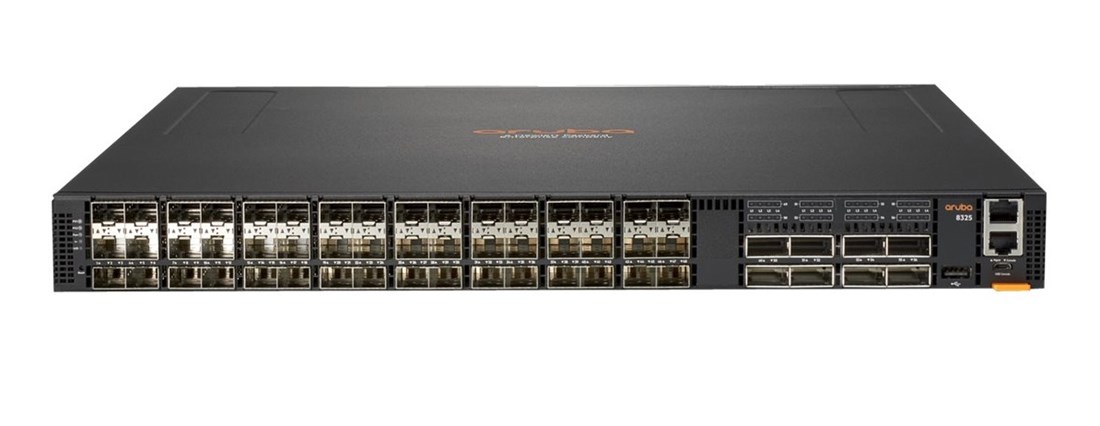

Aruba 8325-48Y8C Managed L3 1U Black
HPE JL624A Aruba 8325-48y8c - Switch - L3 - Managed - 48 X 10/25 Gigabit Sfp+ / Sfp28 + 8 X 40/100 Gigabit Qsfp+ / Qsfp28 - Front To Back Airflow - Rack-mountable.
Aruba 8325-48Y8C. Switch type: Managed, Switch layer: L3. MAC address table: 98304 entries, Switching capacity: 6400 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE.... Rack mounting, Form factor: 1U
Specification
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
QSFP28 ports quantity
8
SFP28 ports quantity
48
Network
Networking standards
IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
10G support
Port mirroring
Flow control support
Link aggregation
Spanning tree protocol
VLAN support
Data transmission
Supported data transfer rates
1/10/25/40/100 Gbps
Switching capacity
6400 Gbit/s
Throughput
1905 Mpps
MAC address table
98304 entries
Maximum data transfer rate
100 Gbit/s
Jumbo frames support
Packet buffer memory
32 MB
Security
DHCP features
DHCP server
Access Control List (ACL)
Authentication type
RADIUS
Multicast features
Multicast support
IPv4 multicast entries
4094
IPv6 multicast entries
4094
MLD entries
4094
Design
Rack mounting

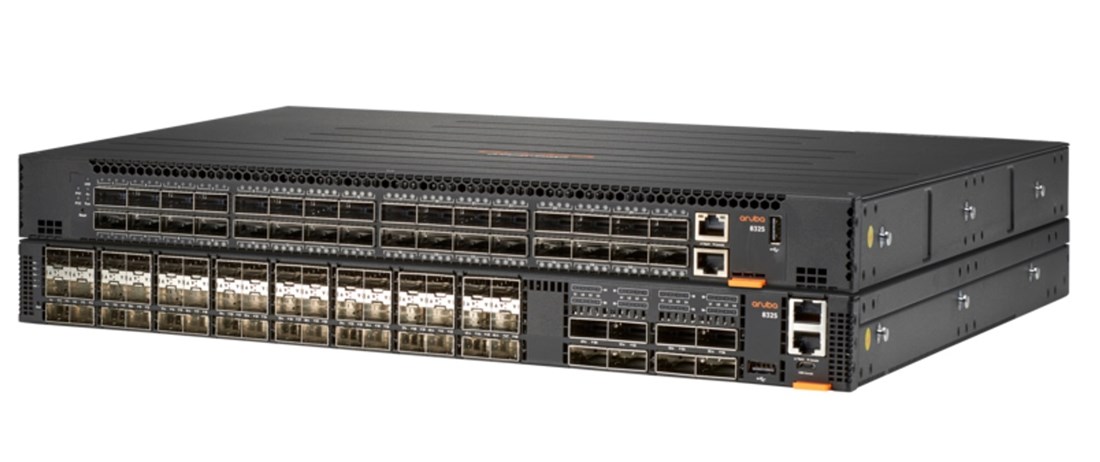

Stackable
Form factor
1U
Product colour
Black

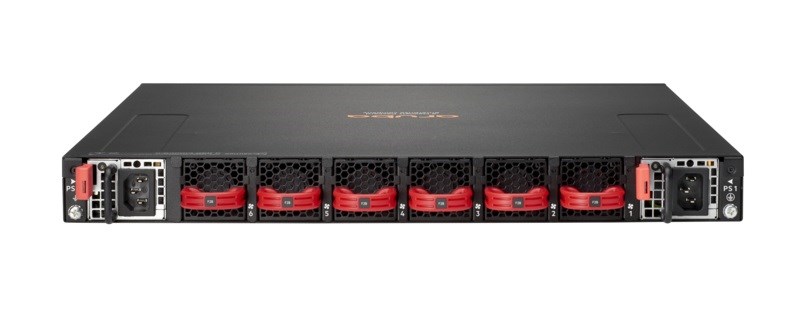

Number of fans
6 fan(s)
Performance
Built-in processor
Processor frequency
2200 MHz
Memory type
SDRAM / Flash
Internal memory
16384 MB
Flash memory
8192 MB
Power
Power source
AC
Power supply included
Redundant power supply (RPS) support
Number of power supply units
2
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
550 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
438.5 mm
Depth
536 mm
Height
43.5 mm
Weight
10 kg
Logistics data
Harmonized System (HS) code
85176990
