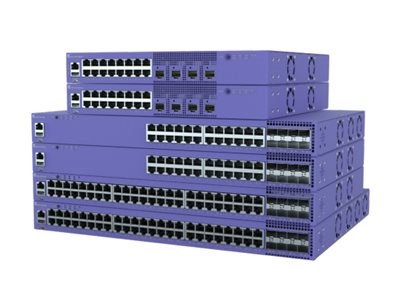

Name: Extreme networks 5320-24T-8XE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Blue
Brand: EXTREME NETWORKS
SKU: 5320-24T-8XE
Price: 4002 USD
Availability: InStock
Rating: 4.980923226548363

Description

Specification

Media

Reviews

Description

Product Features:

30W PoE (Power over Ethernet) support for powering connected devices
4 x 1Gb SFP+ uplink ports upgradable to 10Gb on 16-port models / 8 x 1Gb SFP+ uplink ports upgradeable to 10Gb on 24 and 48-port models
Silent operation at up to 35°C (95°F) on 16-port models
Choice of AC or DC power option on 16-port models
40Gb per unit stacking of up to eight switches
Secure link encryption with MACsec across both access and uplink ports
Non-blocking wire speed design
Managed L2/L3 Web-based management
Quality of Service (QoS) support Configuring Location Settings (CLI)
Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/Micro-USB
10G support 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 32000 entries Switching capacity: 208 Gbit/s
Access Control List (ACL)
1U Rack mounting Stackable
AC Power supply included

Extreme networks 5320-24T-8XE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Blue

Extreme Networks 5320-24T-8XE Extremeswitching Ethernet Switch, 24 Port Gigabit Ethernet, 8 Port 10 Gigabit Ethernet. Product Key Features: modular Design With 8 Sfp+ Slots And 24 Gigabit Ethernet Network Ports supports 10gbase-x And 10/100/1000base-t Network Technologies layer 2 Support For Efficient Network Communication power Supply With 1 Installed Power Supply

Extreme networks 5320-24T-8XE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45/Micro-USB. Full duplex. MAC address table: 32000 entries, Switching capacity: 208 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u. Rack mounting, Form factor: 1U

Specification

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Web-based management

Cloud-managed

Configuring Location Settings (CLI)

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

SFP module slots quantity

Number of management ports

1 pc(s)

Console port

RJ-45/Micro-USB

USB 2.0 ports quantity

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u

10G support

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Full duplex

IP routing

Half duplex

Ethernet LAN data rates

10,100,1000 Mbit/s

Auto-sensing

VLAN support

Number of VLANs

4094

Data transmission

Switching capacity

208 Gbit/s

Forwarding rate

154.8 Mpps

MAC address table

32000 entries

Number of queues

Number of IP interfaces

248

Security

Access Control List (ACL)

Multicast features

IPv4 multicast entries

6000

Protocols

Routing protocols

OSPF

Design

Rack mounting

Stackable

Form factor

Product colour

Blue

LED indicators

Performance

Physical stacking (units)

Noise level

19.5 dB

Power

Power source

Power supply included

AC input voltage

100 - 240 V

AC input frequency

47/63 Hz

Power consumption (max)

50 W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 95%

Storage relative humidity (H-H)

10 - 95%

Operating altitude

0 - 3000 m

Heat dissipation

171 BTU/h

Weight & dimensions

Width

439.4 mm

Depth

279.4 mm

Height

43.2 mm

Weight

3.7 kg

Packaging data

Rack mount kit

Sustainability

Sustainability compliance

Sustainability certificates

BSMI, CB, CCC, CE, KCC, REACH, RoHS, WEEE
