Cisco C9300X-24HX-E Catalyst 9300X - Network Essentials switch 24 ports UPOE+
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Related Products
Reviews
Description

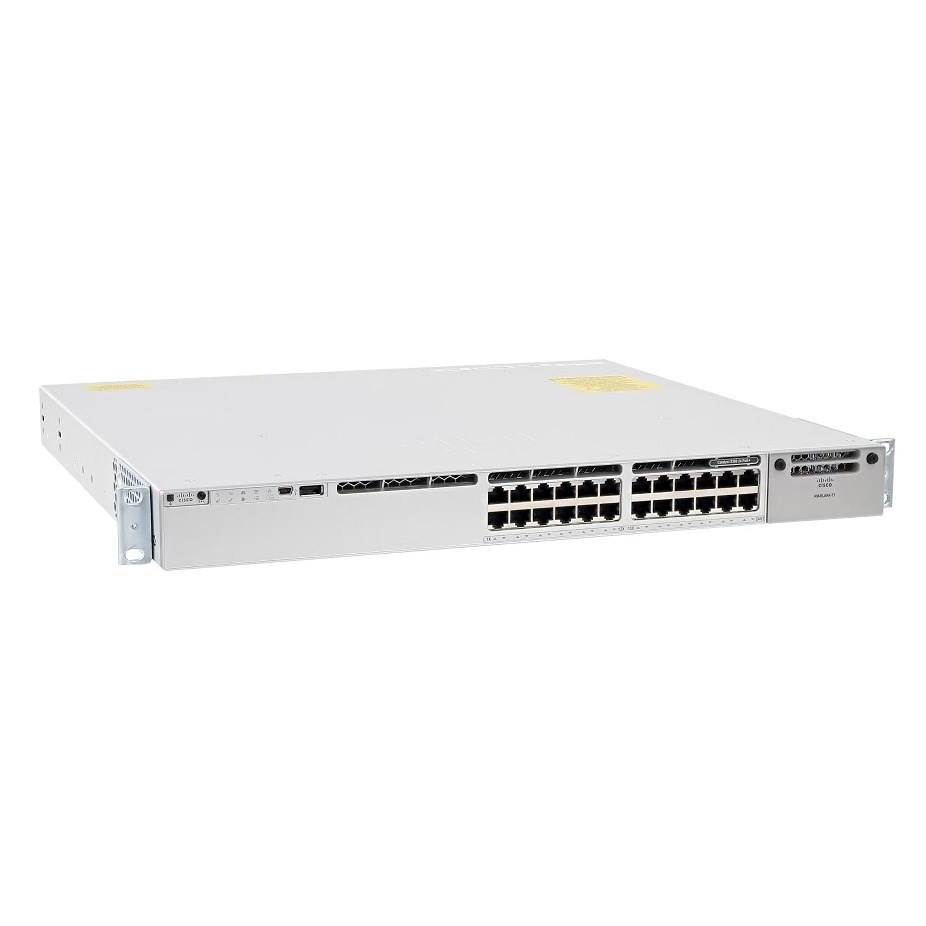

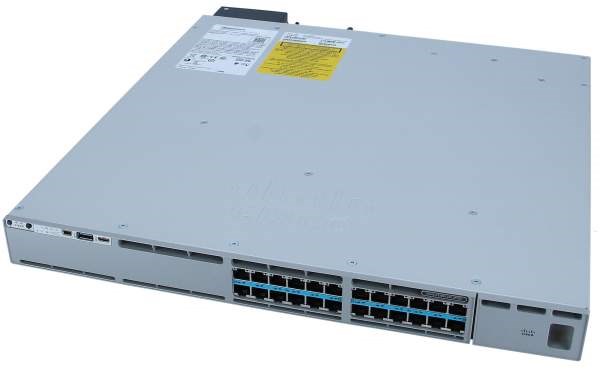

Cisco C9300X-24HX-E Catalyst 9300X - Network Essentials switch 24 ports UPOE+
CISCO C9300X-24HX-E Catalyst 9300x - Network Essentials Switch 24 Ports Managed Rack-mountable.
Specification
General
Description
CISCO Catalyst 9300x Network Essentials Switch 24 Ports Managed Rack-mountable
Device Type
Switch 24 Ports L3 Managed Stackable
Enclosure Type
Rack-mountable
Subtype
10 Gigabit Ethernet
Ports
24 X 100/1000/2.5g/5g/10gbase-t (upoe+)
Power Over Ethernet (poe)
Upoe+
Performance
Switching Capacity: 880 Gbps ¦ Switching Capacity With Stacking: 1880 Gbps ¦ Forwarding Rate: 327.38 Mpps ¦ Forwarding Rate With Stacking: 1398.8 Mpps
Capacity
Ipv4 Routing Table Entries: 39000 ¦ Multicast Routes: 8000 ¦ Qos Scale Entries: 4000 ¦ Acl Scale Entries: 8000 ¦ Ipv6 Routing Table Entries: 19500 ¦ Packet Buffer Size: 16 Mb ¦ Fnf Entries: 64000 ¦ Vlan Ids: 4094 ¦ Switched Virtual Interfaces (svis): 1000
Mac Address Table Size
32000 Entries
Jumbo Frame Support
9198 Bytes
Routing Protocol
Rip, Rip-1, Rip-2, Vrrp, Pim-sm, Static Ip Routing, Gre, Pim-ssm, Policy-based Routing (pbr), Ripng, Mstp, Stp, Lisp
Remote Management Protocol
Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Http, Cli, Netconf, Restconf, Grpc, Yang
Expansion / Connectivity
Interfaces
24 X 100/1000/2.5g/5g/10gbase-t Rj-45 Upoe+ - 90 W ¦ 1 X Usb 2.0
Expansion Slots
1 (total) / 1 (free) X Expansion Slot
Power
Power Device
Internal Power Supply Hot-plug
Installed Qty
1
Max Supported Qty
2
Power Redundancy
Optional
Power Provided
1100 Watt
Voltage Required
Ac 115-240 V (50 - 60 Hz)
