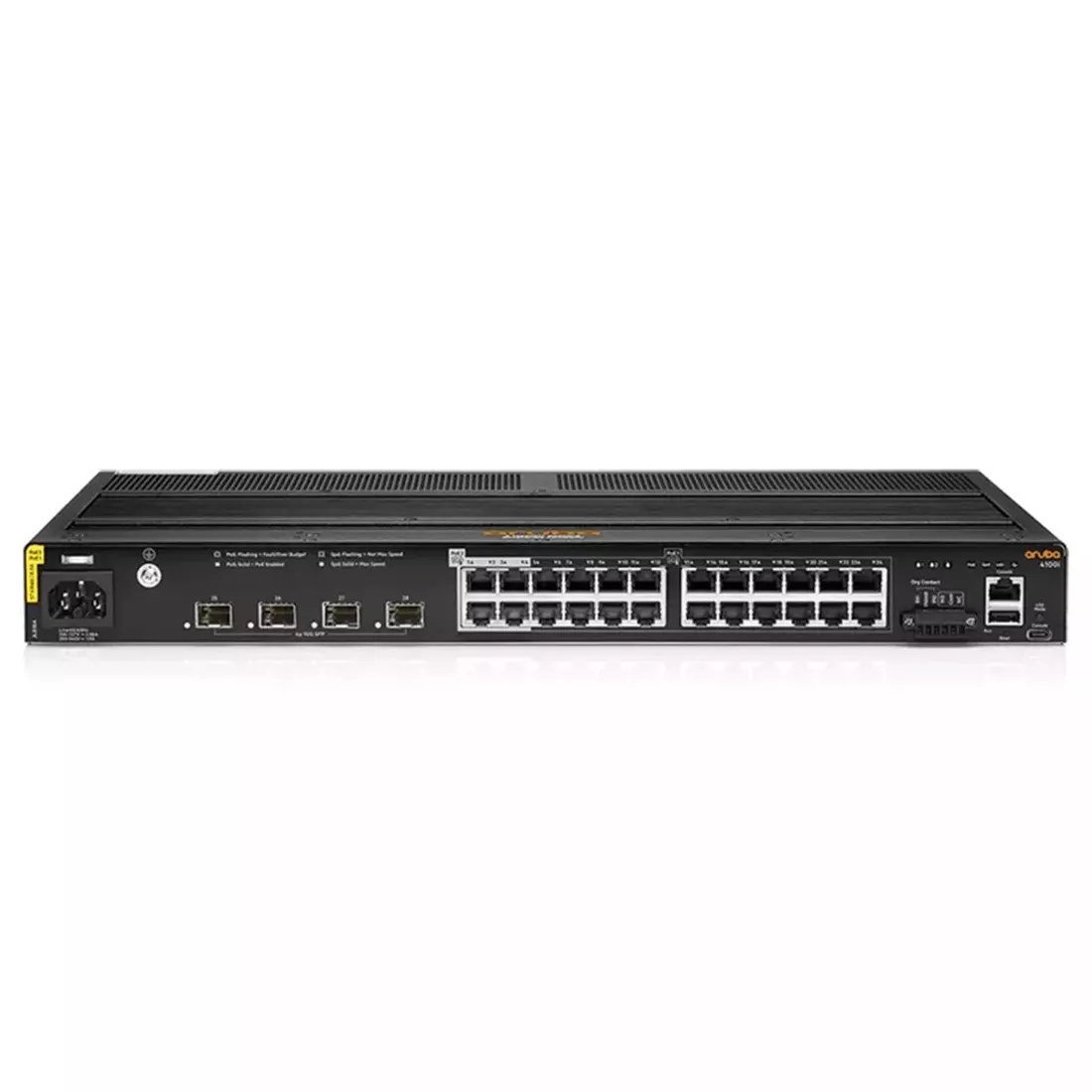

Aruba 4100i Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Reviews
Description
Product Features:
- Managed L2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/USB Type-C
- 10G support
- MAC address table: 8192 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power over Ethernet (PoE)
Aruba 4100i Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
HPE JL818A Aruba Cx 4100i 24g Cl4/6 Poe 4sfp+ Switch - 24 Ports - 3 Layer Supported - Modular - Managed - Rack-mountable.
Aruba 4100i. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 8192 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specification
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Console port
RJ-45/USB Type-C
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
10G support
Port mirroring
Spanning tree protocol
VLAN support
Data transmission
Switching capacity
128 Gbit/s
Throughput
95 Mpps
MAC address table
8192 entries
Latency (1 Gbps)
1.585 µs
Latency (10 Gbps)
1.243 µs
Jumbo frames support
Packet buffer memory
12.38 MB
Security
DHCP features
DHCP client
Access Control List (ACL)
IGMP snooping
Security algorithms
SSH, SSH-2
SSH/SSL support
Authentication
MAC-based authentication, Web-based authentication
Authentication type
RADIUS, TACACS+
Multicast features
Multicast support
Design
Rack mounting
Stackable
Form factor
1U
Product colour
Black
Performance
Built-in processor
Processor model
ARM Cortex-A9
Processor frequency
1016 MHz
Memory type
DDR3-SDRAM
Internal memory
4096 MB
Flash memory
32000 MB
Power
Power source
AC
Power supply included
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
240 W
Operational conditions
Operating temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 4200 m
Non-operating altitude
0 - 4600 m
Weight & dimensions
Width
444.5 mm
Depth
304.4 mm
Height
44 mm
Weight
6.47 kg
Logistics data
Harmonized System (HS) code
85176990
