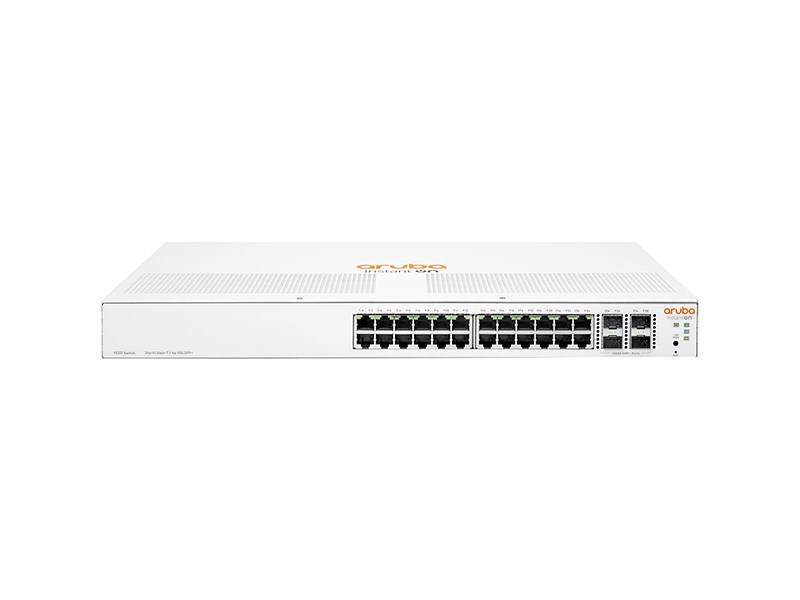

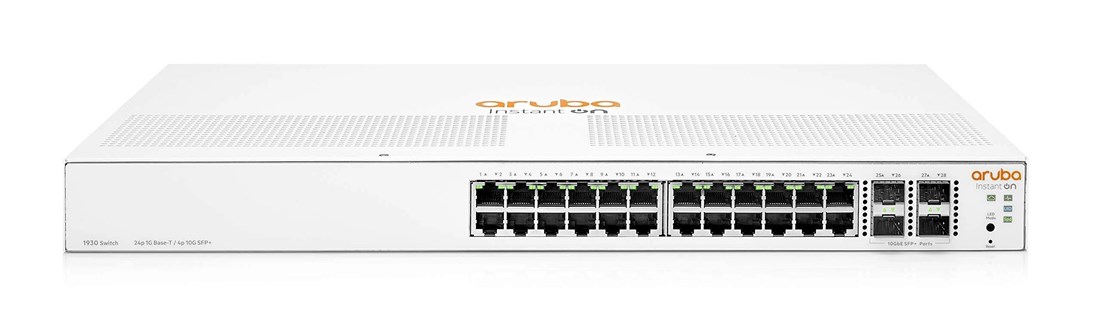

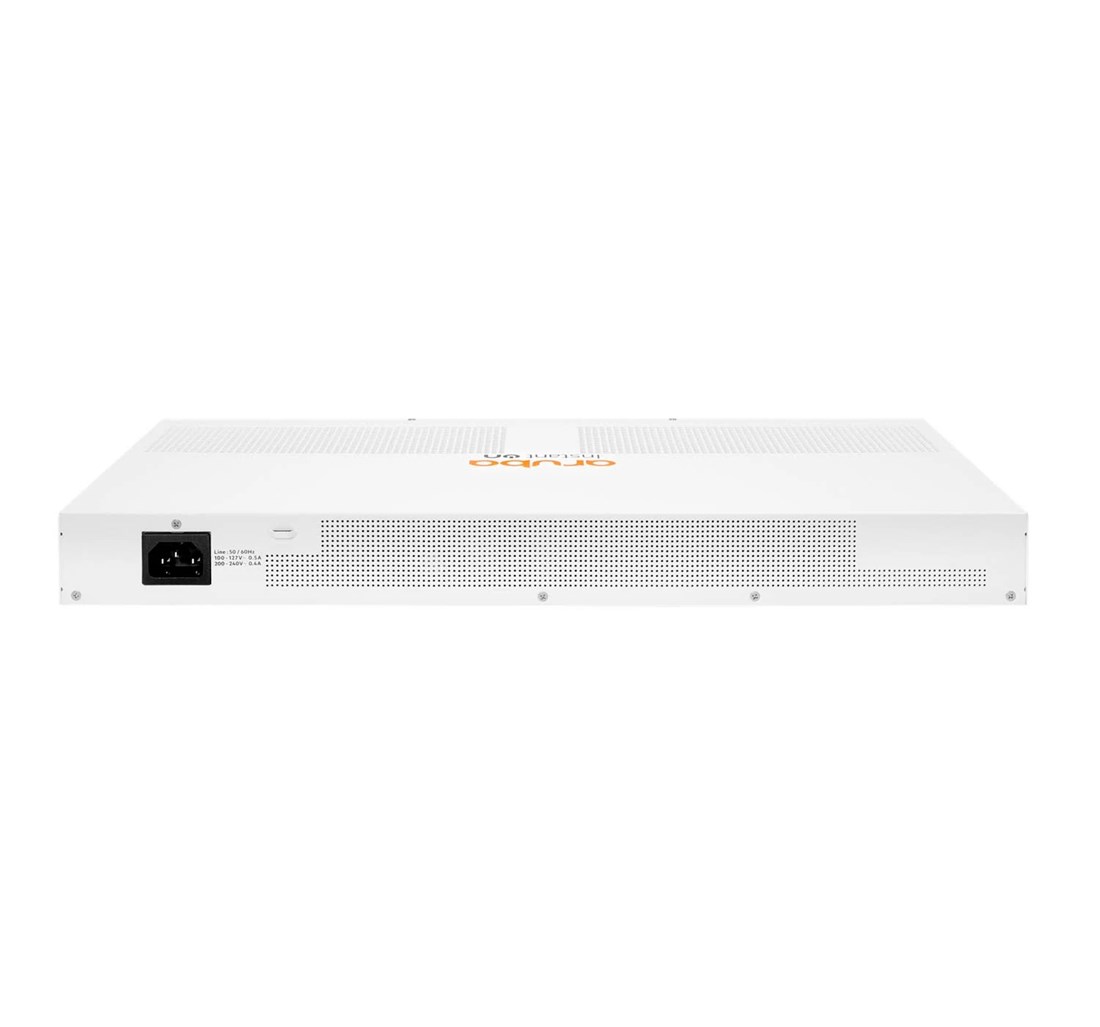

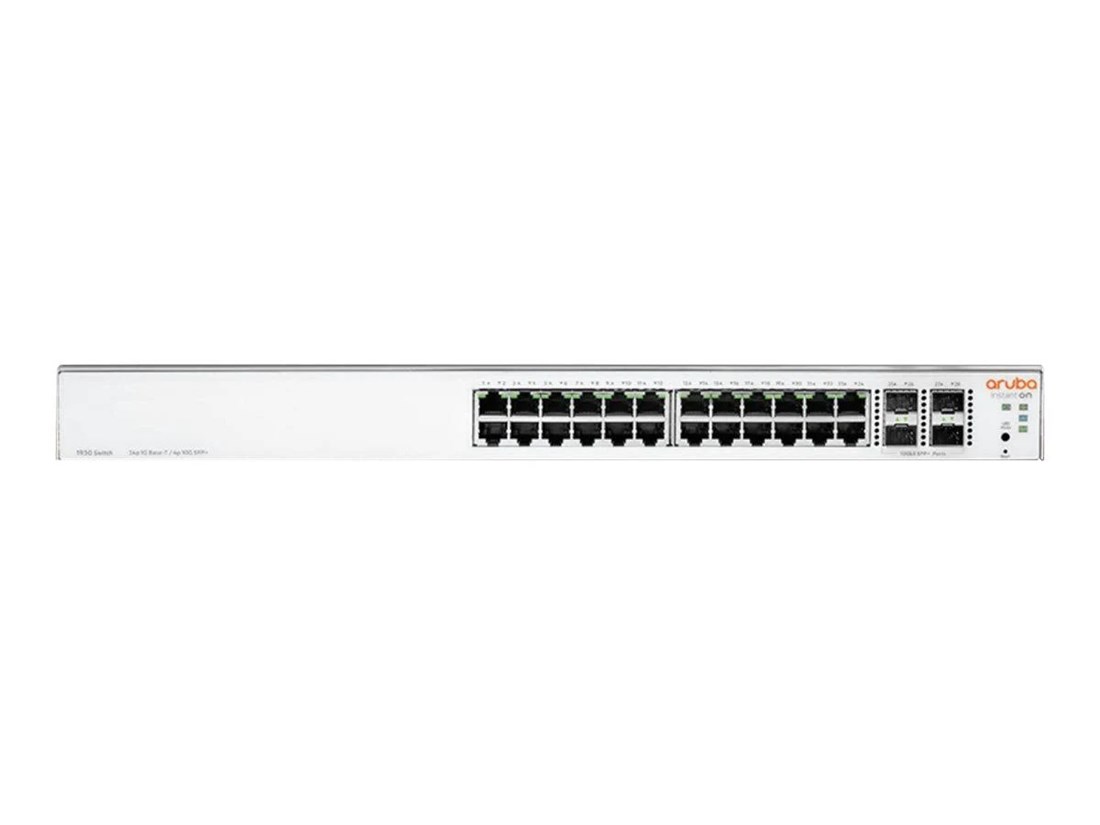

Aruba JL682A network switch Managed Gigabit Ethernet (10/100/1000) 1U White
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Reviews
Description
Product Features:
- Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity
- Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility
- 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity
- Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely
- Option to manage your switches through local web GUI
- Limited Lifetime Warranty
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included
Aruba JL682A network switch Managed Gigabit Ethernet (10/100/1000) 1U White
HPE JL682A Aruba Instant On 1930 24g 4sfp/sfp+ Switch - Switch - 28 Ports - Managed - Rack-mountable.
Aruba JL682A. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Rack mounting, Form factor: 1U
Specification
Management features
Switch type
Managed
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Network
10G support
Copper ethernet cabling technology
1000BASE-T
Port mirroring
Full duplex
IP routing
Routing entries
32
Flow control support
Link aggregation
Rate limiting
Spanning tree protocol
Ethernet LAN data rates
10,1000,100 Mbit/s
Auto-sensing
Active link detection
VLAN support
Number of VLANs
4093
Data transmission
Switching capacity
128 Gbit/s
Throughput
95.23 Mpps
MAC address table
16000 entries
Security
DHCP features
DHCP client, DHCP snooping
Access Control List (ACL)
IGMP snooping
SSH/SSL support
Loop protection
BPDU filtering/protection
Multicast features
Multicast support
Design
Rack mounting
Stackable
Form factor
1U
Product colour
White
Performance
Built-in processor
Processor model
ARM Cortex-A9
Processor frequency
800 MHz
Memory type
SDRAM / Flash
Internal memory
512 MB
Flash memory
256 MB
Power
Power source
AC
Power supply included
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
0.2 A
Power consumption (max)
22.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Weight & dimensions
Width
442.5 mm
Depth
221.5 mm
Height
43.9 mm
Weight
2.41 kg
