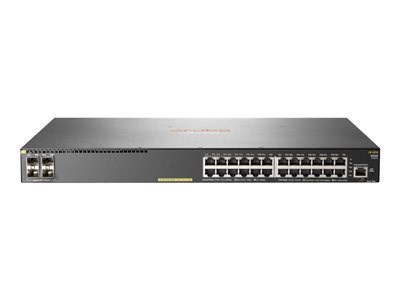

Aruba 2930F 24G PoE+ 4SFP+ TAA Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Related Products
Reviews
Description
Product Features:
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 32768 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included Power over Ethernet (PoE)
Aruba 2930F 24G PoE+ 4SFP+ TAA Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
HPE JL263A Aruba 2930f 24g Poe+ 4sfp+ Taa - Switch - 24 Ports - Managed - Rack-mountable:
Aruba 2930F 24G PoE+ 4SFP+ TAA. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 32768 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specification
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Web-based management
Traffic classification
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Console port
RJ-45
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
IP routing
Routing entries
10000
Flow control support
Link aggregation
Rate limiting
Auto MDI/MDI-X
Spanning tree protocol
Auto-sensing
VLAN support
Data transmission
Switching capacity
128 Gbit/s
Throughput
95.2 Mpps
MAC address table
32768 entries
Latency (1 Gbps)
3.8 µs
Latency (10 Gbps)
1.6 µs
Security
DHCP features
DHCP server
Access Control List (ACL)
IGMP snooping
SSH/SSL support
Multicast features
Multicast support
Design
Rack mounting
Stackable
Form factor
1U
Product colour
Grey
Performance
Built-in processor
Processor model
ARM Cortex-A9
Processor frequency
1016 MHz
Memory type
DDR3-SDRAM
Internal memory
1024 MB
Power
Power supply included
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
36.8 W
Power consumption (max)
445 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
370 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
15 - 95%
Heat dissipation
1518 BTU/h
Weight & dimensions
Width
442.5 mm
Depth
304.2 mm
Height
43.9 mm
Weight
3.9 kg
Logistics data
Harmonized System (HS) code
85176990
