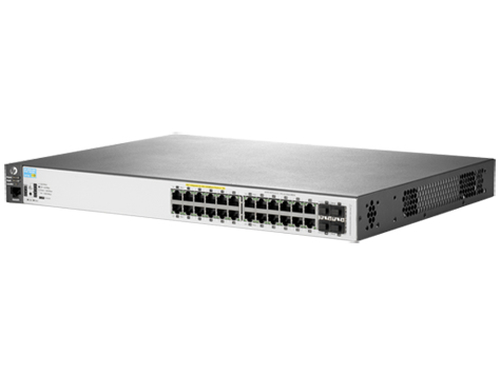

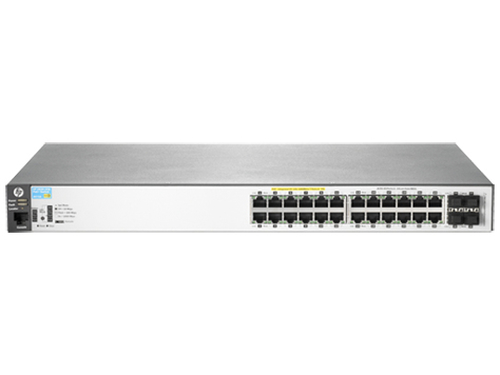

Aruba 2530 24G PoE+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Reviews
Description
Product Features:
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 56 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included Power over Ethernet (PoE)
Aruba 2530 24G PoE+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
HPE J9773A Aruba 2530 24g Poe+ Switch - 24 Ports - Managed - 24 X Poe+ - 4 X Expansion Slots - 10/100/1000base-t - Poe Ports - Desktop, Rack-mountable, Wall Mountable.
Aruba 2530 24G PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specification
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Web-based management
MIB support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Full duplex
Flow control support
Link aggregation
Rate limiting
Auto MDI/MDI-X
Spanning tree protocol
Auto-sensing
VLAN support
Data transmission
Switching capacity
56 Gbit/s
Throughput
41.6 Mpps
MAC address table
16000 entries
Latency (10-100 Mbps)
7.4 µs
Latency (1 Gbps)
2.3 µs
Jumbo frames support
Packet buffer memory
1.5 MB
Security
DHCP features
DHCP server
Access Control List (ACL)
SSH/SSL support
Multicast features
Multicast support
Design
Rack mounting
Stackable
Form factor
1U
Product colour
Grey
Performance
Virtual stacking (units)
16
Built-in processor
Processor frequency
800 MHz
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
128 MB
Power
Power supply included
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
247 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
195 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
15 - 95%
Storage relative humidity (H-H)
15 - 90%
Heat dissipation
135 BTU/h
Weight & dimensions
Width
443 mm
Depth
330.2 mm
Height
44.5 mm
Weight
3.95 kg
Logistics data
Harmonized System (HS) code
85176990
