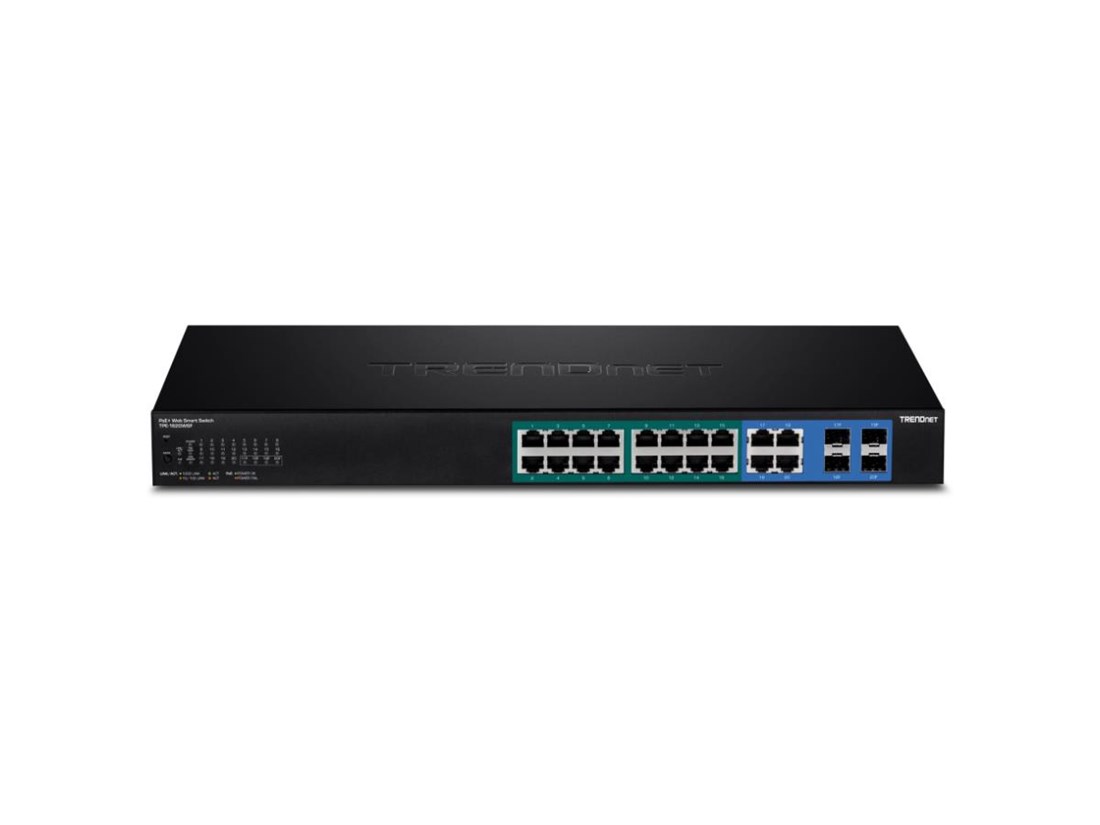

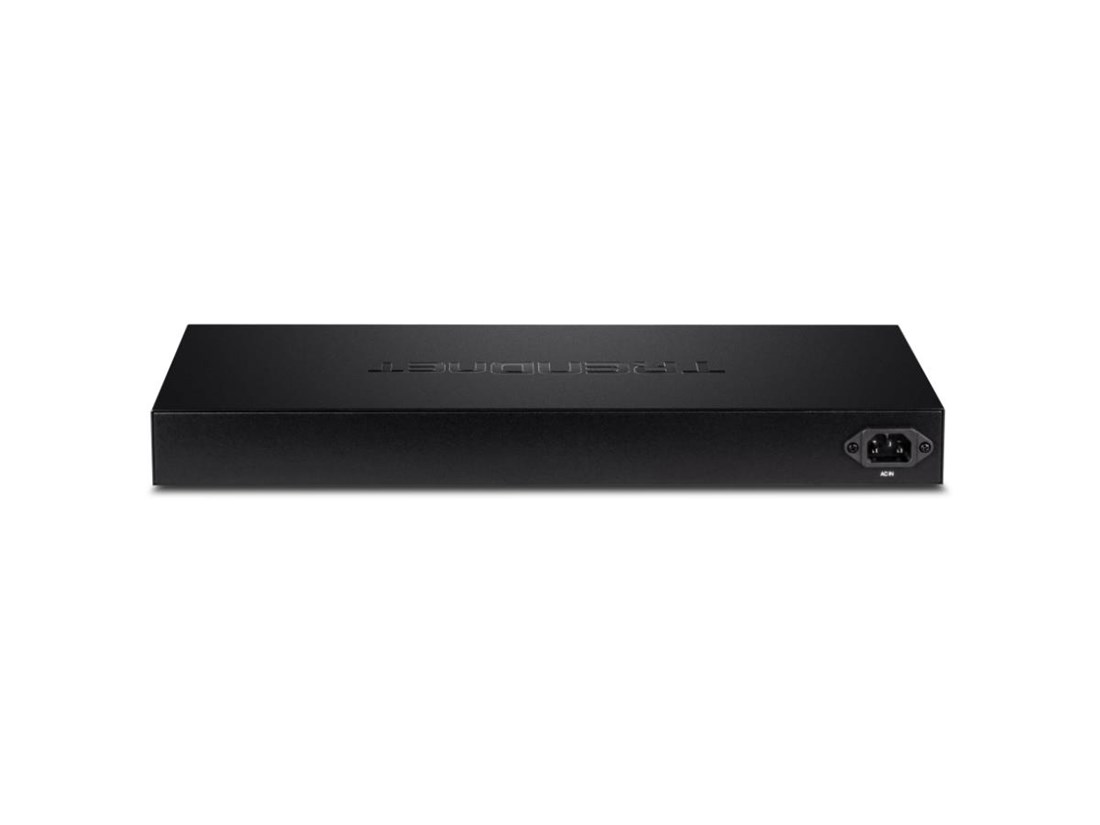

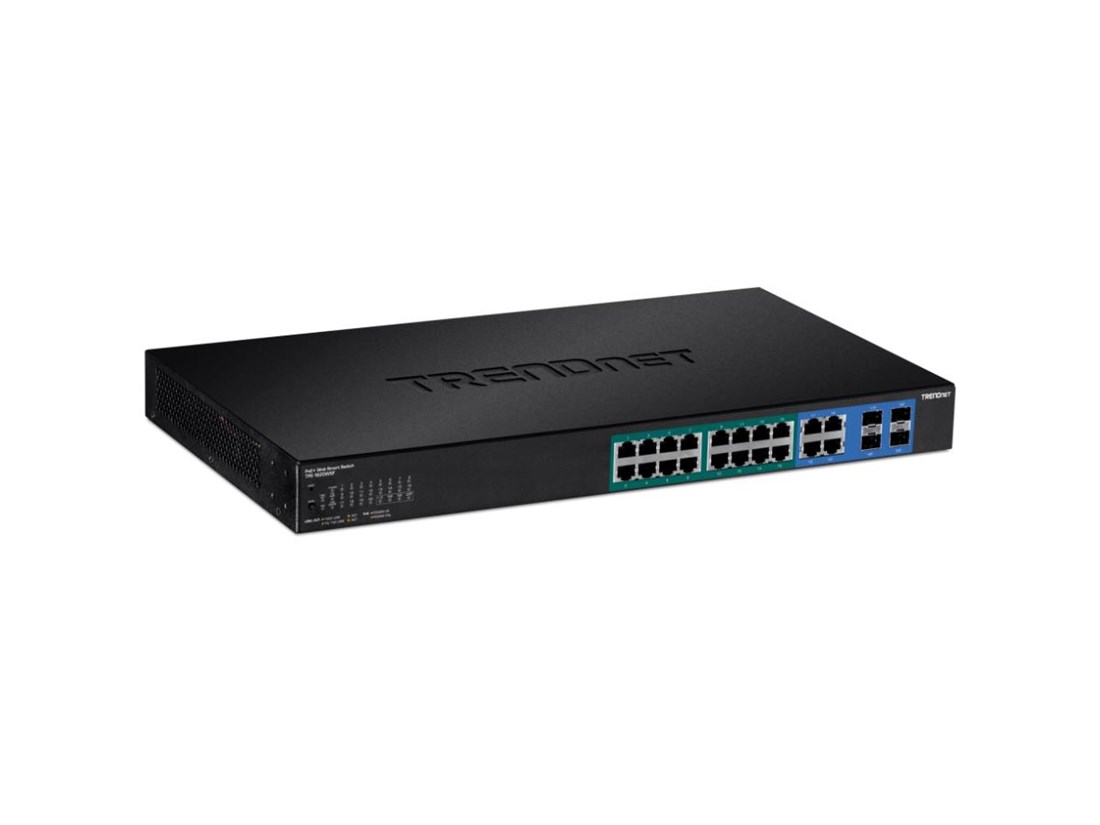

Name: Trendnet TPE-1620WSF network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
SKU: TPE-1620WSF
Price: 611.1 USD
Availability: InStock
Rating: 4.882969013048272

Description

Specification

Reviews

Description

Product Features:

16 x Gigabit PoE+ ports
4 x Shared Gigabit ports (RJ-45 or SFP)
370W PoE power budget
Easy-to-use web-based management interface
Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
IPv4/IPv6 Static Routing support
Bandwidth control per port
Private, Multicast, and Voice VLAN support
Smart Fans
40Gbps switching capacity
IEEE 802.1p QoS with queue scheduling support
Managed L2/L3 Web-based management HTTP/HTTPS (SSL v2/3 TLS), Web-based GUI, SNMP v1/v2c/v3, LLDP, RMON v1
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 20
1000BASE-TX
MAC address table: 16000 entries Switching capacity: 32 Gbit/s
Access Control List (ACL)
1U Rack mounting
Power over Ethernet (PoE)

Trendnet TPE-1620WSF network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Gigabit TPE-1620WSF TRENDNET 20-port Web Smart 370w Poe+ Switch 16 Gigabit Poe+ Ports 4 Shared Gigabit Ports(rj-45 Or Sfp) 370w Poe Budget Managed Poe+ Ethernet Network Switch Lifetime Protection. main Features

Trendnet TPE-1620WSF. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20. Full duplex. MAC address table: 16000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: Terminal block (3-pin). Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specification

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Web-based management

Cloud-managed

System event log

User operation log

MIB support

MIB II

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

SFP28 ports quantity

Power connector

Terminal block (3-pin)

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Copper ethernet cabling technology

1000BASE-TX

Port mirroring

Full duplex

IP routing

Policy-based routing

Flow control support

Link aggregation

Rate limiting

Auto MDI/MDI-X

Ethernet LAN data rates

10,100,480,800,1000 Mbit/s

Auto-negotiation

Active link detection

VLAN support

Virtual LAN features

MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Number of VLANs

296

Data transmission

Switching capacity

32 Gbit/s

Throughput

23.8 Mpps

MAC address table

16000 entries

Static route

Jumbo frames support

Security

DHCP features

DHCP client, DHCP server

Access Control List (ACL)

IGMP snooping

Security algorithms

802.1x RADIUS, SSL/TLS

SSH/SSL support

IP-MAC-Port binding

Password protection

MAC address entries

Dynamic MAC address entries, Static MAC address entries

Multicast features

Multicast support

Protocols

Management protocols

HTTP/HTTPS (SSL v2/3 TLS), Web-based GUI, SNMP v1/v2c/v3, LLDP, RMON v1

Design

Rack mounting

Form factor

Product colour

Black

LED indicators

Certification

CE, FCC, UL

Performance

Mean time between failures (MTBF)

192382 h

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

460 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) type supported

Active PoE

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

370 W

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

250 mm

Depth

44 mm

Height

440 mm

Weight

3.89 kg

Packaging data

Cables included

Quick start guide

Rack mount kit

Logistics data

Harmonized System (HS) code

85176990
