Aruba 3810M 16SFP+ 2-slot Managed L3 None 1U Black
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Reviews
Description
Product Features:
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Console port: RJ-45
- 10G support 100BASE-TX, 1000BASE-T
- MAC address table: 64000 entries Switching capacity: 480 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC

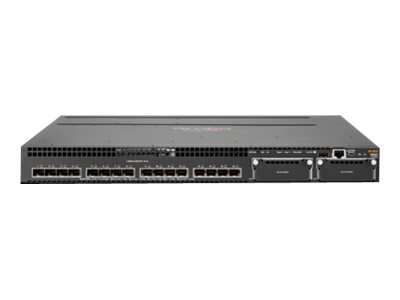

Aruba 3810M 16SFP+ 2-slot Managed L3 None 1U Black
HPE JL075A 3810m 16sfp+ 2-slot Switch - Switch - 16 Ports - Managed - Rack-mountable ( Missing Flex Port Blank).
Aruba 3810M 16SFP+ 2-slot. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: None, Console port: RJ-45. Full duplex. MAC address table: 64000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Rack mounting, Form factor: 1U
Specification
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
None
SFP+ module slots quantity
16
Console port
RJ-45
Network
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x
10G support
Copper ethernet cabling technology
100BASE-TX, 1000BASE-T
Full duplex
IP routing
Link aggregation
Auto MDI/MDI-X
Spanning tree protocol
VLAN support
Data transmission
Switching capacity
480 Gbit/s
Throughput
285.7 Mpps
MAC address table
64000 entries
Latency (1 Gbps)
2.8 µs
Latency (10 Gbps)
1.8 µs
Jumbo frames support
Packet buffer memory
13.5 MB
Security
DHCP features
DHCP server
Access Control List (ACL)
Design
Rack mounting
Stackable
Form factor
1U
Product colour
Black
Performance
Physical stacking (units)
10
Virtual stacking (units)
10
Built-in processor
Processor frequency
1000 MHz
Memory type
DDR3-SDRAM
Internal memory
2048 MB
Power
Power source
AC
Power supply included
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
15 - 95%
Storage relative humidity (H-H)
15 - 90%
Weight & dimensions
Width
442.5 mm
Depth
431.3 mm
Height
43.9 mm
Weight
6.02 kg
Logistics data
Harmonized System (HS) code
85176990
