EZ16-A200-US - Digi Connect EZ 16 Dual Power serial server
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Reviews
Description

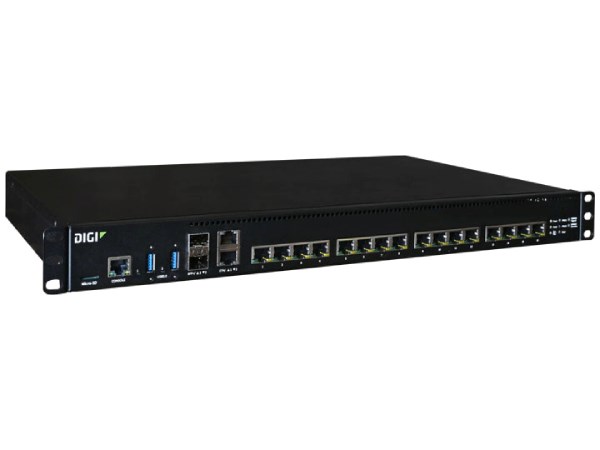

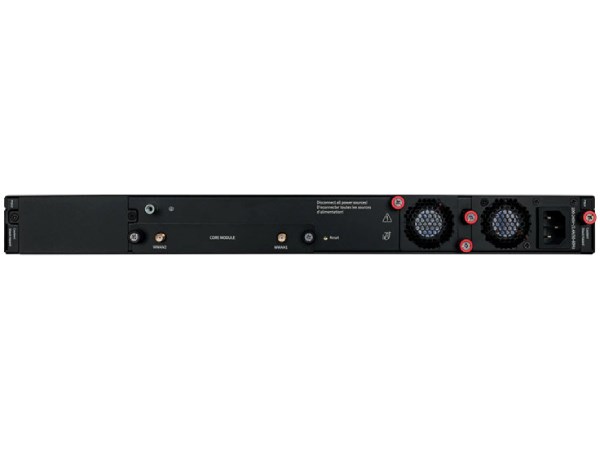

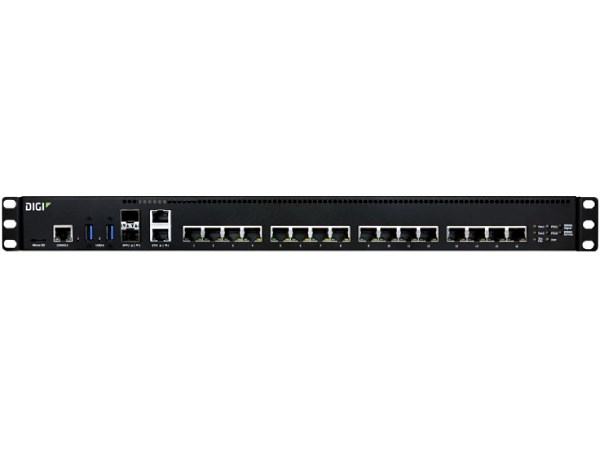

EZ16-A200-US - Digi Connect EZ 16 Dual Power serial server
EZ16-A200-US - Digi Connect Ez 16 Dual Power Serial Server. main Feature
Specification
connections
Sfp+
(2) 10 Gb Capable Sfp+ Sockets
Ethernet
(2) 10/100/1000 Mbps (auto-sensing)
Serial Ports
(16) Rj45 10-pin, Rs-232
Rs-232 / Eia-232 Serial Modes
Signal Support Txd, Rxd, Rts, Cts, Dtr, Dsr, Dcd, Ri Flow Control Options: Xon/off, Cts/rts, Rts-toggle
Console (rj45 10-pin)
Rs-232 Serial Console Port
Usb
(2) Usb 3.1 Gen 1 (type A)
Micro Xsd
Sd/sdhc/sdxc Socket
physical
Dimensions (l X W X H)
25.5 Cm X 44.5 Cm X 4.445 Cm (10.4 In X 17.5 In X 1.75 In)
Package Dimensions
Package Weight
5.2 Kg (11.5 Lb)
Status Leds
- System
Power 1, Power 2, Fan 1, Fan 2, Sys Fan, User, Wwan Signal, Wwan Service
- Per Port
Ethernet, Serial, Console, Usb
Power Input
- Ac
Single Or Dual Ac Input (c13 Connector), Use With Appropriate National Mains Cords
- Dc
Dual Dc Power With Ez-ad00, With Supplied Phoenix Connectors
Power Consumption
- Ac
Single Or Dual Field Replaceable, 100 – 240 Vac, 50 – 60 Hz, 2.4 A Max For Each Power Supply
- Dc
Dual Field Replaceable, 48 Vdc, 2.9 A Max For Each Power Supply
Replaceable Power Supply
Product Supports Redundant Replaceable Power Supplies
approvals
Safety
Iec 62368-1, Iec 60950-1, Cb, En 62311, Ul 62368-1, Ul 60950-1
Emissions / Immunity
Ce, Red, Fcc Part 15, Subpart B, Ices-003, Au/nzs Cispr 32, Cispr 35
software And Management
Remote Management
Digi Remote Manager Or Digi On-prem Manager, Snmp V3 (user Installed/managed), 1-year Lifecycle Assurance With Digi Remote Manager Premier Included
Local Management
Digi Navigator Discovery And Configuration Tool, Web Ui (http/https), Cli (telnet, Ssh)
Management / Troubleshooting Tools
Digi Navigator Discovery And Configuration Tool, Ftp Client, Scp, Protocol Analyzer With Pcap For Wireshark, Event Logging With Syslog And Smtp Client, Ntp/sntp, Nagios, Intelliflow, Iperf, Dynamic Dns, Ping, Traceroute
Memory
2 Gb Ram, 4 Gb Flash
Authentication
Tacacs+, Ldap, Enterprise Radius
