Cisco ASA 5545-X hardware firewall 1U 3 Gbit/s
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Reviews
Description
Product Features:
- 1U Firewall throughput: 3000 Mbit/s
- 427 BTU/h
- Wired
- 12288 MB

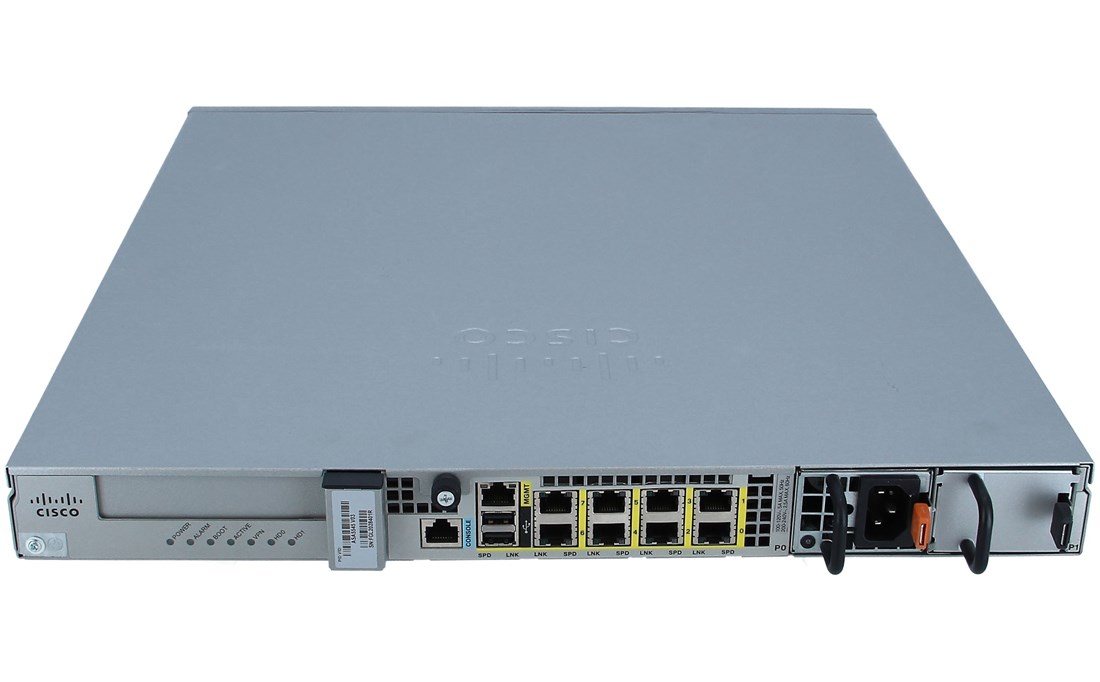

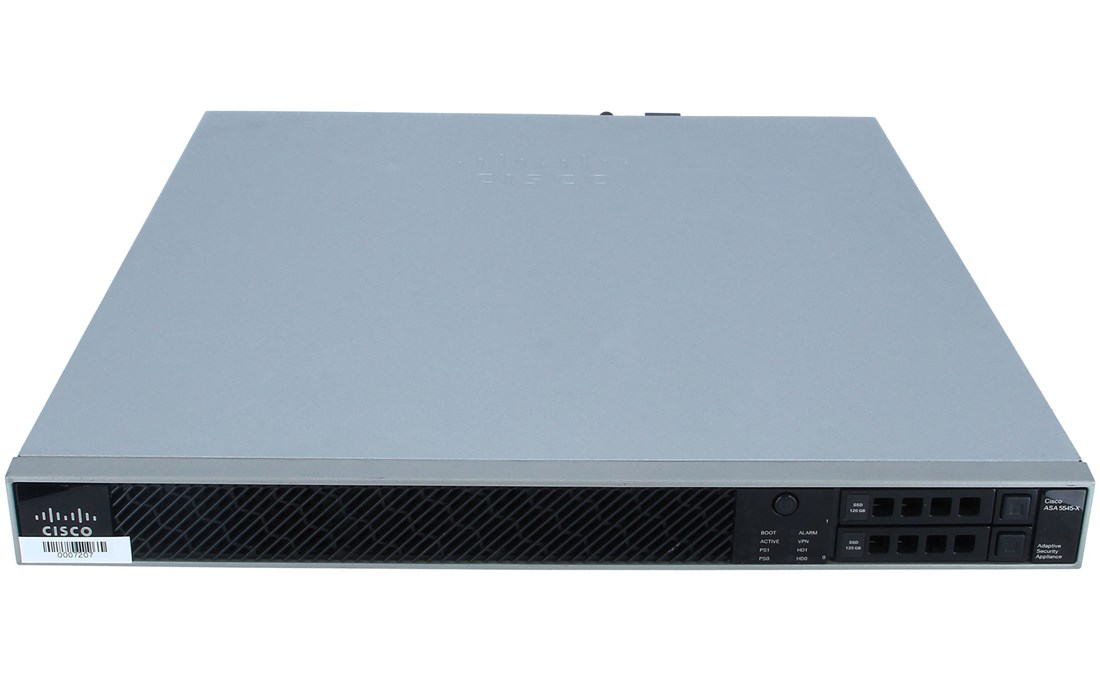

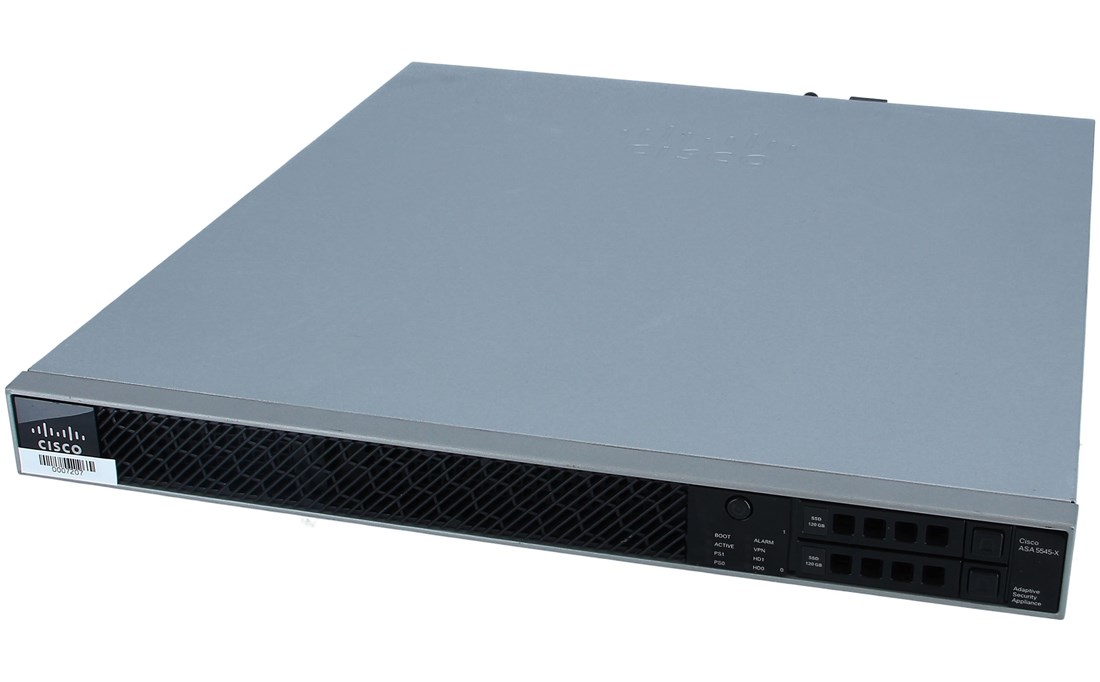

Cisco ASA 5545-X hardware firewall 1U 3 Gbit/s
CISCO - Asa 5545-x Firewall Edition - Security Appliance - 8 Ports - Gige - 1u - Rack-mountable (ASA5545-K9).
Cisco ASA 5545-X. Firewall throughput: 3 Gbit/s, VPN throughput: 0.4 Gbit/s, IPS/IDS throughput: 900 Mbit/s. Heat dissipation: 427 BTU/h, Noise level: 67.9 dB, Certification: CE: EN55022 2006+A1: 2007; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009;EN61000-3-3 2008; .... Connectivity technology: Wired. Internal memory: 12288 MB. Storage media type: SSD, Flash memory: 8192 MB, HDD capacity: 120 GB
Specification
Data transmission
Firewall throughput
3 Gbit/s
VPN throughput
0.4 Gbit/s
IPS/IDS throughput
900 Mbit/s
Mobile VPN IPSec
750
Mobile VPN SSL
2
Maximum firewall connections
750000
Maximum firewall connections per second
30000
Performance
Heat dissipation
427 BTU/h
Concurrent connections
750000
Noise level
67.9 dB
Certification
CE: EN55022 2006+A1: 2007; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009;EN61000-3-3 2008;
FCC:CFR 47, Part 15 Subpart B 2010,ANSI C63.4 2009;
ICES-003 ISSUE 4 FEBRUARY.2004;
VCCI:V-3/2011.04;
C-TICK:AS/NZS CISPR 22,2009
KC:KN22 & KN24
Network
Number of VPN connections
2500
Number of VLANs
300
Ports & interfaces
Connectivity technology
Wired
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
9
Serial ports quantity
1
Memory
Internal memory
12288 MB
Storage
Storage media type
SSD
Flash memory
8192 MB
RAID levels
1
HDD capacity
120 GB
RAID support
Design
Rack mounting
Form factor
1U
Power
AC input voltage
100-240 V
Input current
15 A
Power consumption (typical)
86 W
Peak power
125 W
Number of power supply units
1
Logistics data
Harmonized System (HS) code
85176990
Operational conditions
Operating temperature (T-T)
-5 - 40 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Operating altitude
0 - 3050 m
Non-operating altitude
0 - 4572 m
Weight & dimensions
Dimensions (WxDxH)
429 x 484 x 42.4 mm
Weight
7.63 kg
Other features
Safety
IEC 60950-1: 2005, EN 60950-1:2006+A11: 2009 UL 60950-1:2007; CSA C22.2 No. 60950-1-07
Firewall throughput
3000 Mbit/s
VPN throughput
400 Mbit/s
