Teltonika RUT956A00A00 Model RUT956 Industrial Cellular Router
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Related Products
Reviews
Description

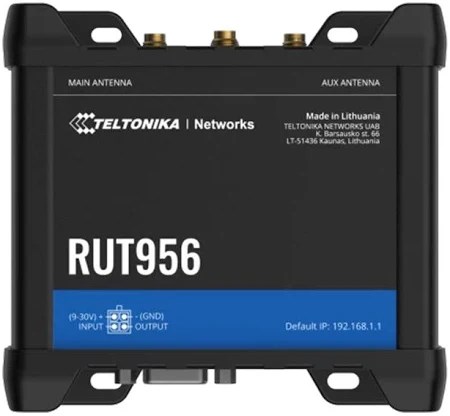

Teltonika RUT956A00A00 Model RUT956 Industrial Cellular Router
Specification
General Information
Product Description
TELTONIKA Rut956 - Wireless Router - Wwan - Wi-fi - 4g, 3g - Din Rail Mountable
Device Type
Wireless Router - Wireless Cellular Modem - 3-port Switch (integrated)
Enclosure Type
Din Rail Mountable
Cellular Protocol
Fdd Lte
Generation
4g, 3g
Cellular Band
Lte B2, Lte B4, Lte B5, Lte B12, Lte B13, Lte B14, Lte B66, Lte B71, Umts B2, Umts B4, Umts B5
Wan Ports Qty
1
Data Link Protocol
Ieee 802.11b, Ieee 802.11g, Ieee 802.11n, Ethernet, Fast Ethernet
Frequency Band
2.4 Ghz
Capacity
simultaneous Connections: 100
network / Transport Protocol
tcp/ip, Udp/ip, Ipv4, Ipv6, Ntp, Dns, Ftp, Arp, Pppoe, Dhcp, Telnet, Ddns, Openvpn, Pptp, L2tpv3, Wireguard
Routing Protocol
static Ip Routing, Bgp, Ospfv2, Rip-1, Rip-2, Nhrp, Vrrp
Platform
Clouds Of Things, Thingworx, Cumulocity, Azure Iot Hub
remote Management Protocol
Icmp, Http, Https, Smtp, Ssh, Ssh-2, Mqtt, Modbus, Snmp 1, Snmp 2, Snmp 3, Tr-069
voip Protocols
H.323, Sip
Features
ussd Support, White List, Black List, Multiple Pdn, Band Management, Auto Apn, Bridge Mode, Access Point Operational Mode, Auto Cipher Modes, Client Separation, Stealth Mode, Captive Portal, Radius Server, Auto-uplink (auto Mdi/mdi-x), Mqtt Support, Wol, Voip Passthrough Support, Ppp, Nat Support, Dhcp Relay, Qos, Sqm, Wmm Support, Load Balancing, Sshfs Support, Psk, Ipsec Nat-t, Ddos Attack Prevention, Port Scan Prevention, Vlan Support, Mobile Quota Control, Web Filtering, Mac Address Filtering, Gre Tunneling, Snmp Trap, Dmvpn, Sstp Client Instance Support, Fota, TELTONIKA Rms, Gps/glonass/galileo/beidou/qzss Support, Ntrip, Passive Poe Supported, Aluminum Housing, Wan Failover
Compliant Standards
Ieee 802.3, Ieee 802.3u, Upnp, Ieee 802.11e
Localization
United States
Technical Information
Device Type
Wireless Router - 3-port Switch (integrated)
Enclosure Type
Din Rail Mountable
Connectivity Technology
Wired, Wireless
Data Link Protocol
Ieee 802.11b, Ieee 802.11g, Ieee 802.11n, Ethernet, Fast Ethernet
Frequency Band
2.4 Ghz
Capacity
simultaneous Connections: 100
network / Transport Protocol
Tcp/ip, Udp/ip, Ipv4, Ipv6, Ntp, Dns, Ftp, Arp, Pppoe, Dhcp, Telnet, Ddns, Openvpn, Pptp, L2tpv3, Wireguard
Routing Protocol
static Ip Routing, Bgp, Ospfv2, Rip-1, Rip-2, Nhrp, Vrrp
remote Management Protocol
Icmp, Http, Https, Smtp, Ssh, Ssh-2, Mqtt, Modbus, Snmp 1, Snmp 2, Snmp 3, Tr-069
Encryption Algorithm
wpa2-enterprise, Peap, Wpa2-psk, Wep, Wpa-eap, Wpa-psk, Aes-ccmp, Tkip, Ssl 3.0, Tls, Des, Rc2, Desx, Cast5, 128-bit Aes-cbc, 192-bit Aes-cbc, 256-bit Aes-cbc, Ikev1, Ikev2
authentication Method
radio Service Set Id (ssid), X.509 Certificates, Radius
Features
ussd Support, White List, Black List, Multiple Pdn, Band Management, Auto Apn, Bridge Mode, Access Point Operational Mode, Auto Cipher Modes, Client Separation, Stealth Mode, Captive Portal, Radius Server, Auto-uplink (auto Mdi/mdi-x), Mqtt Support, Wol, Voip Passthrough Support, Ppp, Nat Support, Dhcp Relay, Qos, Sqm, Wmm Support, Load Balancing, Sshfs Support, Psk, Ipsec Nat-t, Ddos Attack Prevention, Port Scan Prevention, Vlan Support, Mobile Quota Control, Web Filtering, Mac Address Filtering, Gre Tunneling, Snmp Trap, Dmvpn, Sstp Client Instance Support, Fota, TELTONIKA Rms, Gps/glonass/galileo/beidou/qzss Support, Ntrip, Passive Poe Supported, Aluminum Housing, Wan Failover
Compliant Standards
Ieee 802.3, Ieee 802.3u, Upnp, Ieee 802.11e, Ip30, Red, Ukca, Cb, En 301 489-1 V2.2.3, Etsi En 301 489-17 V3.2.4, En 301 489-19 V2.2.0, En 301 489-52 V1.2.0, En 55032:2015+a1:2020, En 55035:2017+a11:2020, En 61000-3-3:2013+a1:2019, En Iec 61000-3-2:2019, En 61000-4-2:2009, En 61000-4-3:2020, En 61000-4-4:2012, En 61000-4-5:2014+a1:2017, En 61000-4-6:2009, En Iec 61000-4-11:2020, En 300 328 V2.2.2, En 301 908-1 V13.1.1, En 301 908-2 V13.1.1, En 301 908-13 V13.1.1, En 303 413 V1.1.1, En Iec 62311:2020, As/nzs 60950-1:2015, Iec 62368-1:2018, En Iec 62368-1:2020+a11:2020
Processor
1 X Mediatek Mips 24kc 580 Mhz
Ram
128 Mb Ddr2 Sdram
Flash Memory
16 Mb
Built-in Devices
Gnss Receiver
Status Indicators
Connection Status, Signal Strength, Lan, Power
Communications
Type
Wireless Cellular Modem
Cellular Protocol
Fdd Lte
Generation
4g, 3g
Cellular Band
Lte B2, Lte B4, Lte B5, Lte B12, Lte B13, Lte B14, Lte B66, Lte B71, Umts B2, Umts B4, Umts B5
Max Transfer Rate
150 Mbps
Ip Telephony
Voip Protocols
H.323, Sip
Internet Of Things (iot)
Internet Of Things (iot) Compatible
Platform
clouds Of Things, Thingworx, Cumulocity, Azure Iot Hub
Expansion / Connectivity
Interfaces
Wan: 1 X 10base-t/100base-tx - Rj-45 ¦ Lan: 3 X 10base-t/100base-tx - Rj-45 ¦ Serial: 1 X Rs-232 - 9 Pin D-sub (db-9) ¦ Serial: 1 X Rs-485 ¦ Usb 2.0: 1 X 4 Pin Usb Type A ¦ Antenna: 2 X Sma - Lte ¦ Antenna: 2 X Rp-sma - Wi-fi ¦ Antenna: 1 X Sma - Gnss Antenna ¦ Input / Output
Expansion Slots
2 (total) / 2 (free) X Mini-sim
Antenna
Antenna
External Detachable
Antenna Qty
5
Power
Power Device
External Power Adapter - 9 Watt
Miscellaneous
Included Accessories
2 X Lte Antennas, 2 X Wi-fi Antennas, Gnss Antenna, Rs-485 Connector, I/o Connector, Sim Card Adapter Kit
Cables Included
1 X Network Cable - 5 Ft
Localization
United States
Software / System Requirements
Os Provided
Rutos
Dimensions & Weight
Width
4.3 In
Depth
3.9 In
Height
2 In
Weight
10.12 Oz
