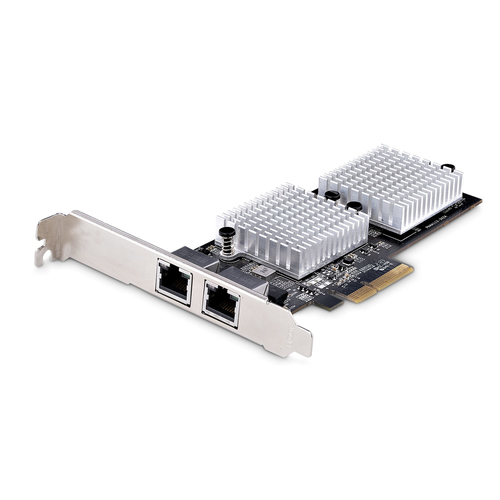

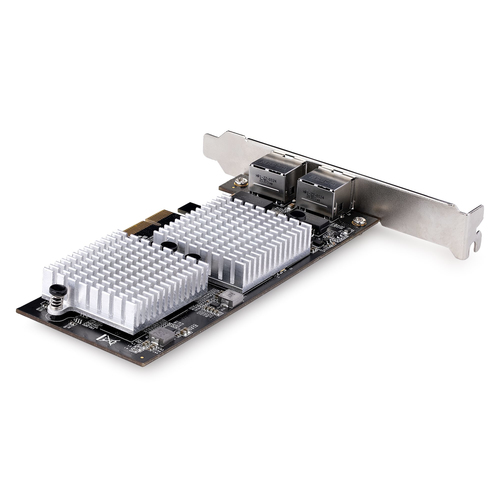

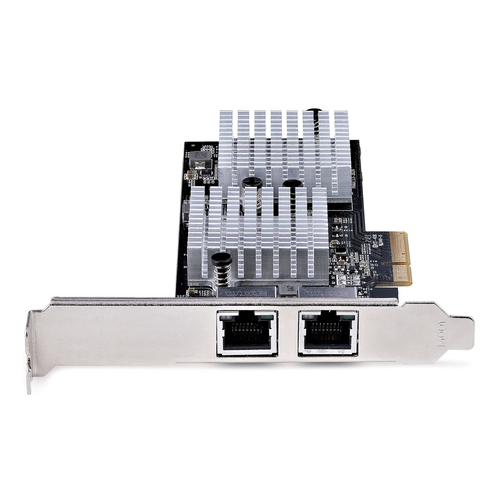

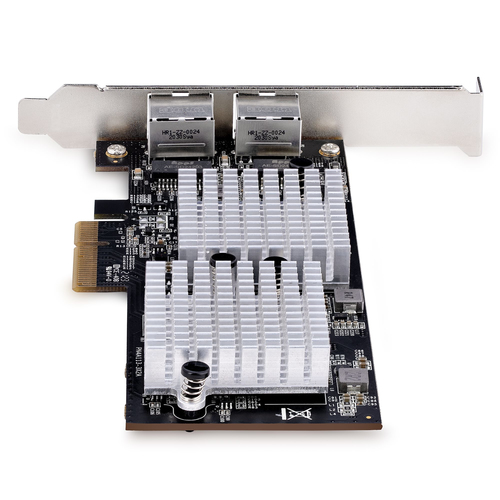

StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Media
Related Products
Reviews
Description
Product Features:
- DUAL PORT 10G NETWORK ADAPTER FOR PCs: This 2-port 10 GbE-capable PCIe network adapter card enables dual or redundant high-speed network data transmission for workstations/servers leveraging existing Cat5e, Cat6, or Cat6a cable infrastructure up to 100m
- SPECIFICATIONS: 2x RJ45 Ports, Six-Speed NIC 10/5/2.5/1Gbps and 100/10Mbps, 10GBASE-T and NBASE-T (2.5GBASE-T and 5GBASE-T), PCIe 3.0 x4, Marvell AQC113CS, 16K Jumbo Frames, VLAN Tagging, WoL, PXE boot, EEE, Secure Boot

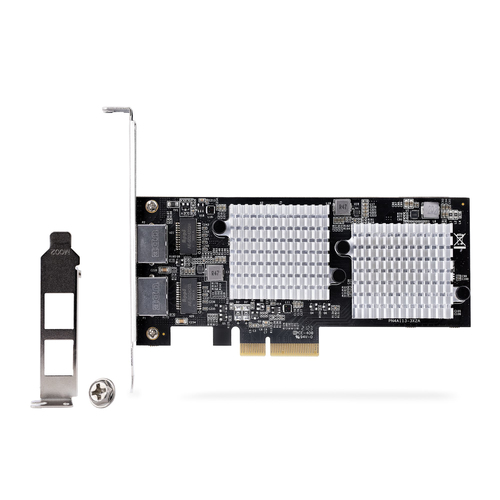

- COMPATIBILITY: Network card for PC is compatible with Windows, Windows Server, and Linux; Six network speeds and included low-profile bracket widen the compatibility of the PCIe network card with full-height and small form factor (SFF) systems
- MULTI-GIGABIT CONNECTIVITY: Network Interface Card supports auto negotiation; Supports 2.5/5Gbps speeds on Cat5e cabling and 10Gbps on Cat6/6a; NBase-T Ethernet Network Card features IP/TCP/UDP checksum offload, secure boot, PTP, and AVB
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 10GbE network card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
- Wired
- PCI Express 3.0 Ethernet
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 10000 Mbit/s 10GBase-T
- Internal Component for: PC/Server Chipset: Marvell AQC113CS
StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
STARTECH ST10GSPEXNDP2 2-port 10gbps Pcie Network Adapter Card, Network Card For Pc/server, Pcie Ethernet Card W/jumbo Frame.
StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black
Specification
Ports & interfaces
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
2
PCI version
3.0
PCI Card form factor
Full-height (low-profile)
Network
Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000,2500,5000,10000 Mbit/s
Cabling technology
10GBase-T
Wake-on-LAN ready
Auto MDIX IEEE
Full duplex
Jumbo frames support
Jumbo frames
16000
VLAN tagging
Maximum operating distance
100 m
Design
Component for
PC/Server
Product colour
Black
Internal
Chipset
Marvell AQC113CS
LED indicators
Activity, Link, Status
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Server operating systems supported
Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Sustainability
Sustainability compliance
Sustainability certificates
CE
Weight & dimensions
Width
20 mm
Depth
145 mm
Height
65 mm
Weight
116 g
Packaging data
Package width
145 mm
Package depth
215 mm
Package height
35 mm
Package weight
208 g
Packaging content
Mounting brackets included
Quick installation guide
Logistics data
Master (outer) case width
440 mm
Master (outer) case length
370 mm
Master (outer) case height
315 mm
Products per master (outer) case
40 pc(s)
