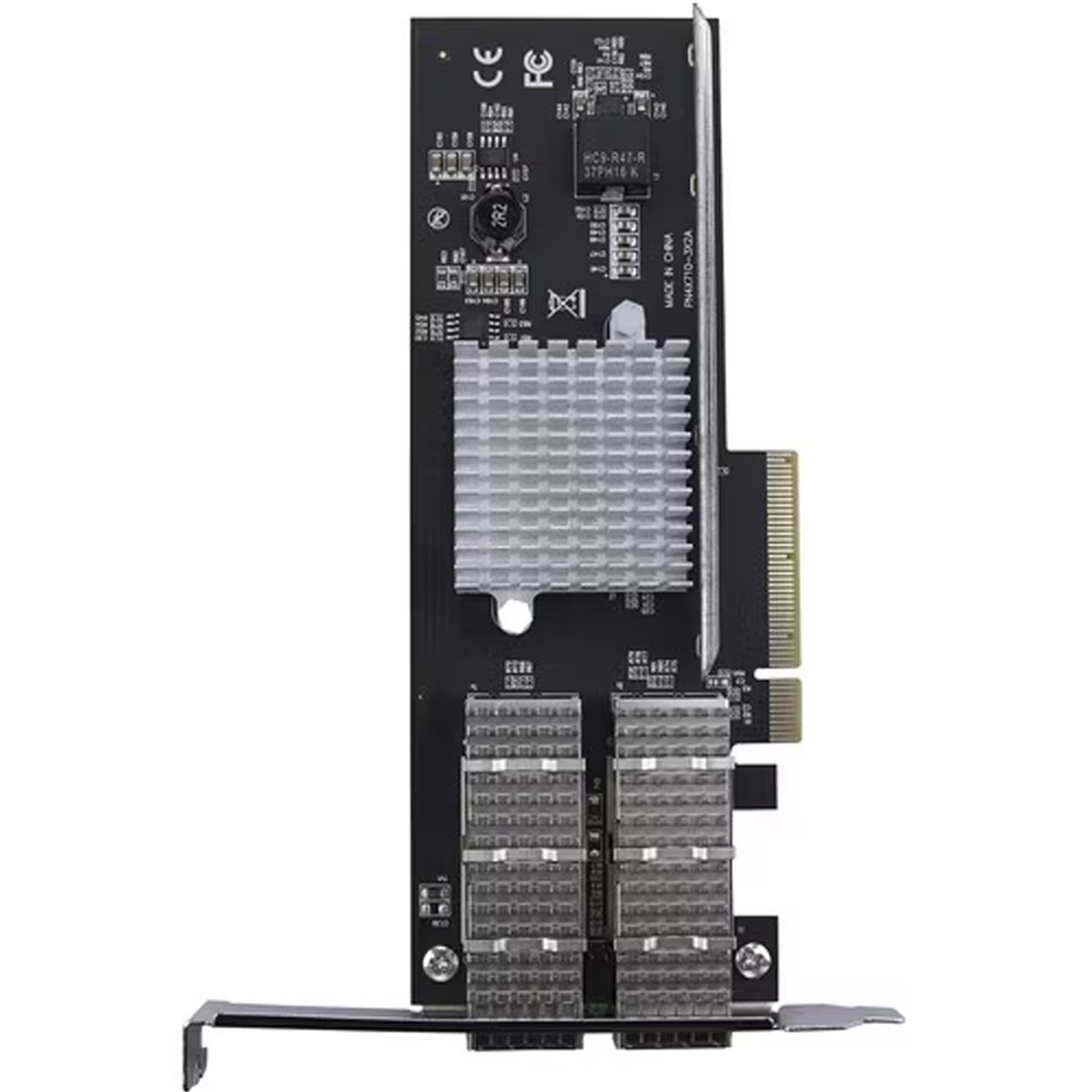

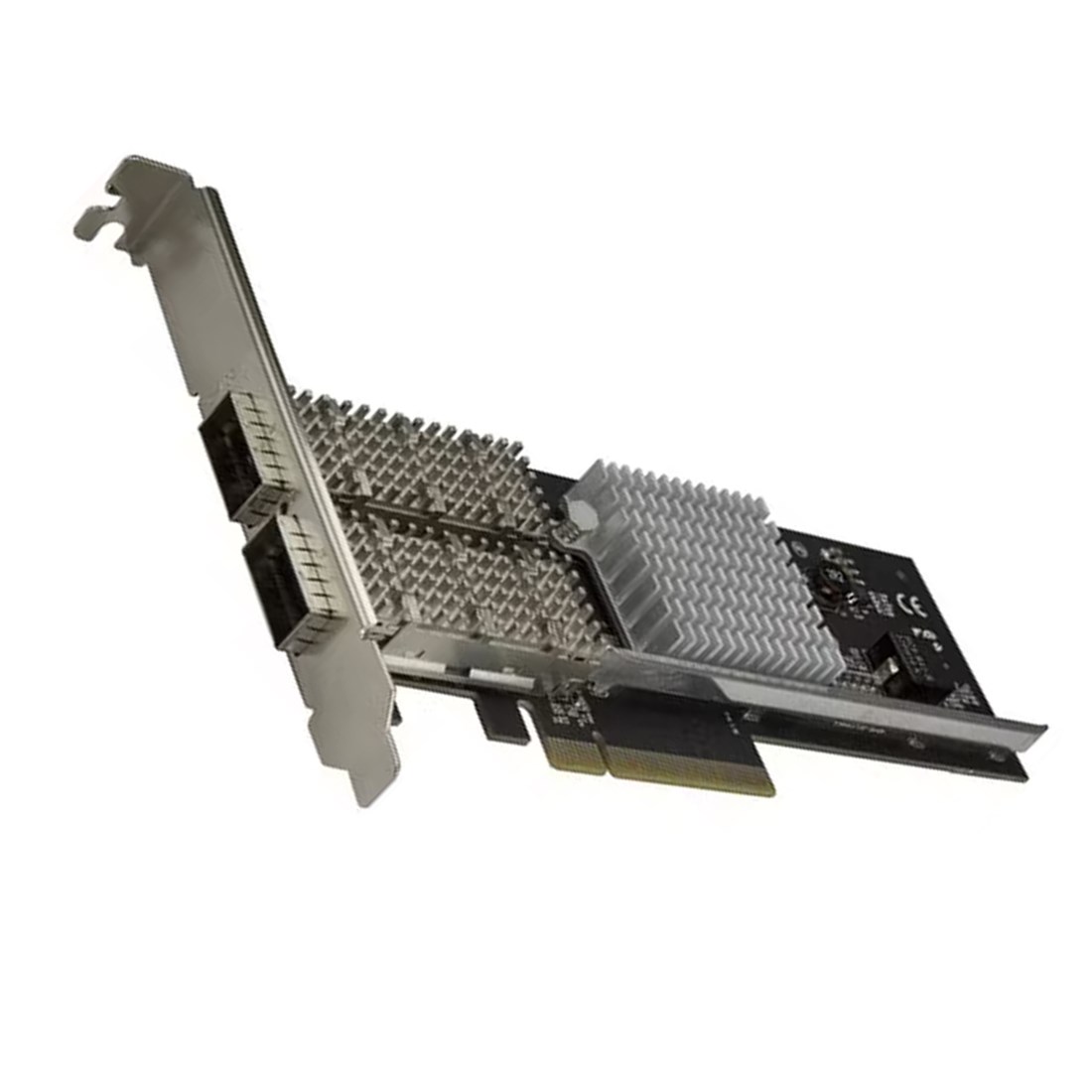

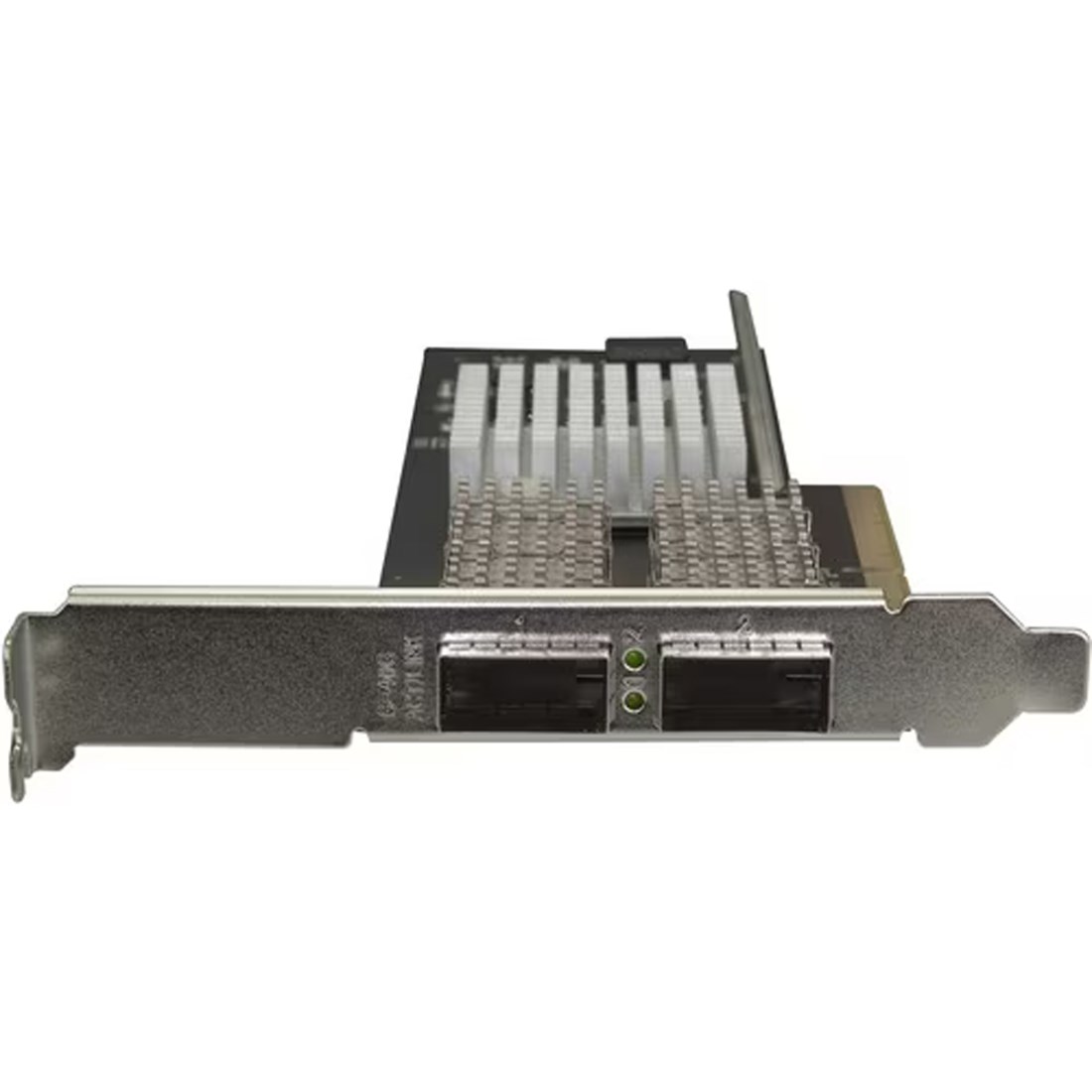

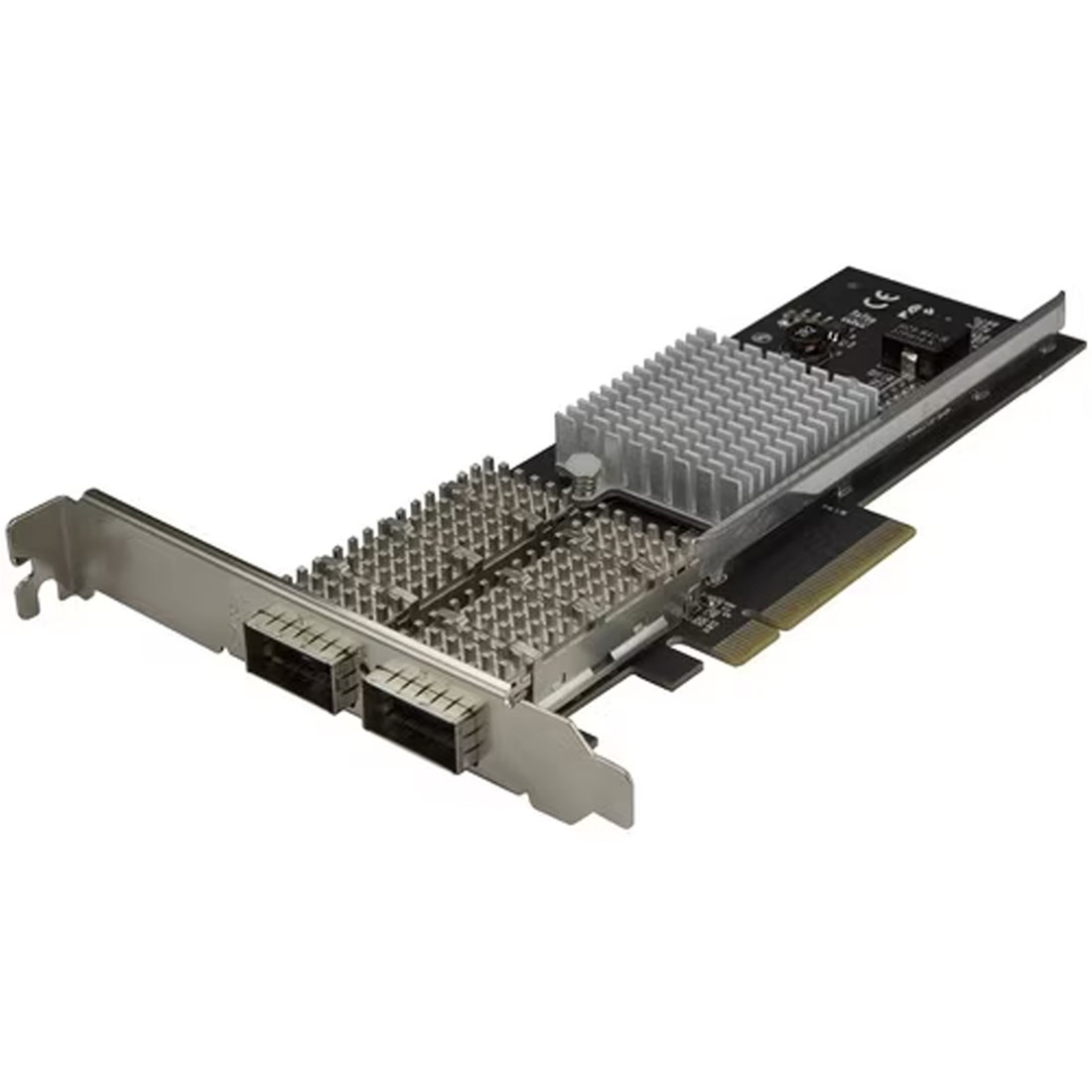

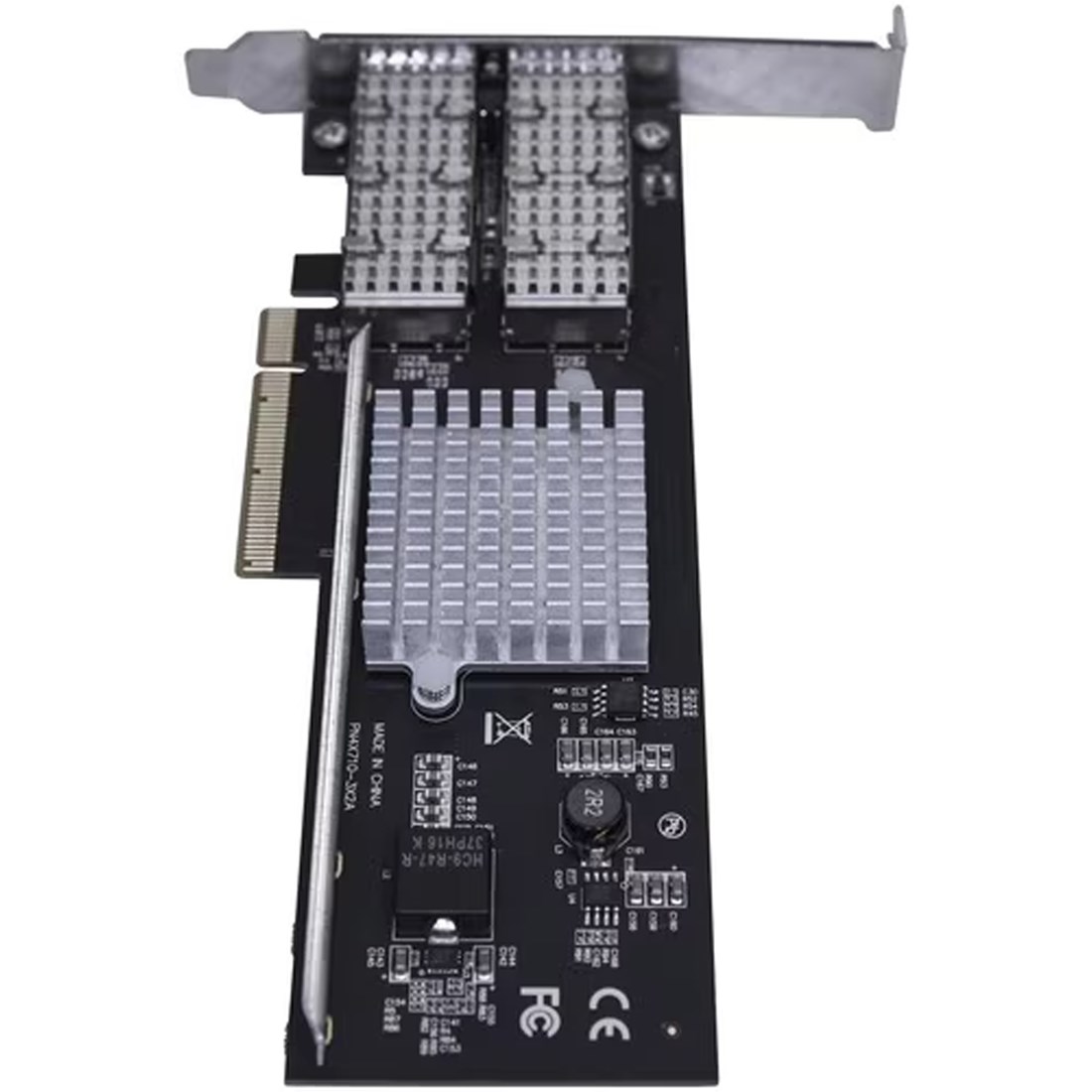

StarTech.com Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant

Name: StarTech.com Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant
Brand: StarTech.com
SKU: PEX40GQSFDPI
Price: 756 USD
Availability: InStock
Rating: 4.728725384817631

Product Name: Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant

Condition: New

Brand:StarTech.com

Part Number (MPN): PEX40GQSFDPI

GTIN (EAN/UPC): 0065030872676

Category: NETWORK ADAPTER > 2 PORT

$756

Qty:

Description

Specification

Media

Reviews

Description

Product Features:

DUAL QSFP+ NETWORK CARD: Two port 40GbE converged network adapter for redundancy or can be aggregated for demanding applications; Data Center Bridging (DCB), virtualization & iSCSI offload support
TECH SPECS: 2x 40 Gbps Open QSFP+ Ports
MSA Compliant
Intel XL710 Chip
MMF & SMF Fiber Support
PCIe 3.0 x8
Wired
PCI Express 3.0 Fiber
40000 Mbit/s
Internal Component for: PC/Server Chipset: Intel - XL710-BM2

StarTech.com Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant

STARTECH PEX40GQSFDPI Dual Port 40g Qsfp+ Network Card Intel Xl710 Open Qsfp+ Converged Adapter Pcie 40 Gigabit Ethernet Server Nic 40gbe Fiber Optic Lan Card Technical Specifications Chipset Manufacturer Intel Chipset Model Xl710-bm2 Host Interface Pci Express X8 Total Number Of Ports 2 Expansion Slot Type Qsfp+ Media Type Supported Optical Fiber Network Technology 40gbase-lr4 40gbase-sr4

StarTech.com Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 40000 Mbit/s. Product colour: Black

Specification

Ports & interfaces

Connectivity technology

Wired

Host interface

PCI Express

Interface

Fiber

Fiber ports quantity

Fiber optic connector

QSFP+

PCI version

3.0

Network

Maximum data transfer rate

40000 Mbit/s

Networking standards

IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3x

Ethernet LAN

Fiber ethernet cabling technology

40GBASE-LR4, 40GBASE-SR4

Full duplex

Jumbo frames support

Jumbo frames

9000

VLAN tagging

Design

Component for

PC/Server

Product colour

Black

Internal

Chipset

Intel - XL710-BM2

LED indicators

Activity, Link

System requirements

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Linux operating systems supported

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)

0 - 57 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Sustainability

Sustainability compliance

Sustainability certificates

CE, RoHS

Weight & dimensions

Width

121 mm

Depth

181 mm

Height

21 mm

Weight

127 g

Packaging data

Low-profile bracket

Package width

145 mm

Package depth

207 mm

Package height

40 mm

Package weight

212 g

Logistics data

Harmonized System (HS) code

85176990

Master (outer) case width

420 mm

Master (outer) case length

440 mm

Master (outer) case height

320 mm

Products per master (outer) case

40 pc(s)

Other features

Quick start guide

Flow control support

Media

PEX40GQSFDPI PEX40GQSFDPI User Manual

PEX40GQSFDPI PEX40GQSFDPI Product Brochure
