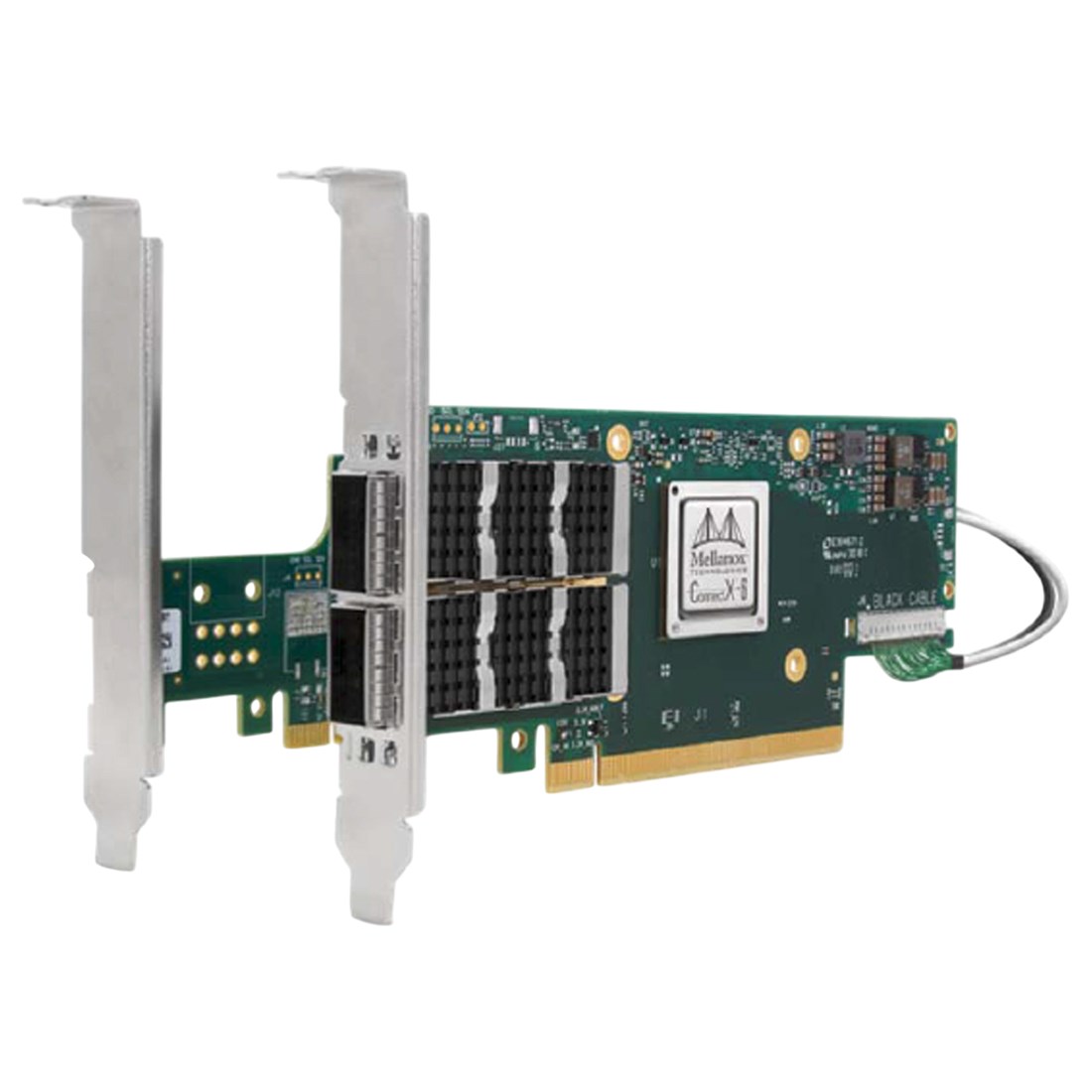

MELLANOX MCX614106A-VCAT ConnectX-6 EN adapter card 200GbE Dual-port QSFP56 Socket Direct 2x PCIe3.0 x16 Full-Height Bracket (Auxiliary card Inclouded)
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Related Products
Reviews
Description
MELLANOX MCX614106A-VCAT ConnectX-6 EN adapter card 200GbE Dual-port QSFP56 Socket Direct 2x PCIe3.0 x16 Full-Height Bracket (Auxiliary card Inclouded)
MELLANOX MCX614106A-VCAT Connectx-6 En Adapter Card 200gbe Dual-port Qsfp56 Socket Direct 2x Pcie3.0 X16 Full-height Bracket (auxiliary Card Inclouded) Physical
Specification
General
Low Profile Adapter Card Size
6.6 In. X 2.71 In. (167.65mm X 68.90mm)
Auxiliary Pcie Connection Card Size
5.09 In. X 2.32 In. (129.30mm X 59.00mm) Two Cabline Ca-ii Plus Harnesses (white And Black) Length: 35cm
Connector
Dual Qsfp56 Ethernet (copper And Optical)
Ethernet
200gbase-cr4, 200gbase-kr4, 200gbase-sr4,100gbase-cr2,100gbase-cr4, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-kx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr
Data Rate
1/10/25/40/50/100/200 Gb/s
Gen3
Serdes 8.0gt/s, X16 Lanes (2.0 And 1.1 Compatible)
Voltage
3.3aux
Power
31.4w
Cable
Passive Cables
Maximum Current
100ma
Maximum Power Available Through Qsfp56 Port
5w
Typical Power
3.0w
Maximum Power
4.0w
Temperature
- Operational
0 Degree Centigrade To 55 Degree Centigrade
- Non-operational
-40 Degree Centigrade To 70 Degree Centigrade
Humidity
Operational
10 Percent To 85 Percent Relative Humidity
Non-operational
10 Percent To 90 Percent Relative Humidity
Altitude (operational)
3050m
Safety
Cb / Ctuvus / Ce
Emc
Ce / Fcc / Vcci / Ices / Rcm / Kc
Rohs
Rohs Compliant
