Cisco WS-X6908-10G-2TXL network switch module
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Reviews
Description
Product Features:
- Full duplex
- X2
- Access Control List (ACL)
- Quality of Service (QoS) support
- 603 W

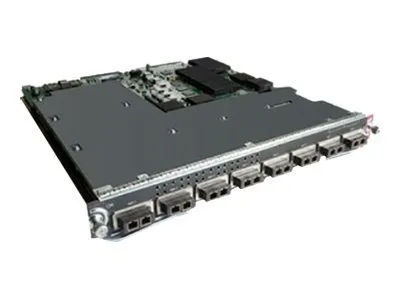

Cisco WS-X6908-10G-2TXL network switch module
CISCO WS-X6908-10G-2TXL Catalyst 6900 Series 8-port 10 Gigabit Ethernet Fiber Module With Dfc4xl Expansion Module 8 Ports.
Cisco WS-X6908-10G-2TXL. Fiber optic connector: X2. MAC address table: 128000 entries, Switching capacity: 80 Gbit/s, Forwarding rate: 60 Mpps. Buffer size per port: 256 MB, Compatibility: Cisco Catalyst 6900. Management platform: ETHERLIKE-MIB (RFC 1643), IF-MIB (RFC 1573), Bridge MIB (RFC 1493), CISCO-STACK-MIB,.... Power consumption (typical): 603 W
Specification
Network
Full duplex
Jumbo frames support
Optical fiber
Fiber optic connector
X2
Data transmission
MAC address table
128000 entries
Switching capacity
80 Gbit/s
Forwarding rate
60 Mpps
Number of VLANs
4000
Number of multicast groups
256000
Ports & interfaces
Fiber ports quantity
8
Performance
Buffer size per port
256 MB
Compatibility
Cisco Catalyst 6900
Management features
Quality of Service (QoS) support
Management platform
ETHERLIKE-MIB (RFC 1643), IF-MIB (RFC 1573), Bridge MIB (RFC 1493), CISCO-STACK-MIB, CISCO-VTP-MIB, CISCO-CDP-MIB, RMON MIB (RFC 1757), CISCO-PAGP-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-VLAN-BRIDGE-MIB, CISCO-VLAN-MEMBERSHIP-MIB, ENTITY-MIB (RFC 2037), HC-RMON, RFC1213-MIB (MIB-II), SMON-MIB
Access Control List (ACL)
Power
Power consumption (typical)
603 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
10 - 90%
Operating altitude
-150 - 2000 m
Certificates
Safety
UL 60950-1, CAN/CSA C22.2 No. 60950, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Electromagnetic compatibility
FCC Part 15 (CFR 47) Class A, ICES-003 Class A, VCCI Class A, EN55022 Class A, EN55024, CISPR24, CISPR 22 Class A, AS/NZS CISPR 22 Class A, ETS 300 386, KN 22 Class A, EN61000-3-2, EN61000-3-3, CNS13438 Class A
Weight & dimensions
Dimensions (WxDxH)
366 x 406 x 44 mm
Weight
5.71 kg
