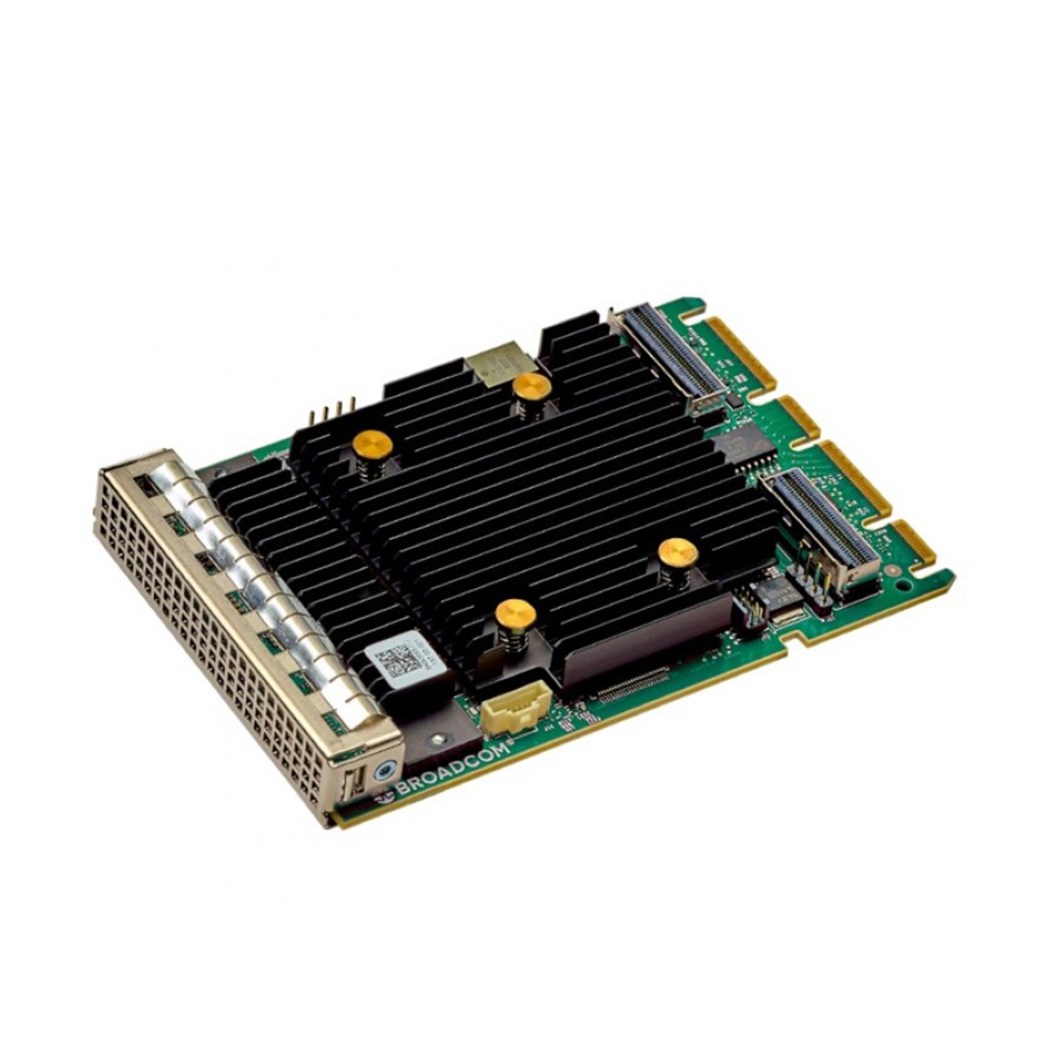

Name: Broadcom SAS9562-16I 9562-16i 16-Port Internal 12Gbs TriMode SATA+SAS+PCIe Raid Controller
Brand: Broadcom
SKU: SAS9562-16I
Price: 1914 USD
Availability: InStock
Rating: 4.683847387604446

Description

Specification

Reviews

Description

Broadcom SAS9562-16I 9562-16i 16-Port Internal 12Gbs TriMode SATA+SAS+PCIe Raid Controller

Overview The 16-port Ocp 3.0 Sff Tri-mode 9562-16i Nvme/sas/sata Raid Adapter Enables More Flexibility When Integrating Storage Into The Server the Ocp Raid Adapter Enables The Operation Of Nvme, Sas Or Sata Devices In A Single Drive Bay. By Using An Ocp Slot For Storage, Users Can Free Up A Standard Pcie Adapter Slot For Other Uses. Connects Up To 1024 Sas/sata Devices Or 32 Nvme Devices Provides Maximum Connectivity And Performance For High-end Servers And Applications Support Critical Applications With The Bandwidth Of Pcie 4.0 Connectivity Universal Bay Management (ubm) Ready Sff-9402 Compliant Connector Pinout

Specification

Specifications

Ports

16 Internal

I/o Processor

Sas3916

Form Factor

Ocp Nic 3.0 Sff

Storage Interface Connectors

Two Sff-8654 X8 (vertical)

Host Interface

X8 Pcie 4.0

Storage Interface

Sas, Sata, And Pcie (nvme)

Cache Memory

8 Gb, 2666 Mt/s, Ddr4 Sdram

Cache Protection

Super Capacitor

Cvpm05 Module

Mtbf

>3,000,000 Hours At 40°c

Ocp Thermal Tier

Tier 5

Operating Temperature

0°c To 55°c

Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd

Physical Dimensions

115.00 (+/-0.13) Mm X 76.00 (+/-0.13) Mm

Raid Levels

0, 1, 10, 5, 50, 6, 60

Typical Power

13w
