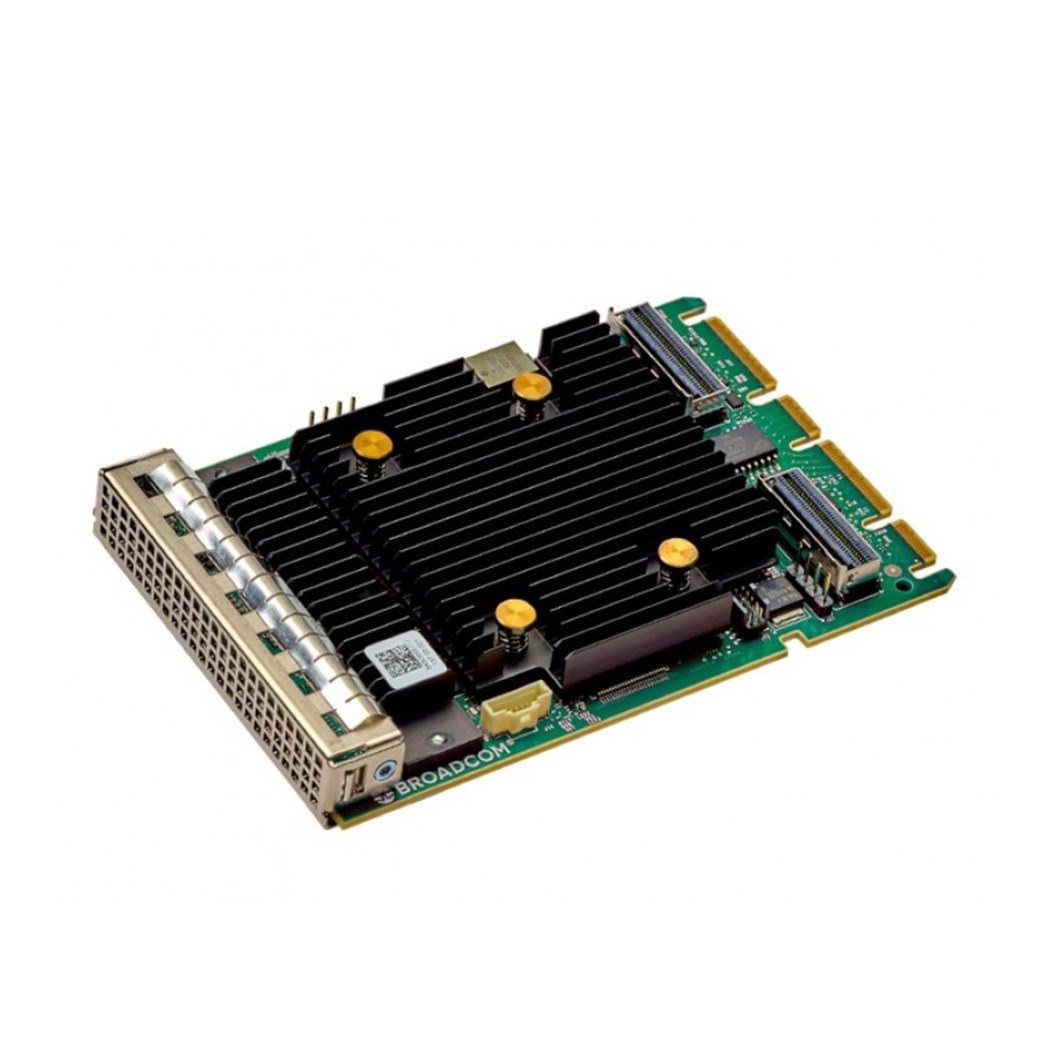

Broadcom 9562-16i 16-Port Internal 12Gbs TriMode SATA+SAS+PCIe Raid Controller.
Expert team support
Bulk InquiryWe accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Description
Specification
Related Products
Reviews
Description
Broadcom 9562-16i 16-Port Internal 12Gbs TriMode SATA+SAS+PCIe Raid Controller.
BROADCOM 9562-16I 16-port Internal 12gb/s Trimode Sata+sas+pcie Raid Controller.
Specification
General
Part Number
9562-16I
Manufacturer
BROADCOM
Technical Information
Brackets
Internal Lock
Cache Memory
8gb
Cache Protection
Cachevault Cvpm05
Connectors
2x8 Sff-8654 (vertical)
Data Transfer Rates
12gb/s Sas And 16gt/s Pcie Gen4 (nvme) Compliant
Devices Supported
Sas/sata: 1024, Nvme: 32
Generation
12 Gb/s
Host Bus Type
X8 Lane Pci Express 4.0
I/o Processor / Sas Controller
Sas3916 12gb/s Sas Tri-mode Raid-on-chip (roc)
Internal Ports
16
Management Software
Lsi Storage Authority (lsa), Storcli (command-line Interface), Hii (uefi Human Interface Infrastructure)
Mtbf
>3,000,000 Hours At 40°c
Ocp Thermal Tier
Tier 5
Operating Temperature°c
0°c To 55°c
Os
Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd
Raid Levels
0, 1, 10, 5, 50, 6, 60
Typical Power
13w
Physical Characteristics
Dimensions
115.00 (+/-0.13) Mm X 76.00 (+/-0.13) Mm
